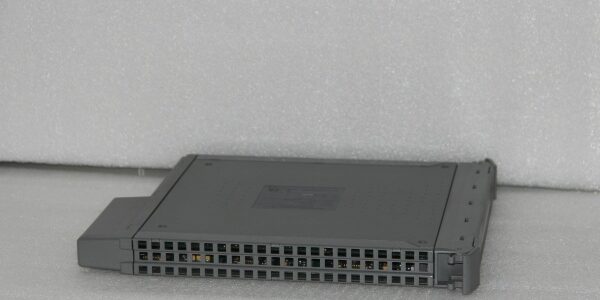

Component Snapshot At-a-Glance

• Model: T8431; coated harsh environment variant T8431C / T8431CX
• Alt. P/N: No cross-compatible non-T8431 drop-in substitutes
• Product Series: ICS Triplex Trusted 8000 TMR Safety Instrumented System
• Hardware Type: Hot-swappable triple redundant analog input rack card
• Key Feature: 40 single-ended triplicated input channels with full 2oo3 hardware voting per signal
• Primary Field Use: Capture safety-critical 4–20mA / 0–6VDC pressure, temperature, flow, level transmitter signals for ESD and burner management SIS logic.

Hard-Numbers: Technical Specifications

• Protocol Support: Trusted proprietary TMR backplane bus; compatible with T8110, T8151 Trusted CPUs
• Port Count: 40 field analog input terminals; triple isolated backplane edge connector; front panel per-channel fault LEDs
• Baud/Data Rate: Global full rack scan cycle 0.5ms; per-channel configurable digital filter (50Hz / 60Hz / fast response)
• Operating Temperature: -20°C to +60°C full measurement accuracy; T8431C rated -40°C to +70°C
• Isolation Rating: 2500VAC opto-isolation between field wiring and TMR backplane logic slices
• Power Draw: 16W maximum full channel load; nominal 24VDC rack supply
• Input Signal Ranges: 0–22mA (4–20mA HART compatible), 0–6VDC; 250Ω input impedance per channel
• Measurement Resolution: 3.9µA current step; ±1% full scale static accuracy
• Safety Rating: IEC 61508 SIL3 certified; Class I Div 2 / ATEX Zone 2 non-incendive approval

The Real-World Problem It Solves

Low-channel count TMR AI modules force stacking multiple cards for large safety loops, eating valuable rack space and multiplying wiring terminations that fail under plant vibration. Single-slice non-triplicated input hardware creates single-point signal loss that can trigger unplanned ESD trips.

• Where you’ll typically find it:
  • Refinery crude unit and hydrocracker SIS racks monitoring high-pressure vessel safety transmitters
  • Combined-cycle power plant burner management safety cabinets for furnace temperature and gas pressure inputs
  • Offshore platform hazardous zone ESD control racks requiring conformal coated T8431C variantsConsolidating 40 safety analog signals onto one hot-swappable SIL3 TMR card cuts spare part inventory and eliminates single-slice measurement failure risks.

Hardware Architecture & Under-the-Hood Logic

This card contains three fully independent identical signal processing slices on a single PCB, each sampling every field channel simultaneously; voting logic runs on dedicated onboard hardware separate from the Trusted rack CPU.

1. Rack 24VDC power splits to three isolated power rails, one dedicated to each TMR slice to eliminate cross-slice electrical interference.
2. Each of the 40 field analog signals feeds three parallel anti-aliasing filters and surge TVS protection circuits before reaching independent ADCs per slice.
3. Three matched ADC chips sample the same analog signal at identical intervals; hardware comparator executes 2-out-of-3 voting to discard outlier faulty readings.
4. Continuous slice cross-check runs every scan cycle; any discrepancy between slices latches a fault flag and illuminates front panel FAULT LED without dropping valid voted process values.
5. Voted digital measurement data transmits over isolated backplane bus to Trusted CPU; open circuit, short circuit, overrange faults logged with millisecond SOE timestamps.
6. Front panel LED bank provides per-channel local diagnostics without pulling engineering laptop software; T8431C full acrylic coating blocks salt fog and oil mist corrosion.

Field Service Pitfalls: What Rookies Get Wrong

Double-End Grounding Transmitter Shield Cables

New techs ground shield braid at both the T8431 terminal block and remote transmitter junction boxes. Ground loop current skews 4–20mA readings, generating false high/low safety pre-trips during VFD compressor cycling.

• Field Rule: Terminate cable shield only at the Trusted rack chassis ground bar; tape and isolate shield conductors at all remote field instrument enclosures.

Skipping TMR Slice Verification Post Hot-Swap

Rookies pull and reinsert T8431 without waiting for full backplane slice sync. Partial seating breaks one redundant slice, disabling 2oo3 voting and downgrading SIL3 safety integrity.

• Quick Fix: After hot swap, wait 90 seconds for auto-sync; verify no slice discrepancy faults via Trusted engineering software before returning SIS to normal operation.

Mismatched Filter Settings Across Redundant T8431 Cards

Setting fast-response filter mode on one T8431 and 60Hz noise rejection on its redundant pair creates voting value mismatch and persistent slice fault alarms.

• Field Rule: Mirror identical filter, alarm threshold and signal range parameters on all modules within the same SIS rack; perform full channel injection test post configuration changes.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
