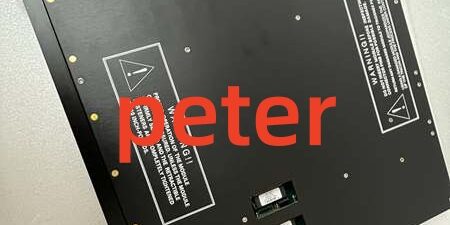

Component Snapshot At-a-Glance

• Model: TRICONEX 5351
• Brand: Triconex (Owned by Schneider Electric, formerly Invensys)
• Product Line: Tricon / Trident Triple Modular Redundancy (TMR) Safety Instrumented System (SIS)
• Hardware Type: Rack-mounted Analog Input Tri-Pack (AIT) safety module, dedicated for critical process safety signal acquisition
• Core Key Features:
  1. 4 fully isolated configurable analog input channels (4–20mA / 0–10V DC)
  2. Native TMR triple redundant internal circuit architecture; 2oo3 voting logic for fault tolerance
  3. 16-bit high-precision ADC, ±0.1% full-scale measurement accuracy
  4. Channel-by-channel galvanic isolation, built-in TVS surge suppression for field transmitter protection
  5. Complete on-board diagnostics: open circuit, short circuit, signal over/under range, module temperature alarm
  6. Online hot-swap support; replaceable without SIS system shutdown
  7. IEC 61508 SIL3 safety certification, Class I Div 2 / ATEX Zone 2 hazardous location approval
  8. Factory conformal coated PCB for high-humidity, oil mist refinery & power station cabinet environments
• Primary Field Application: Collect critical safety analog signals (pressure, temperature, flow, liquid level) from 4–20mA/voltage transmitters for ESD emergency shutdown, burner management, high-pressure vessel protection in oil & gas refineries, chemical plants, combined-cycle power plants, offshore platforms and fertilizer production safety systems.



Hard-Numbers: Complete Technical Specifications

Power Supply

• Rack input power: 24VDC nominal, operating range 19.2–30VDC
• Typical power consumption: 12W; max 15W full load
• Built-in reverse polarity, overvoltage and overcurrent fuse protection

Analog Input Channel Parameters

• Channel count: 4 independent isolated channels
• Configurable signal types:
  • Current: 4–20mA (2-wire HART transmitters compatible)
  • Voltage: 0–5V / 0–10V DC
• ADC resolution: 16-bit
• Static measurement accuracy: ≤ ±0.1% FS
• Signal sampling cycle: ≤ 100ms per channel
• Response delay: <250ms full channel update to Tricon main processor
• Transmitter excitation: Onboard regulated 24V loop power for 2-wire transmitters
• Per-channel isolation rating: 1500VAC reinforced isolation between field circuit and TMR internal logic bus

TMR Redundancy & Safety Architecture

• Triple identical independent signal acquisition sub-circuits per physical channel
• 2-out-of-3 hardware voting logic; single sub-circuit fault will not distort safety measurement values
• Continuous cross-check between three redundant signal paths; fault channel isolated automatically without process trip
• Hardware self-test runs every scan cycle; fault event time-stamped and stored in non-volatile flash

Environmental & Mechanical

• Operating temperature: -20°C ~ +60°C full rated precision; storage -40°C ~ +85°C
• Humidity: 5%–95% RH non-condensing
• Vibration resistance: 5g continuous vibration (compliant with offshore platform standards)
• Shock resistance: 50g short-term impact
• Mount: Standard Tricon 3U vertical rack slot locking design
• Dimensions: 190mm (W) × 144mm (H) × 35mm (D)
• Net weight: ~1.0kg
• Front panel protection: IP20; internal PCB full acrylic conformal coating
• Certifications: IEC 61508 SIL3, IEC 61511, CE, UL, ATEX II 3G, Class I Div 2 non-incendive

Front Panel Diagnostic LEDs

• PWR (Green): Rack 24V power normal
• OK (Green): Module TMR voting healthy, no internal fault
• FAULT (Red): Internal circuit failure, channel open/short, over-temperature
• CH1~CH4 Yellow LEDs: Per-channel signal overrange / transmitter fault alarm



System Pain Points Solved by Triconex 5351

1. TMR triple redundant architecture eliminates single-point signal failure riskOrdinary dual-redundant analog input modules still face measurement deviation if one circuit drifts; the 5351’s 2oo3 voting filters out single-path faulty readings, fully complying with SIL3 safety standards without extra external signal conditioners.
2. Integrated full-channel diagnostics reduce unplanned safety system tripsSeparate loop monitoring relays add extra cabinet wiring and spare parts; built-in open/short/overrange detection instantly alerts operators to broken transmitter cables before safety threshold violation.
3. Hot-swap maintenance avoids full SIS shutdown during module replacementNon-hot-swappable analog cards require complete rack power isolation, triggering plant ESD shutdown; the 5351 supports live rack extraction/insertion while the safety system remains online.
4. Hazardous location certified design fits refinery/ offshore MCC cabinetsNon-ATEX analog modules cannot be installed inside Class I Div 2 flammable process cabinets; factory safety certification eliminates cost of secondary explosion-proof enclosures.
5. Conformal coating stabilizes measurement precision in corrosive cabinet environmentsUncoated standard AI cards develop severe temperature drift and intermittent channel dropout from oil mist, salt fog and condensation; full PCB coating extends service life in harsh industrial safety racks.



Internal Hardware Architecture & Working Principle

This analog input module adopts fully independent triple modular redundant signal processing circuits, and only transmits validated voted digital measurement values to the Tricon main safety processor; all safety signal judgment and trip logic runs on the Tricon CPU, while the 5351 completes front-end isolated signal conditioning and triple-path sampling.

1. Filtered 24VDC rack power feeds three fully isolated redundant power rails for each of the triple signal processing sub-circuits to avoid cross-interference between redundant paths.
2. Each of the 4 field analog signals enters dedicated RC anti-aliasing EMI filters and TVS surge suppression circuits to suppress VFD motor switching noise and wiring inductive voltage spikes.
3. Three independent 16-bit ADC chips simultaneously sample the same analog signal for triple redundancy; internal hardware comparator executes real-time 2oo3 voting to eliminate single-path drift or fault data.
4. Per-channel 24V loop excitation power supplies power to 2-wire pressure/temperature transmitters; hardware current monitoring detects open or shorted field wiring and triggers channel fault LED indication.
5. Multi-layer isolated backplane connector transmits only voted valid digital measurement data to the Tricon main processor via proprietary safety bus; galvanic isolation blocks field-side high-potential transients from damaging the main SIS CPU rack.
6. Onboard temperature sensor monitors internal PCB heat; if temperature exceeds +60°C rated limit, red FAULT LED activates and fault event logs to system historian.
7. Full acrylic conformal coating encapsulates all PCB traces, ADC chips and solder joints to prevent leakage currents and intermittent signal faults caused by cabinet oil mist and condensed moisture.



Standard Field Service Compliance Rules & Common Mistakes

1. Dual-end grounding of 4–20mA transmitter shielded cables

Hazard: Parallel ground loop AC noise distorts analog current signals, leading to false high/low process value alarms and potential spurious ESD safety trips during VFD pump/compressor operation.Field Rule: Terminate all field transmitter cable shield braids only at the Tricon SIS rack chassis ground bar; fully tape and isolate shield conductors at remote field transmitter junction boxes.

2. Skipping TMR voting verification after module hot-swap replacement

Hazard: Improper seated module breaks one redundant signal path, disabling 2oo3 safety voting logic and downgrading system SIL integrity.Field Rule: After hot-swapping the 5351, observe front OK green LED steady on; run full channel calibration and TMR cross-check via Triconex TriStation engineering software before resuming normal safety monitoring.

3. Mismatched TriStation firmware between 5351 module and Tricon main CPU

Hazard: Out-of-sync firmware breaks triple-path data parsing, triggers continuous red FAULT LED and invalidates all safety analog measurement values.Field Rule: Download unified matched firmware bundles for all Tricon rack modules (CPU, AI, AO, communication); perform full channel signal injection test post-upgrade to validate measurement accuracy.

4. Insufficient rack ventilation causing thermal measurement drift

Hazard: Stacking multiple 5351 modules without vertical convection clearance blocks rack airflow; internal PCB temperature exceeds +60°C limit, generating persistent signal offset and false overrange faults.Field Rule: Reserve minimum 80mm vertical empty space above and below each analog input module; clean Tricon rack cooling fan filters every 90 days for refinery and offshore safety cabinet environments.

5. Improper field terminal torque leading to vibration-induced channel dropout

Hazard: Over-tightening crushes thin shielded signal wire strands; under-tightening creates high-resistance loose contacts that disconnect under cabinet mechanical vibration from large compressors/turbines.Field Rule: Torque field signal terminal block screws to Schneider Triconex standard 0.6 N·m; re-torque all transmitter wiring terminals during quarterly SIS cabinet inspection cycles.



Commercial Availability Note

All above technical content is for engineering design, safety audit and maintenance spare part reference only, and does not constitute binding quotation terms. Final unit price, factory lead time, SIL3 certified warranty coverage and bulk order discounts shall be negotiated based on global industrial safety spare part inventory stock, project order quantity and on-site delivery schedule.
