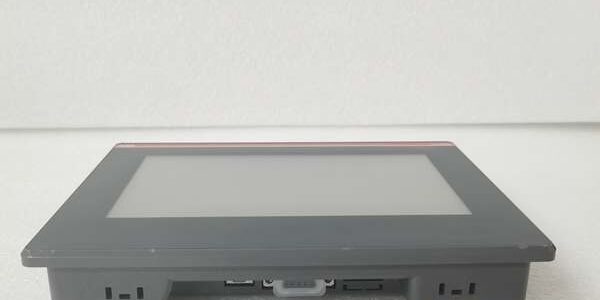

Component Snapshot At-a-Glance

• Full Part Number: 1SAP500405R0001
• Model Designation: CP405 (CP400 series industrial touch HMI)
• Product Line: ABB CP400 operator panels, matched with AC500 / AC500-eCo PLC, System 800xA DCS, ABB variable frequency drives
• Hardware Type: Flush-mount industrial resistive touch screen HMI (Human Machine Interface)
• Core Key Features:
  1. 7-inch TFT color display, 800×480 high resolution, 350 cd/m² high brightness
  2. ARM Cortex-A8 1GHz industrial processor, 512MB RAM + 1GB onboard flash storage
  3. Dual isolated Ethernet, RS232/RS485 serial, dual USB host/device multi-interface
  4. Resistive touch supports glove/stylus operation; front IP66 dust/waterproof rating
  5. Multi-language support, alarm logging, recipe management, real-time trend curve display
  6. Compatible with CP400PB Panel Builder 400 configuration software, offline simulation
  7. ATEX Zone 2 / Class I Div 2 hazardous location certification for refinery & power plant cabinets
• Primary Field Use: On-site operator monitoring, parameter adjustment, fault diagnosis and recipe control for production lines, power plant auxiliary MCC, refinery pump/compressor control rooms, water treatment, packaging machinery and HVAC automation systems.



Hard-Numbers: Complete Technical Specifications

Power Supply

• Rated input voltage: 24VDC wide range, operating range 19.2–30VDC
• Max power consumption: 10W, anti-reverse polarity, overvoltage & surge protection built-in
• Power terminal: Detachable screw terminal block for cabinet wiring

Display & Touch Screen

• Screen size: 7-inch TFT color LCD
• Resolution: 800 × 480 pixels, 500:1 contrast ratio
• Brightness: 350 cd/m² adjustable backlight
• Touch type: 4-wire resistive touch panel, support glove operation
• Front protection grade: IP66 (dust-proof, splash-proof); rear side IP20
• Service life: Touch ≥1 million presses; LED backlight 50,000-hour lifespan

Communication Interfaces (Rear Panel)

1. 2 × RJ45 Ethernet 10/100Mbps auto-negotiateSupported protocols: Modbus TCP, ABB AC500 proprietary protocol, PROFINET, OPC UA client1500VAC galvanic isolation between two Ethernet ports
2. RS232 / RS485 Combo serial port (DB9)Modbus RTU, ABB serial drive communication, handheld maintenance tool connection
3. Dual USB portsUSB Host: U disk for project upload/download, recipe backup, alarm log exportUSB Device: Direct online programming connection to PC CP400PB software
4. Internal expansion slot for optional memory card backup

Memory & Performance

• CPU: ARM Cortex-A8 1GHz industrial-grade processor
• RAM: 512 MB DDR
• Flash storage: 1 GB for HMI project, trend data, alarm & recipe storage
• Max alarm records: 10,000 time-stamped fault logs
• Multi-task cycle refresh rate: 100ms real-time process data refresh

Environmental & Mechanical Parameters

• Operating temperature: -20°C ~ +60°C full rated display & communication performance
• Storage temperature: -40°C ~ +85°C
• Humidity: 5%–95% RH non-condensing; internal PCB conformal coated for oily, dusty cabinet environments
• Isolation rating: 1500VAC reinforced isolation between communication ports and 24V power supply
• Mount method: Cabinet flush panel mounting, optional VESA 75×75 wall bracket
• Cutout size: 178 mm (W) × 134 mm (H)
• Overall dimension: 190 mm (W) × 146 mm (H) × 55 mm (D)
• Net weight: 0.8 kg
• Certifications: CE, UL, cULus, ATEX II 3G, IECEx, IEC 61010 industrial safety standard

Front Panel Indicator & Operation

• Red status bar LED strip: Power normal (green), system fault/alarm (red flash)
• Support graphical elements: Digital value, bar chart, analog gauge, trend curve, equipment status animation
• User authority management: Multi-level password protection for parameter modification authority



System Pain Points Solved by CP405 1SAP500405R0001

1. Integrated multi-interface eliminates extra communication gatewaysSingle Ethernet HMIs cannot realize redundant network backup or connect serial field instruments simultaneously; dual Ethernet + RS485 + USB integrated design saves cabinet space and reduces spare parts inventory.
2. IP66 front panel adapts to harsh industrial workshop environmentsOrdinary low-cost HMIs only reach IP20 front protection, prone to water splashing, dust and oil corrosion on production line cabinet doors; CP405 fully sealed front panel avoids frequent screen failure maintenance.
3. Hazardous location certification for refinery & gas plant MCC cabinetsNon-ATEX certified touch screens cannot be installed inside Class I Div 2 hazardous process cabinets; factory certification meets safety audit requirements without additional explosion-proof housing.
4. Large storage capacity realizes long-term trend & alarm offline recordingSmall memory basic HMIs cannot store long-term equipment operation data; built-in 1GB flash supports unattended log recording for weeks, convenient for post-fault root cause analysis.
5. Native seamless linkage with full ABB automation ecosystemPerfect matching with AC500 PLC, 800xA DCS and ABB drives without third-party driver adaptation; one-click project download via CP400PB software shortens on-site commissioning cycle.



Internal Hardware Architecture & Working Principle

This HMI is an independent industrial operator terminal with embedded real-time operating system; it realizes data interaction between operators and underlying PLC/drive equipment through multi-channel communication interfaces, and does not undertake automatic control logic operation.

1. Filtered 24VDC power input supplies isolated power circuits for main processor, display backlight, dual Ethernet transceivers and serial communication chips.
2. Dual Ethernet ports work in redundant active/standby mode; if one network cable fails, data transmission automatically switches to another channel within 100ms without operator screen blackout.
3. RS485 serial bus realizes connection to field transmitters and old ABB drives, while USB port supports offline project import via U disk without on-site PC wiring.
4. Onboard large-capacity flash memory permanently stores HMI screen project, production recipe, historical alarm and trend data; data will not be lost after complete power cut.
5. Resistive touch control chip collects operator touch coordinates, converts into parameter setting/equipment start-stop command and sends to PLC via communication bus.
6. Conformal coated PCB fully encapsulates internal circuit traces and chips to prevent leakage current and intermittent communication failure caused by cabinet oil mist and condensed moisture.



Standard Field Service Compliance Rules & Common Mistakes

1. Dual-end grounding of Ethernet/serial communication cable shielding

Hazard: Parallel ground loop AC noise distorts data transmission, causing screen tag flicker, disconnection between HMI and PLC during VFD motor startup.Field Rule: Terminate all communication cable shield braids only at the HMI cabinet ground bar; fully tape and isolate shield conductors at remote PLC/drive junction boxes.

2. Ignoring cabinet ventilation leading to screen thermal blackout

Hazard: Multiple HMIs stacked without gap block cabinet air convection; internal temperature exceeds +60°C limit, triggering automatic backlight shutdown and communication timeout.Field Rule: Reserve minimum 80mm vertical empty space above and below each HMI panel; clean cabinet cooling fan filter every 90 days for oily refinery and production workshop environments.

3. Mismatched CP400PB software firmware version

Hazard: Outdated configuration software cannot download project to , or screen data parsing error occurs after download, leading to blank trend curves and unresponsive touch buttons.Field Rule: Use CP400PB software version matching the HMI internal firmware; perform full offline simulation before on-site download, verify all communication tags after download.

4. Improper wiring torque of 24VDC power terminal

Hazard: Over-tightening crushes thin power wire strands; under-tightening creates loose high-resistance contacts, resulting in screen flicker and automatic restart under equipment vibration.Field Rule: Torque power terminal block screws to ABB standard 0.6 N·m; re-torque power wiring terminals during quarterly cabinet inspection cycles.

5. Using uncertified non-industrial USB flash disk for project backup

Hazard: Consumer-grade U disks have poor anti-interference performance in industrial cabinets, easily leading to project file damage and failed data export.Quick Fix: Use industrial-grade wide-temperature USB storage media for project backup and log export.



Commercial Availability Note

All above technical content is for engineering design and equipment maintenance reference only, and does not constitute binding quotation terms. Final unit price, factory lead time, warranty coverage and bulk order discounts shall be negotiated based on global inventory stock, project order quantity and on-site delivery schedule.
