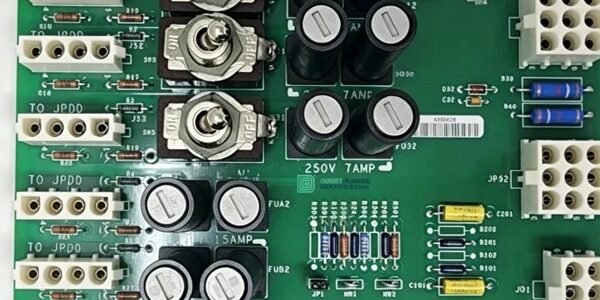

Component Snapshot At-a-Glance

• Model: IS200JPDEG1A
• Alt. P/N: No direct alternate factory part number
• Product Series: GE Speedtronic Mark VI Turbine Control Platform
• Hardware Type: Passive 32-channel discrete digital input terminal termination PCB
• Key Feature: 2500VAC channel-to-backplane galvanic isolation, per-channel reverse polarity protection
• Primary Field Use: Terminate dry contact limit switches, breaker status, and ESD interlock signals to paired Mark VI digital input I/O packs.

Hard-Numbers: Technical Specifications

• Protocol Support: Mark VI proprietary backplane I/O bus, ToolboxST diagnostic communication
• Port Count: Two 50-pin D-Sub backplane connectors, pluggable screw terminal field wiring blocks
• Baud/Data Rate: Backplane bus proprietary high-speed parallel scan
• Operating Temperature: -15°C to +70°C full rated performance; derate to +60°C in sealed turbine enclosures
• Isolation Rating: 2500VAC channel-to-backplane isolation per input channel
• Power Draw: Passive signal board, consumes ≤5W from mating DI I/O pack 28VDC rack supply
• Input Channel Count: 32 independent isolated digital input paths
• Input Signal Spec: 24VDC sinking/sourcing compatible; 5–10mA nominal per channel wetting current
• Overvoltage Protection: 36VDC reverse polarity tolerance, hardware short-circuit isolation
• ESD Rating: ±6kV contact discharge, ±12kV air gap discharge
• PCB Treatment: Factory conformal coating for oil mist/humidity turbine house environments
• Mount Format: Metal bracket screw mount inside Mark VI control cabinets
• Unit Weight: 0.6kg

The Real-World Problem It Solves

Generic unisolated terminal strips let VFD induced ground loop noise corrupt discrete contact signals, triggering false turbine trip interlocks during unit load swings. Low isolation 1500V terminal boards fail proof-test inspections and risk backplane damage from field wiring transients. Uncoated bare PCBs corrode rapidly from turbine lube oil vapor, creating intermittent floating contact status faults that go undetected until safety logic trips.Where you’ll typically find it:

• Combined-cycle gas turbine Mark VI control racks monitoring bleed valve and overspeed trip limit switches
• Steam turbine generator MCC panels tracking generator breaker and fire suppression interlock contacts
• Refinery turbine compressor ESD cabinets for process isolation valve feedback signalsHigh channel density, heavy-duty isolation and corrosion-resistant coating eliminate external signal isolators and reduce rack slot usage for critical safety discrete loops.

Hardware Architecture & Under-the-Hood Logic

This is a passive termination board with no on-board microprocessor; all signal sampling and fault detection runs on the matched Mark VI digital input I/O pack. Isolation barriers and RC filter banks block electrical noise from long field contact wiring before signals reach the backplane.

1. Pluggable screw terminal blocks accept 14–18AWG field wiring for all 32 dry contact input channels.
2. Per-channel RC low-pass filters suppress high-frequency switching noise from nearby motor and VFD cabling.
3. Independent 2500VAC isolation circuits separate each field channel from the 50-pin backplane D-Sub connectors.
4. Diode reverse polarity protection on every channel prevents damage if 24VDC wetting voltage is wired backwards.
5. Two 50-pin shielded D-Sub connectors route filtered, isolated contact status signals via ribbon cable to the paired DI I/O pack.
6. On-board unique ID resistor chip auto-identifies channel count and board model to the Mark VI controller on power-up.
7. No local signal processing; raw contact open/closed states pass directly to the I/O pack for debounce and HMI status reporting.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Of Discrete Cable Shield Braids Creates Noisy Contact Status

New technicians ground shield wiring at both the JPDE terminal board and remote valve junction boxes. Parallel ground paths induce circulating AC noise that flickers breaker/valve status tags on the turbine HMI.Field Rule: Ground cable shield braid only at the Mark VI control cabinet terminal strip; fully tape and isolate shield conductors at all remote field enclosures.

Mismatched Uncoated Non-A Variant Boards Installed In Turbine Houses

Junior crews swap uncoated generic Mark VI terminal boards into high-humidity turbine enclosures. Oil mist condensation eats PCB traces within 12 months, triggering random channel dropout faults during peak load operation.Quick Fix: Only deploy conformal coated units for turbine house installs; visually inspect uniform green coating before rack energization.

Improper Torque On Terminal Block Screws Causes Intermittent Open Circuits

Field technicians over-torque or under-torque field wire terminals. Loose strands create high-resistance connections that show random open contact faults during cabinet vibration from turbine rotation.Field Rule: Torque terminal block screws to GE specified 0.7 N·m; re-torque all terminals after any cabinet vibration event or major unit outage.
