Component Snapshot At-a-Glance

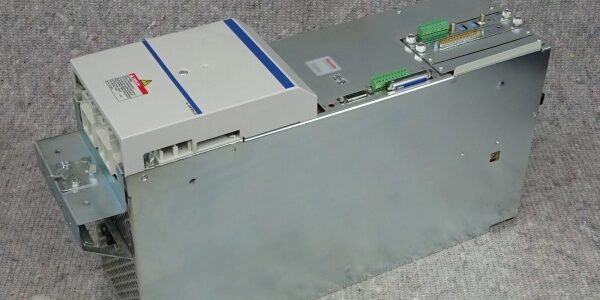

- Model: HDS04.2-W200N-HA01-01-FW
- Alt. P/N: No direct cross OEM drop-in replacement; smaller variants HDS02.2 series
- Product Series: Rexroth IndraDrive HDS04.2 shared DC bus servo inverter platform
- Hardware Type: Single-axis high-current digital servo drive for 750VDC common bus systems
- Key Feature: HA01 universal feedback card supporting EnDat, Hiperface, sine/cosine encoders
- Primary Field Use: High torque velocity/position control for large stamping presses, heavy CNC gantries and extrusion equipment paired with HVR central rectifiers.
Hard-Numbers: Technical Specifications
- Protocol Support: SERCOS III, Profinet IO, RS232 IndraWorks service port, internal DC bus communication
- Port Count: DC bus power terminals, motor U/V/W power block, HA01 encoder D-Sub, 2×RJ45 fieldbus, control I/O D-Sub, front RS232
- Baud/Data Rate: SERCOS III 16Mbps; Ethernet 10/100Mbps auto-sense; RS232 fixed 9600 baud
- Operating Temperature: 0°C to +40°C full rated output; max +50°C with current derating
- Isolation Rating: 1500VAC galvanic isolation between power stage, encoder wiring and control logic
- Power Draw: Max 22kW continuous power consumption; internal control logic draw 120W
- DC Bus Input: 600–800VDC nominal 750V shared bus from HVR rectifier units
- Motor Output Current: 200ARMS continuous, 400ARMS peak (1-second overload duty)
- Loop Bandwidth: Current loop 10kHz; velocity loop max 900Hz with HA01 high-res feedback
- Cooling: Integrated high-volume centrifugal forced air blower
- Ingress Protection: IP20 cabinet-only mounting; weight ~28.7kg
The Real-World Problem It Solves
Mid-range HDS02.2 drives hit hard thermal derating during heavy press punch cycles, causing slow axis movement and dimensional scrap. Separate external encoder adapter cards add extra wiring junctions prone to vibration-induced signal loss on heavy machinery frames. Drives without standardized FW firmware require manual parameter entry every swap, leading to sync mismatch across multi-axis press lines.Where you’ll typically find it:
- Large tonnage metal stamping presses with high frame inertia servo ram axes
- Heavy gantry CNC machining centers driving MHD large-frame high-torque servo motors
- Plastic extrusion and blow molding high-force transfer motion racks fed by HVR03.2 rectifiersThis single high-current drive eliminates multiple smaller parallel inverters, integrates universal encoder hardware, and factory FW preloads motion parameters to cut commissioning time on heavy load production equipment.
Hardware Architecture & Under-the-Hood Logic
This drive carries a dedicated 32-bit motion processor independent of PLC scan timing; isolated power stage blocks 750VDC bus transients from low-voltage encoder and fieldbus wiring. It draws DC power exclusively from a shared HVR rectifier bus, no standalone mains rectifier on board.
- 750VDC shared DC bus power feeds internal EMI filter and IGBT inverter power stack for motor three-phase output.
- Plug-in HA01 daughtercard reads serial digital encoder position data, auto-loads motor electronic nameplate memory on power-up.
- 10kHz fast current loop limits peak winding current to prevent motor burnout during rapid heavy acceleration.
- Velocity and position loop logic executes synchronized motion profiles received via SERCOS/Profinet master controller.
- Dual RJ45 fieldbus ports support daisy-chain multi-axis sync with microsecond timestamp alignment across all machine axes.
- Onboard blower pulls cool cabinet air across IGBT heat sinks; RPM sensor triggers blower fault alarm if fan stalls.
- Front panel coded LED blink sequences flag overcurrent, overheat, encoder loss, DC bus undervoltage/overvoltage; fault logs exportable over RS232 to IndraWorks.
Field Service Pitfalls: What Rookies Get Wrong
Stacking Drives With Zero Vertical Clearance Triggers Thermal Foldback
New technicians mount HDS04.2 units tight against adjacent drives with no empty rack space above/below. Blower intake airflow gets restricted, internal heat sink temperatures spike, and drive automatically cuts output current mid-punch cycle.Field Rule: Leave minimum 200mm vertical empty space top and bottom of each HDS04.2; clean blower intake filter every 60 days in oily metalworking environments.
Unshielded Encoder Cable Run Parallel With High-Current Motor Power Harnesses
Junior crews route HA01 encoder multi-pin wiring alongside U/V/W motor power cables without separation. IGBT high-frequency switching noise corrupts position feedback, throwing constant following error trips during heavy load operation.Quick Fix: Use fully shielded double-shield encoder cable; maintain 35cm minimum separation from all motor power runs; ground shield only at the drive cabinet terminal block.
Mismatched Drive FW Firmware Versions With HVR Rectifier & Motion Master
Techs upgrade SERCOS master controller firmware but skip flashing matching FW revision on HDS04.2 drives. DC bus energy coordination and multi-axis sync handshake break, creating random axis drift and unplanned machine E-stop events.Field Rule: Match identical firmware revisions across all HVR rectifiers, HDS servo drives and motion master; run full axis auto-identify and loop auto-tune post-firmware update before production startup.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
