Component Snapshot At-a-Glance

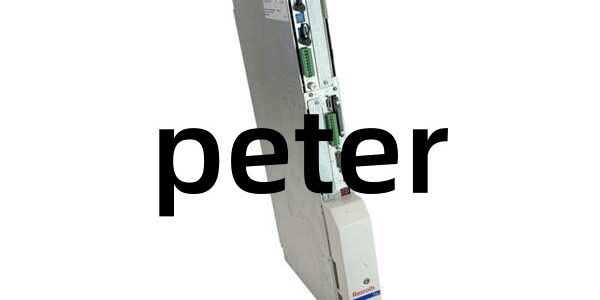

• Model: HDS02.2-W040N-HS45-01-FW
• Alt. P/N: No direct cross OEM replacement; base variant HDS02.2-W040N without HS45 encoder expansion
• Product Series: Bosch Rexroth IndraDrive .2 modular servo drive platform
• Hardware Type: Single-axis digital AC brushless servo power amplifier with multi-encoder interface slot
• Key Feature: 40A continuous output + expandable feedback card for resolver, EnDat, Hiperface encoders
• Primary Field Use: Precision torque, velocity and position control for metal stamping, high-speed packaging and automated assembly servo motors

Hard-Numbers: Technical Specifications

• Protocol Support: SERCOS III, Profinet IO, EtherCAT, Modbus TCP, RS232 IndraWorks service port
• Port Count: 1×SERCOS fiber/copper bus, 2×RJ45 fieldbus, 1×RS232 config port, encoder slot, motor U/V/W power terminal, brake output, digital I/O D-Sub
• Baud/Data Rate: SERCOS III 16 Mbps; Ethernet 10/100 Mbps auto-sense; RS232 fixed 9600 baud
• Operating Temperature: 0 °C to +40 °C full 40A output; derate to 30A above 40 °C, max ambient 50 °C
• Storage Temperature: -40 °C to +85 °C
• Isolation Rating: 1500 VAC galvanic isolation between power stage, encoder feedback and communication circuits
• Input Power: 3-phase 400/480 VAC ±10% mains supply
• Motor Output Current: 40 ARMS continuous, 80 ARMS peak (1-second overload duty cycle)
• Loop Bandwidth: Current loop 10 kHz; velocity loop up to 1 kHz with high-resolution feedback
• : EnDat 2.2, Hiperface, sine/cosine resolver, incremental TTL
• Mount Format: Standard 35 mm vertical DIN rail rack mount, mandatory top/bottom airflow clearance
• Ingress Protection: IP20, sealed industrial cabinet mounting only
• Protection Logic: Overcurrent, DC bus over/undervoltage, drive/motor overtemperature, I²t thermal foldback, following error, short-circuit motor cable detection
• Firmware Variant: Suffix FW = factory preloaded motion control firmware for multi-axis synchronization

The Real-World Problem It Solves

Basic single-feedback servo drives cannot interface mixed encoder motor fleets, forcing separate drive models for resolvers vs EnDat feedback and wasting rack DIN rail space. Low-current servo amplifiers hit thermal limits during high-force stamping press cycles, triggering thermal foldback and inconsistent part dimensional accuracy. Older drives lack high-speed SERCOS/EtherCAT multi-axis sync, creating microsecond position drift between coordinated axes and high scrap rates on packaging lines. Separate external encoder adapter cards add extra wiring junctions prone to vibration-induced signal loss.Where you’ll typically find it:

• High-speed vertical form fill seal (VFFS) packaging machine multi-axis motion cabinets
• Metal stamping and press brake equipment racks running high-torque spindle servo motors
• Automotive assembly robotic transfer lines requiring synchronized pick-and-place axis control

Bottom-line value statement: Integrated universal encoder slot, 40A high continuous output and native high-speed fieldbus sync eliminate external feedback adapters, reduce thermal derating during heavy loads and stabilize multi-axis motion precision.

Hardware Architecture & Under-the-Hood Logic

This drive runs a dedicated 32-bit motion processor independent of host PLC scan timing; isolated power stage separates high-voltage mains from low-voltage encoder and communication wiring to suppress ground loop transients. Integrated heat sink with internal fan dissipates IGBT switching heat under peak load.

1. 3-phase AC mains rectifies to high-voltage DC bus rail; IGBT inverter outputs variable frequency three-phase power to servo motor windings
2. expansion slot accepts plug-in feedback daughtercard to read motor position, velocity and electronic motor nameplate data
3. 10 kHz fast current loop limits winding peak current to avoid motor burnout during rapid acceleration/deceleration
4. 1 kHz velocity loop executes motion profile commands from SERCOS/EtherCAT master, dynamically adjusting proportional/integral gains for low-vibration operation
5. Dual RJ45 + SERCOS bus ports form daisy-chain multi-axis network; all axis timestamps synchronized to microsecond tolerance
6. Front-panel multi-code LED blink sequences report specific faults: overheat, encoder loss, bus voltage trip, following error; fault logs stored non-volatile for IndraWorks diagnostic download
7. Built-in digital I/O terminals handle motor brake control, home switch input, fault relay output and enable interlock signals to machine safety circuits

Field Service Pitfalls: What Rookies Get Wrong

Zero Vertical Airflow Clearance Stacking Servo Drives

New technicians mount drives flush with adjacent power modules with no empty rack space between units. Internal heat sink airflow is blocked; cabinet ambient above 40°C triggers permanent current derating and random speed dips during production runs.

• Field Rule: Leave minimum 1U empty rack space above and below each .2 drive; clean cooling fan filter every 90 days in dusty metalworking environments.

Unshielded Encoder Cable Routed Parallel With Motor Power Leads

Junior crews run multi-pin encoder wiring alongside high-current U/V/W motor power cables without separation. High-frequency IGBT switching noise corrupts position feedback, throwing following error trips and lost home position faults mid-cycle.

• Quick Fix: Route fully shielded encoder cable a minimum 30 cm away from all motor power harnesses; ground cable shield only at drive terminal block end.

Mismatched Drive FW Firmware Version With Motion Master Controller

Field crews upgrade machine PLC/SERCOS master firmware but skip flashing matching .2 drive FW revision. Multi-axis synchronization handshake fails; axes drift out of position and trigger machine safety interlock stops.

• Field Rule: Standardize identical firmware revisions across all IndraDrive axes post-upgrade; run full axis identification and loop auto-tune in IndraWorks before production startup.
