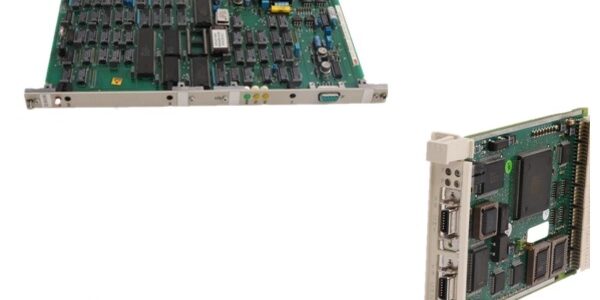

Component Snapshot At-a-Glance
- Model: 70EA01B-ES
- Alt. P/N: HESG447307R1; no drop-in uncoated base variant
- Product Series: ABB Procontrol P13 legacy DCS platform
- Hardware Type: Rack-mounted multi-range analog input signal acquisition board
- Key Feature: 8 multi-type input channels + group galvanic isolation, native HART signal compatibility
- Primary Field Use: Convert 4-20mA and ±10V sensor signals to digital values for boiler, refinery and water plant process control loops
Hard-Numbers: Technical Specifications
- Protocol Support: Procontrol P13 station backplane bus, HART overlay on 4–20mA loops
- Port Count: Rear gold edge connector for P13 rack bus, field terminal screw block for sensor wiring
- Baud/Data Rate: P13 internal bus up to 1 Mbps cyclic scan
- Operating Temperature: -20 °C to +60 °C; derate to 50 °C in sealed unventilated cabinets
- Storage Temperature: -40 °C to +85 °C
- Isolation Rating: 200 VAC group-to-backplane isolation; 250 VAC inter-channel track separation
- Power Draw: Typical 12 W, 0.5 A; powered fully via P13 rack backplane 24 VDC supply
- Channel Count: 8 independent analog input channels
- Supported Signal Ranges: 4–20 mA, 0–20 mA, 0–10 V, ±10 V DC
- Input Impedance: ≥1 MΩ (voltage mode); ≤250 Ω loop load (current mode)
- ADC Spec: 16-bit resolution, ±0.1% full-span accuracy
- Sampling Speed: 1 ms per channel sequential scan
- Overload Protection: Hardware current/voltage clamping on every input channel
- Hot Swap: Not hot-swappable; full rack power lockout required for replacement
- Ingress Protection: IP20; conformal coated PCB for high-humidity industrial environments
- Physical Size: 203 mm W × 51 mm H × 152 mm D; weight ~0.4 kg
The Real-World Problem It Solves
Early single-channel analog boards occupied multiple rack slots and required external signal isolators to block VFD ground loop noise. Unisolated legacy I/O cards generate drifting flow/temperature readings that trigger false process interlock trips. Separate external HART multiplexers add extra wiring failure points when interrogating smart transmitters. Non-hot-swap uncoated PCBs corrode quickly from refinery hydrocarbon vapors, creating intermittent channel dropouts that force unit load reductions during proof testing.
Where you’ll typically find it:
- Coal-fired power plant Procontrol P13 boiler racks monitoring drum level, exhaust temperature and feedwater flow transmitters
- Refinery distillation unit legacy DCS cabinets collecting pressure and level 4–20mA smart HART sensor signals
- Municipal water treatment P13 control panels tracking pump discharge pressure and tank level analog values
Bottom-line value statement: 8-channel multi-signal design with built-in galvanic isolation and native HART support eliminates external signal conditioning hardware and reduces rack slot consumption for legacy Procontrol P13 systems.
Hardware Architecture & Under-the-Hood Logic
This board contains a dedicated analog front-end and local signal ASIC independent of the Procontrol P13 main CPU; isolation barriers separate all field sensor wiring from the rack backplane to suppress transient voltage surges. It slots vertically into standard P13 card cage racks.
- P13 rack backplane delivers filtered 24 VDC logic power and high-speed parallel data bus to the PCB edge connector
- Each channel front-end accepts either current loop or voltage sensor wiring with passive RC anti-aliasing filters
- Galvanic group isolation transformers block ground loop offset caused by long field cable runs and variable frequency drives
- 16-bit ADC converts raw analog levels to digital values; on-board ASIC performs linear scaling and fault threshold comparison
- HART carrier signal bandpass filters superimpose digital transmitter data onto standard 4–20mA analog loops without disrupting control signals
- Cyclic scan logic uploads scaled process values, open-circuit and overrange fault flags to the P13 main controller via backplane bus
- Front-panel single red fault LED illuminates when any channel exceeds configured measurement limits or detects wire break conditions
Field Service Pitfalls: What Rookies Get Wrong
Dual-End Grounding of Analog Shielded Field Cables
New technicians ground sensor cable shield braid at both the rack terminal block and remote transmitter junction box. Parallel ground paths induce circulating AC noise that shifts process readings by 3–8% during VFD motor cycling.
- Field Rule: Ground analog cable shield only at the Procontrol rack I/O terminal strip; insulate shield conductors fully at all remote field transmitters.
Mixing Voltage and Current Wiring On Undefined Channels
Junior crews hardwire ±10V pressure transducers to channels set for 4–20mA loop operation without reconfiguring P13 engineering software. Excessive load resistance clamps signals to zero, showing offline tags on the plant HMI.
- Quick Fix: Label each terminal channel with its signal type; re-download P13 hardware configuration after any field sensor wiring change.
Pulling Card From Live Powered P13 Racks
Field technicians attempt to swap 70EA01B-ES without full rack power isolation, mistakenly assuming partial hot-swap capability. Edge connector arcing burns PCB gold traces and damages the P13 backplane bus permanently.
- Field Rule: Execute full lockout/tagout of P13 rack 24V supply; wait minimum 3 minutes for backplane bus capacitors to discharge before removing or inserting analog I/O boards.
