Component Snapshot At-a-Glance

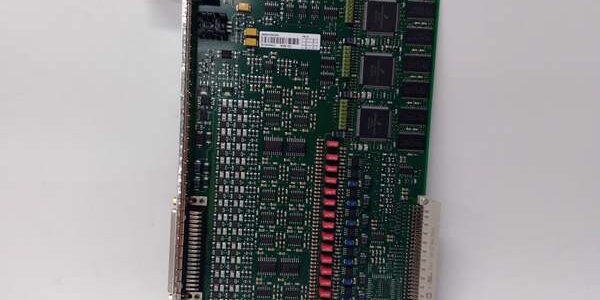

• Model: PFSK151
• Alt. P/N: 3BSE018876R / 3BSE018876R1
• Product Series: ABB AC 800M / System 800xA DCS VME rack platform
• Hardware Type: Standalone DSP digital signal processing VME module
• Key Feature: Integrated load cell excitation supply + onboard high-speed 83MHz DSP for raw sensor filtering
• Primary Field Use: Condition high-precision load cell, strain gauge and analog process signals; offloads heavy math logic from PM864AK01 main CPU

Hard-Numbers: Technical Specifications

• Protocol Support: VME backplane bus, 10/100Mbps Ethernet, RS232 service port, Modbus TCP
• Port Count: 1×RJ45 Ethernet, 2×RS232 serial, multi-pin D-Sub field signal terminal, VME rear edge connector
• Baud/Data Rate: Ethernet auto-sense 10/100 Mbps; RS232 fixed 9600 baud
• Operating Temperature: 0 °C to +60 °C; derate to 50 °C in sealed unventilated cabinets
• Storage Temperature: -25 °C to +70 °C
• Isolation Rating: 1500 VAC galvanic isolation between field sensor wiring and VME backplane
• Power Draw: Typical 4.8 W, max 6 W; 24 VDC rack supply (19.2–28.8 VDC)
• Native I/O Channels: 4 analog load cell inputs, 8 digital DI, 6 digital DO, 4 analog AO
• Excitation Output: Regulated 24 VDC / 0.5 A for strain gauge & load cell sensors
• DSP Clock Speed: 83 MHz dedicated signal processor
• Memory Allocation: 8K flash program storage, 8K word high-speed data cache
• Mount Format: Standard 6U VME vertical rack slot, forced airflow required
• Ingress Protection: IP20; conformal coated PCB for high-humidity process environments
• Hot Swap: Not hot-swappable; full rack power isolation mandatory for replacement

The Real-World Problem It Solves

Main PM864AK01 CPU cannot sustain high-frequency load cell sampling and heavy filter math without slowing global DCS scan cycles. Generic analog input cards lack dedicated sensor excitation, requiring external power supplies that add extra wiring failure points. Unprocessed raw strain signals pick up VFD harmonic noise, generating drifting weight readings and batch product scrap in refining, mining and pulp lines.Where you’ll typically find it:

• Refinery blending tank racking systems measuring load cell mass flow & batch weight
• Pulp mill digester feed weighing panels with strain gauge level sensors
• Coal-fired power plant fuel feeder weight monitoring VME cabinetsBottom-line value statement: Independent DSP processing removes sensor math load from main controller, built-in excitation supply eliminates external power hardware, and galvanic isolation stabilizes precision weight measurements amid plant electrical noise.

Hardware Architecture & Under-the-Hood Logic

This module operates as a dedicated co-processor separate from the AC800M PM864 CPU; it does not share main controller scan bandwidth. Isolation transformers block ground loop transients from long load cell field cables. It inserts directly into the system VME backplane.

1. 24 VDC rack input feeds isolated linear regulators for DSP logic, Ethernet transceivers and regulated load cell excitation power
2. 4-channel analog front-end amplifies weak strain gauge signals; hardware low-pass filters cut VFD switching noise before ADC conversion
3. 83MHz DSP executes configurable averaging, tare, linearization and limit alarm math independent of main DCS cycle
4. 8 digital input / 6 digital output channels handle valve interlock, feeder enable and fault status discrete signals
5. Dual RS232 service ports support local calibration tool connection; RJ45 Ethernet pushes processed weight data to 800xA operator stations
6. VME backplane edge connector transfers scaled, filtered measurement tags to PM864AK01 controller without overloading main CPU resources
7. Front-panel LED bank shows VME bus activity, Ethernet link, excitation fault and overrange sensor alarm status

Field Service Pitfalls: What Rookies Get Wrong

Zero Vertical Clearance Stacking Against High-Power VFD Control Cards

New technicians slot PFSK151 flush next to high-heat drive control boards. Internal PCB temperature exceeds 50 °C, triggering random DSP watchdog resets and frozen weight trend values.

• Field Rule: Reserve minimum 1 empty VME slot above and below each PFSK151; install cabinet exhaust fans for ambient above 40 °C.

Dual-End Grounding of Load Cell Shielded Cable

Junior crews ground strain gauge shield braid at both VME rack terminal block and remote weighing junction box. Parallel ground paths create circulating AC noise that shifts batch weight readings by 2–5%.

• Quick Fix: Ground cable shield only at the PFSK151 D-Sub terminal; insulate shield conductors fully at all field sensor enclosures.

Mismatched DSP Firmware vs AC800M Controller Revision

Field crews flash PM864AK01 CPU firmware but skip matching PFSK151 DSP firmware updates. VME tag handshake fails; all load cell weight tags show offline in Control Builder.

• Field Rule: Sync PFSK151 firmware build number to match main CPU version; run full VME hardware tree rescan post-upgrade before batch production startup.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
