Component Snapshot At-a-Glance

• Model: CI522A, full factory part number 3BSE018283R1
• Alt. P/N: CI522 (older hardware revision, limited diagnostic functions, firmware cross-incompatible with new AC800M releases)
• Product Series: S800 I/O, System 800xA, AC800M modular controller platform

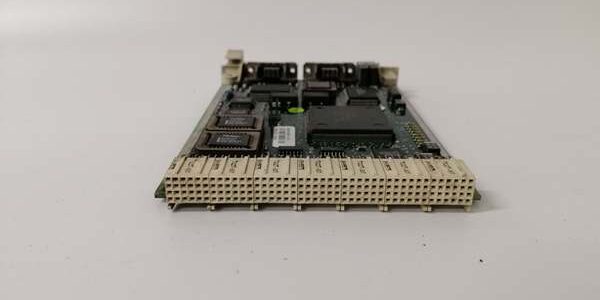

• Hardware Type: Single-slot rack plug-in Profibus DP communication PCB, front 9-pin D-Sub DP port, multi-status LED diagnostic bank
• Key Feature: Galvanically isolated Profibus DP-V1 master interface, full hot-swap capable, supports redundant bus topology and comprehensive slave fault diagnostics
• Primary Field Use: Bridge AC800M controller to S800 remote I/O racks, variable frequency drives, intelligent transmitters and third-party DP field devices over Profibus DP fieldbus

Hard-Numbers: Technical Specifications

• Protocol Support: PROFIBUS DP-V0 / DP-V1 cyclic & acyclic data exchange, IEC 61158 standard
• Port Count: 1 x 9-pin D-Sub Profibus DP field port, rear controller backplane edge connector
• Baud/Data Rate: Selectable 9.6 kbps up to 12 Mbps maximum DP bus speed
• Operating Temperature: -25°C to +70°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation separating DP field wiring and controller backplane logic
• Power Draw: Max 3.5W total module load, fed 24VDC from AC800M controller rack backplane rail
• Max Supported DP Slaves: Up to 126 field devices per CI522A bus segment
• Hot-Swap Compliance: Full hot-swap certified; online replacement without controller shutdown
• Diagnostic Functions: Slave loss, bus short, baud mismatch, cyclic data timeout, wire fault counter logging
• Physical Weight: 0.21 kg, standard AC800M single slot dimensions, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Older CI522 base modules lack extended DP-V1 diagnostic registers; intermittent bus shorts or loose terminal wiring only trigger generic “bus fault” alarms, forcing technicians to trace every slave device manually during unplanned downtime.Unisolated DP communication cards create cross-cabinet ground loop currents between controller racks and remote MCC I/O cabinets; VFD switching noise corrupts DP telegrams, triggering random I/O freeze and valve loop bias drift.Non-hot-swap communication interfaces force full controller shutdown to replace faulty DP cards; continuous process plants lose all fieldbus control during maintenance window work.Where you’ll typically find it:

• Combined cycle power plant AC800M control racks connecting S800 boiler I/O, turbine VFDs and generator protection IEDs over Profibus DP
• Refinery process DCS cabinets driving distributed S800 AI/AO valve control racks and ESD safety DI/DO subracks
• Pulp mill production line control chassis communicating with web tension drives, encoder pulse modules and liquor flow transmittersThis upgraded CI522A DP master card delivers full hot-swap serviceability, detailed per-slave fault diagnostics, and galvanic isolation to stabilize fieldbus communication across long remote cabinet cable runs.

Hardware Architecture & Under-the-Hood Logic

This board integrates dedicated Profibus protocol ASIC and isolated differential line transceivers; all DP frame parsing, slave polling and fault logging run locally on the module without burdening the main CPU.

1. 24VDC controller rack backplane power feeds internal EMI filters, isolated DC-DC power converters split for controller logic side and DP field bus side, front-panel status LED drivers.
2. All DP bus signal lines pass discrete TVS surge suppression to block ESD and lightning transients from long field cable trunks.
3. Galvanic isolation barrier electrically separates controller chassis ground and remote MCC cabinet ground to eliminate circulating ground loop noise currents that distort differential DP signals.
4. Onboard DP master ASIC executes cyclic input/output data exchange with all connected slaves, captures acyclic diagnostic data, and stores fault event counters in local buffer registers.
5. Front LED bank displays backplane link active, DP bus traffic, slave communication loss, short circuit and module standby redundant status; all fault codes forward to CPU for HMI alarming and maintenance logging.

Field Service Pitfalls: What Rookies Get Wrong

Swapping CI522 Older Revision Cards As Direct Drop-In Replacements

Junior technicians install base CI522 spare boards without matching hardware revision. Missing DP-V1 diagnostic stack hides developing bus wiring faults, and new firmware throws persistent initialization error codes after restart.

• Field Rule: Only deploy CI522A for active DP bus segments requiring full diagnostic and hot-swap functionality; reserve CI522 spares for legacy fixed-firmware small auxiliary control racks only.

Running Unshielded Cable Between CI522A D-Sub Port And Remote DP Slaves

Field crews deploy generic unshielded control wire for Profibus trunk runs. Inductive coupling from adjacent motor drive power cables distorts differential DP waveforms, triggering daily slave dropout alarms during peak production shifts.

• Quick Fix: Install factory specified shielded twisted pair Profibus cable; single-point ground cable shield only at the controller cabinet CI522A terminal end, leave remote slave side shield floating.

Ignoring Termination Resistors At Both Ends Of Long DP Bus Segments

Techs remove bus termination resistors on far-end S800 I/O subracks to add temporary test slaves. Unterminated bus signals generate reflection noise, causing random cyclic data loss and unstable modulating valve control loops.

• Field Rule: Maintain active 120Ω termination resistors at the master port and the last physical slave on every DP bus trunk.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
