Component Snapshot At-a-Glance

• Model: SR511, full factory part number 3BSE000863R1
• Alt. P/N: SR510 (6A low-current power supply, insufficient load capacity for fully populated RF522 racks)
• Product Series: ABB S100 I/O, Advant OCS, Advant Controller 450 legacy DCS platform

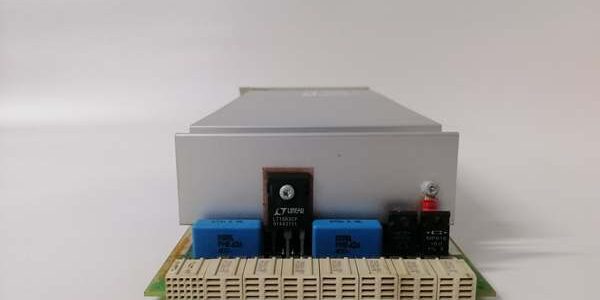

• Hardware Type: Single-slot RF522 rack plug-in switching power supply PCB, built-in cooling fan, front power status LED bank
• Key Feature: Regulated 24VDC 10A continuous output, multi-stage fault protection, dedicated power feed for full 19-slot master chassis backplane
• Primary Field Use: Supply stable 24VDC operating power to PM511 CPU, SC bus couplers and all S100 analog/digital I/O modules inside RF522 master control racks

Hard-Numbers: Technical Specifications

• Protocol Support: No communication stack; purely power distribution hardware, feeds S100 backplane power rails
• Port Count: AC mains input terminal block, internal hardwired backplane power distribution contacts
• Baud/Data Rate: N/A, non-communication module
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 3000VAC isolation between AC input side and 24VDC low-voltage backplane side
• Power Draw Input: 85–264VAC universal mains input, 50/60Hz
• DC Output Rating: Regulated 24VDC, 10A continuous, peak 12A startup surge
• Built-In Protection: Overvoltage shutdown, overcurrent foldback limiting, over-temperature fan fault cutback, short-circuit lockout
• Cooling: Integrated axial cooling fan with stall detection fault reporting
• Max Supported Chassis Load: Fully populated 19-slot RF522 master rack with full complement of CPU, bus coupler and I/O cards
• Physical Weight: 0.79 kg, standard S100 single slot dimensions, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial safety compliance

The Real-World Problem It Solves

6A SR510 low-output power supplies hit current limit quickly when RF522 racks carry high-load DSDP pulse counter and DSDO solenoid output modules. Frequent overcurrent cutbacks drop backplane voltage, triggering CPU resets and random I/O communication faults during peak production shifts.External standalone DIN rail power supplies require extra cabinet mounting space, separate wiring runs to the rack busbar, and add loose terminal junctions prone to vibration-induced voltage drop.Unregulated unbranded power bricks output drifting DC voltage as ambient cabinet temperature rises; unstable 24V rail values skew analog RTD readings and degrade bus signal waveform integrity.Where you’ll typically find it:

• Fossil and combined cycle power plant turbine master racks loaded with PM511 CPU, SC520 bus coupler and full banks of temperature, valve and encoder I/O
• Refinery central Advant OCS DCS main chassis powering plant-wide ESD safety DI/DO and reactor analog control loops
• Pulp mill recovery boiler master control racks with high-density DSDP web speed pulse counter and modulating DSAO valve output modulesThis 10A rack-mounted regulated power supply fits directly into master rack slots, delivers stable full-load 24VDC without current limiting trips, and eliminates external PSU wiring and extra cabinet hardware.

Hardware Architecture & Under-the-Hood Logic

This is a switching-mode power supply with independent fault monitoring circuitry; no process or bus logic, only converts AC mains to clean isolated 24VDC for the rack backplane.

1. Wide-range AC mains input feeds EMI filter and primary isolation transformer, blocking grid surge spikes from leaking to low-voltage control circuits.
2. High-frequency switching regulation stabilizes output voltage regardless of mains fluctuation or varying I/O module load draw.
3. Integrated fan pushes forced air across internal power semiconductors; stall sensor detects blocked fan rotation and reduces output current to prevent thermal burnout.
4. Multi-layer fault detection circuit monitors output voltage, current and internal temperature; triggers soft shutdown instead of hard rail collapse during overload events.
5. Front panel LED indicators light separate status signals for mains present, normal 24V output, overcurrent trip, over-temperature and fan failure; fault flags pass to PM511 CPU via backplane registers.

Field Service Pitfalls: What Rookies Get Wrong

Using SR510 6A PSU As Drop-In Replacement For On Full Racks

New technicians install SR510 spare power supplies without calculating total rack module load. The 6A current ceiling triggers constant foldback limiting, dropping backplane voltage and causing intermittent CPU reboots and I/O offline alarms.

• Field Rule: Only deploy for fully populated 19-slot master racks; reserve SR510 spares for lightly loaded small auxiliary subracks only.

Blocking PSU Fan Air Intake With Cable Bundles Or Spare Card Blanks

Maintenance crews route heavy wiring bundles directly against the ventilation grille. Restricted airflow raises internal component temperature, activating thermal current cutback and unstable backplane power.

• Quick Fix: Leave at least one empty slot adjacent to the power supply; route cable harnesses clear of all fan intake and exhaust openings.

Hot-Swapping Module With Master Rack Loaded Live

Removing an energized rack power supply creates instantaneous backplane voltage collapse. All CPU and I/O modules lose power abruptly, erasing runtime control setpoints and triggering unplanned full plant safety trips.

• Field Rule: Isolate the AC mains breaker feeding the master rack first, wait 60 seconds for all backplane capacitors to discharge before removing or inserting .

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
