Component Snapshot At-a-Glance

• Model: DSAO120A, full part number 3BSE018293R1
• Alt. P/N: DSAO110A (4-channel low-density analog output card, different backplane pin layout)
• Product Series: S800 I/O, System 800xA, Advant OCS DCS platform

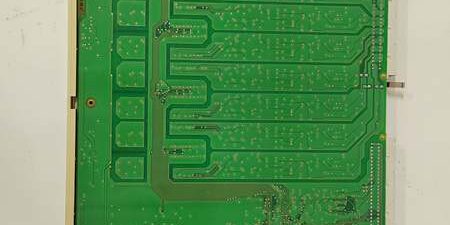

• Hardware Type: Single-slot plug-in analog output PCB, front screw terminal block, channel status LED indicators
• Key Feature: 8 isolated 4–20mA current output channels with independent short-circuit protection per channel
• Primary Field Use: Drive modulating control valves, air dampers and variable field transmitters for closed-loop process regulation



Hard-Numbers: Technical Specifications

• Protocol Support: S800 internal parallel backplane bus, Profibus DP communication via CI840A/CI840B interface modules
• Port Count: 8 isolated 4–20mA analog output terminal pairs
• Baud/Data Rate: Fixed 100ms rack backplane scan cycle, instantaneous hardware output adjustment
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 500VAC opto-isolation between each analog channel bank and control backplane logic
• Power Draw: Max 4.5W total module load, powered by 24VDC rack backplane rail
• Output Signal Range: Standard 4–20mA DC current loop
• Full Scale Accuracy: ±0.05% of measurement span
• Max Loop Load Resistance: 750 Ω per single channel
• Fault Protection: Per-channel automatic current limiting for shorted field wiring
• Physical Weight: 0.32 kg, IP20 rated for cabinet-only installation
• Certifications: CE, UL/cUL, IEC 61010-1 industrial safety standard



The Real-World Problem It Solves

4-channel DSAO110A low-density AO cards double rack space consumption for multi-valve control layouts, adding extra terminal junctions prone to corrosion in humid pulp and offshore MCC rooms. Shared output rail boards lack channel-specific fusing; one shorted valve loop forces full module shutdown and collapses multiple critical control loops.

Unisolated analog output boards create ground loop offsets from long field cable runs routed alongside VFD power wiring, leading to unstable valve hunting and constant process deviation alarms.

Where you’ll typically find it:

• Combined cycle power plant boiler DCS racks for fuel gas control valves and air damper modulating loops
• Refinery process control cabinets for reactor feed, distillation column flow regulating valves
• Paper mill recovery boiler racks for liquor feed and steam pressure modulating control valvesThis 8-channel isolated current output card cuts rack slot usage in half, restricts short-circuit faults to individual channels only, and blocks common-mode electrical noise to stabilize closed-loop control performance.



Hardware Architecture & Under-the-Hood Logic

This module uses dedicated analog output driver ASICs with independent channel fault detection; no onboard standalone CPU, all setpoint values arrive from AC800M controllers over the S800 backplane bus.

1. 24VDC rack backplane power feeds onboard EMI filters, isolated analog drive power rails, and front-panel channel status LED circuits.
2. Each 4–20mA output channel carries discrete TVS surge suppression to absorb transient voltage spikes from long field cable runs.
3. Independent current limiting circuits activate instantly on channel short circuits, leaving the remaining seven output channels fully operational without interruption.
4. Opto-isolation barriers break ground potential differences between field valve loop circuits and low-voltage backplane logic to eliminate ground loop signal drift.
5. Output setpoint state and channel short-circuit fault codes buffer to backplane registers, transmitted cyclically to Profibus CI840 modules for controller loop logic and HMI fault alarming.



Field Service Pitfalls: What Rookies Get Wrong

Swapping DSAO110A 4-Channel AO Cards As Direct Drop-In Replacements

New technicians grab 4-channel spare boards without cross-checking full part numbers. Backplane pin mapping does not match, half of configured modulating valve loops go offline and the controller logs persistent bus mapping faults after restart.

• Field Rule: Only install DSAO120A for 8-point AO rack slots; store DSAO110A spares in separate bins reserved for small auxiliary control loops.

Running Loop Load Resistance Exceeding 750 Ω Per Channel

Long thin-gauge field wiring or multiple valve positioners wired in series push loop resistance above the rated limit. The output cannot reach full 20mA span, causing valve position saturation and process control bias.

• Quick Fix: Use thicker gauge shielded twisted pair cable for long runs; split high-resistance multi-positioner loads across separate AO channels.

Hot-Swapping Module With Energized Valve Loop Wiring Connected

Inductive voltage transients from live actuator wiring surge backward through the S800 backplane during card removal. This corrupts controller analog register data and can initiate unplanned process unit trips.

• Field Rule: De-energize cabinet rack power and disconnect all field analog terminal wiring before inserting or removing the DSAO120A module.
