Component Snapshot At-a-Glance

• Model: DSDP170, full factory part number 57160001-ADF
• Alt. P/N: No direct cross-compatible pulse card in S100 series; generic DSAI/DSDI modules lack high-speed counter hardware
• Product Series: ABB S100 I/O, Advant OCS, Advant MasterPiece 200/Advant Controller 450 legacy DCS platform

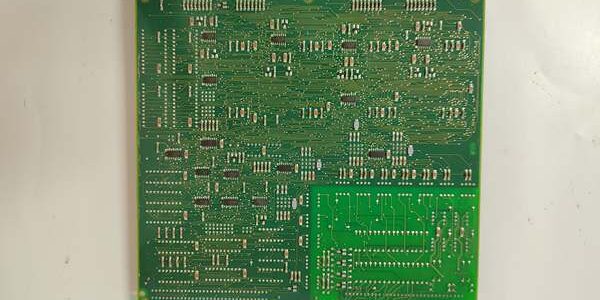

• Hardware Type: Single-slot rack mount pulse counter PCB, rear 96-pin S100 backplane connector, front multi-pin terminal header for incremental encoders
• Key Feature: Multi-channel incremental encoder input with hardware 2.5 MHz max pulse sampling, simultaneous position & RPM calculation onboard
• Primary Field Use: Capture quadrature encoder pulse signals to track conveyor length, roll speed, motor shaft position for closed-loop production line control

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary S100 parallel rack backplane bus, exchanges counter register data directly to Advant Master controllers
• Port Count: Multiple differential encoder input channels, dedicated marker pulse (Z-index) terminals per encoder group
• Baud/Data Rate: Fixed 50ms full board register refresh cycle, hardware pulse sampling independent of rack scan timing
• Operating Temperature: -25°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation between encoder field wiring and backplane logic
• Power Draw: Max 4.2W total module load, fed 24VDC from main rack backplane rail
• Max Pulse Input Frequency: 2.5 MHz quadrature/ single-ended pulse signal
• Supported Encoder Types: 24V push-pull, open collector incremental encoders with A/B/Z marker channels
• Onboard Calculation Logic: Hardware buffered position count, instantaneous speed frequency sampling
• Physical Weight: 0.38 kg, standard single slot dimension, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Standard analog and digital I/O boards rely on controller CPU software to count pulses; sampling lag above 10kHz creates cumulative position drift on high-speed paper machines and long conveyor lines. Software counting loads down the main controller, cutting available scan bandwidth for critical interlock logic.External standalone pulse counters add extra DIN rail hardware, separate 24V power supplies, and additional Modbus communication points that introduce extra fault vectors in compact MCC cabinets.Where you’ll typically find it:

• Pulp & paper mill Advant OCS DCS racks for paper reel winding speed, web length tracking and calender roll positioning
• Bulk material handling plant legacy control cabinets for long conveyor belt speed and total tonnage length measurement
• Metal processing factory rolling mill control racks for roller shaft position and linear feed length monitoringThis rack-mounted hardware counter offloads all pulse sampling and math work from the main controller, supports 2.5MHz high-speed encoder signals without position drift, and fits into existing I/O rack slots to eliminate external counter hardware.

Hardware Architecture & Under-the-Hood Logic

This module integrates dedicated hardware counter ASICs independent of the main DCS controller; no reliance on CPU polling for pulse edge detection, all position/speed values buffer to local board registers.

1. 24VDC rack backplane power feeds internal EMI filters, isolated encoder sensor excitation rails, front panel fault LED driver circuits.
2. Each encoder A/B/Z input channel routes through discrete TVS surge suppression to block voltage spikes from long field encoder cable runs.
3. Galvanic isolation barrier separates field encoder ground and backplane logic ground to eliminate ground loop induced pulse count errors.
4. Dedicated hardware counter ASIC captures rising/falling pulse edges at up to 2.5 MHz, computes direction, absolute position and instantaneous speed without controller intervention.
5. Buffered position, speed and channel fault codes transfer cyclically over the backplane; controller reads pre-calculated engineering values for HMI trending and tension control loops.

Field Service Pitfalls: What Rookies Get Wrong

Substituting Standard DSAI/DSDI Digital Input Cards For Encoder Counting

Junior technicians use generic DI/AI spare boards to wire encoder signals. Software pulse counting cannot keep up with high line speeds, position drift accumulates over production shifts and creates uneven web tension defects.

• Field Rule: Only install for high-speed encoder position measurement slots; never repurpose general digital input cards for quadrature pulse counting.

Running Unshielded Encoder Cable Parallel To VFD Power Trunks

Field crews deploy unshielded control wire for encoder wiring. Inductive noise from motor drives distorts quadrature pulse edges, causing random count jumps and false speed deviation alarms.

• Quick Fix: Install factory shielded differential encoder cable; terminate cable shield earth only at the rack terminal end, leave field encoder side shield floating.

Hot-Swapping Module With Live Encoder Wiring Terminated

Inductive voltage transients from energized encoder cables surge back through the backplane during card extraction. This corrupts controller position register data and triggers unplanned production line speed trips.

• Field Rule: Cut main rack 24VDC supply breaker and disconnect all encoder field terminals before inserting or removing the module.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
