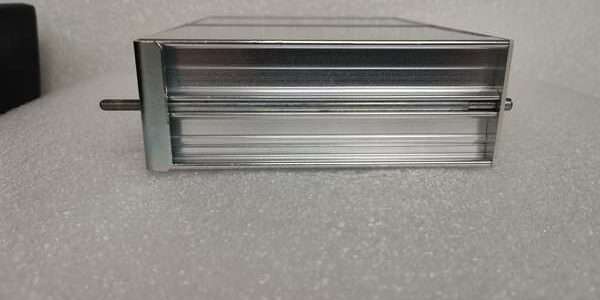

Component Snapshot At-a-Glance

• Model: TC512V1, full factory order part number 3BSE018059R1
• Alt. P/N: TC511 (short-range non-isolated modem, max 300m cable run, no surge front-end)
• Product Series: ABB System 800xA, AC800M, Freelance DCS, Advant OCS control platform accessory hardware
• Hardware Type: Compact DIN rail mount industrial serial modem, front terminal screw blocks, multi-state LED diagnostic array
• Key Feature: Balanced differential twisted pair transmission with 1500VDC galvanic isolation, supports serial runs up to 1200 meters
• Primary Field Use: Convert RS485/422 serial bus signals for long-distance transmission over standard twisted pair cable to remote transmitters, RTUs, and intelligent field devices

Hard-Numbers: Technical Specifications

• Protocol Support: RS485, RS422 physical layer, compatible with Modbus RTU, Profibus DP serial framing
• Port Count: 1 local RS485/422 serial port, 1 balanced twisted pair line port
• Baud/Data Rate: Software selectable 300 bps up to 115.2 kbps, auto baud detection hardware
• Operating Temperature: -25°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VDC galvanic isolation separating local control side and remote field line side
• Power Draw: Max 2W total module load, nominal 24VDC supply rail
• Max Transmission Distance: 1200 meters shielded twisted pair at 9.6 kbps; distance drops at higher baud rates
• Surge Compliance: IEC 61000-4-5 surge protection built into line terminals
• Topology Support: Point-to-point, multi-drop multipoint bus layouts
• Mounting Standard: 35mm industry DIN rail snap-in installation
• Physical Weight: 0.73 kg, dimensions 148.5 × 117 × 45 mm, IP20 cabinet-only rating
• Certifications: CE, UL/cUL, EN 55022 Class A industrial EMC compliance

The Real-World Problem It Solves

Native RS485 serial buses suffer severe signal attenuation beyond 300 meters of cable; remote field RTUs and tank farm instruments placed hundreds of meters from main control racks throw constant bus timeout faults during peak production loads.Unisolated serial transceivers create circulating ground loop currents across long cable trunks; VFD and transformer EMI scrambles Modbus telegrams and triggers random device offline alarms. Fiber media converters add unnecessary hardware cost and specialized fiber termination labor for sites with existing copper twisted pair infrastructure.Where you’ll typically find it:

• Combined cycle power plant substation control racks for remote generator IED and transformer temperature RTU communication
• Refinery tank farm DCS cabinets for distant level, pressure transmitters wired over long copper cable runs
• Water treatment plant distributed control layouts where pump station IEDs sit over 800 meters from main AC800M controller roomThis isolated twisted pair modem extends serial bus reach four times farther than standard RS485 transceivers, breaks cross-site ground potential offsets, and reuses existing copper wiring to avoid full fiber cable retrofit expenses.

Hardware Architecture & Under-the-Hood Logic

This unit uses dedicated differential line driver and receiver ASICs; no process control logic, only serial signal isolation, conditioning, and line coding for long cable media.

1. 24VDC cabinet power feeds internal isolated DC-DC converters to split power domains for local serial side and remote twisted pair line side.
2. Incoming /422 serial data passes TVS surge suppression before entering isolated signal buffer circuits to block cabinet electrical transients.
3. Galvanic isolation barrier fully separates controller ground and remote field device ground to eliminate circulating ground loop noise currents.
4. Differential balanced line coding rejects common-mode industrial EMI from adjacent motor and power cables, stabilizing signal integrity on kilometer-length trunks.
5. Front LED bank displays power status, active data transmit, receive traffic, and line fault loss; link state diagnostic codes can be read by controller via serial register polling.

Field Service Pitfalls: What Rookies Get Wrong

Substituting TC511 Short-Range Non-Isolated Modems As Direct Replacements

New technicians pull TC511 spare stock without matching full part number. The shorter cable limit and lack of galvanic isolation create daily serial dropout alarms on long trunk runs, and ground offset noise corrupts Modbus register values.

• Field Rule: Only install for serial runs exceeding 300 meters; store TC511 spares for short-distance cabinet internal serial wiring only.

Running Unshielded Twisted Pair Cable For Long Remote Trunks

Field crews deploy cheap unshielded control wire for the 1200m field line. Inductive coupling from high-voltage power cables distorts differential signals, triggering device communication loss during large motor startup sequences.

• Quick Fix: Deploy factory shielded twisted pair serial cable; terminate cable shield to earth ground only at the local cabinet end, leave remote end shield floating.

Hot-Swapping Module With Live Serial And Field Line Wiring Terminated

Inductive voltage transients from energized serial bus cables surge back through the controller port during module removal. This can burn the controller’s onboard serial transceiver chip and cut all remote field device communication.

• Field Rule: De-energize the 24VDC supply breaker and disconnect both local serial and remote twisted pair terminals before removing or inserting the modem unit.
