Component Snapshot At-a-Glance

• Model: GE VMIVME-4140 (Original VMIC, later Abaco VME-4140; suffix -000 discrete wire terminal version)
• Alt. P/N: VMIVME-4130 (16-channel AO low-density variant); VMIVME-4240 (analog input VME card); VMIVME-7750 (VME CPU, unrelated I/O)
• Product Series: GE VMIC / Abaco 6U VMEbus Rev.C.1 industrial analog I/O module family, widely deployed on GE Mark V / Mark VI turbine control systems

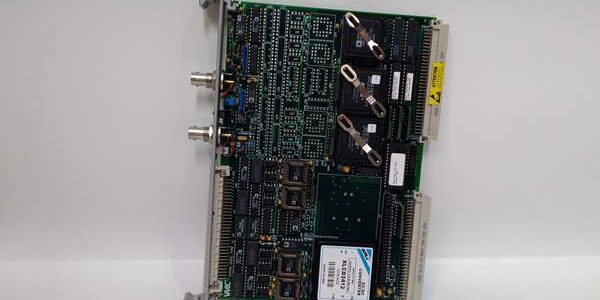

• Hardware Type: Standard 6U single-slot VME Eurocard PCB, rear P1/P2 VME backplane connectors, front multi-pin analog output terminal block + isolated BNC reference port, front power/run diagnostic LED, onboard dedicated DAC per channel
• Key Feature: 32 independent 12-bit DAC analog voltage output channels, double-buffered synchronous update, software-selectable uni/bipolar voltage ranges, per-channel short-circuit protection, automatic full-channel self-calibration, offline field disconnect relay, random non-scanning channel write mode
• Primary Field Use: Convert VME CPU digital setpoints to precision analog voltage signals to drive turbine steam valves, boiler dampers, test bench actuators, and modulating process equipment on power plant VME real-time control racks running VxWorks.

Hard-Numbers: Technical Specifications

• Protocol Support: VMEbus Rev.C.1 32-bit parallel backplane, no external fieldbus
• Port Count: 32 analog voltage output terminals, front BNC reference voltage access, rear P1/P2 VME system connector
• Update Mode: Random single-channel write or synchronous global simultaneous channel update via software/external trigger
• Operating Temperature: 0°C ~ +70°C cabinet operational; -40°C ~ +85°C storage (rugged conformal coated versions)
• Isolation Rating: No channel-to-backplane galvanic isolation; analog front-end with ±25V 1s transient overvoltage suppression
• Power Draw: Max 5W total module load, powered via VME backplane +5V / ±12V rails
• Output Electrical Specs:
  • Resolution: 12-bit dedicated DAC per channel
  • Max drive current: ±10mA per channel
  • Output impedance: <0.8Ω
  • Supported voltage ranges (software select):Unipolar: 0~2.5V / 0~5V / 0~10VBipolar: ±2.5V / ±5V / ±10V
• Protection: Unlimited continuous short-circuit withstand per channel
• Calibration: Single front trim pot reference; auto offset/gain calibration triggered by reset or software command; gain/offset coefficients stored in onboard RAM
• Diagnostics: Full onboard self-test, front panel power/run LED, offline field disconnect function for bench calibration
• EMC Compliance: CE Class A industrial EMI, MIL-STD-810 shock/vibration rated for turbine cabinet environments
• PCB Treatment: Conformal coated anti-humidity PCB for power station, shipboard embedded control racks
• Physical Weight: 0.72kg standard 6U VME single slot form factor

The Real-World Problem It Solves

Low-density 16-channel AO VME cards consume double rack slots for large valve/damper control systems, adding extra wiring terminals prone to vibration corrosion in turbine cabinets.Shared multiplexed single-DAC AO boards suffer channel crosstalk and scan lag; VMIVME-4140 uses one independent DAC per channel for zero crosstalk and instant random single-channel updates critical for fast turbine governor response.Fixed-range analog boards require external signal conditioners to switch voltage spans; this model supports six software-selectable voltage ranges without extra hardware.Built-in auto-calibration eliminates manual channel trim for every loop, cutting field maintenance hours on multi-valve turbine control racks.Where you’ll typically find it:

• Fossil & combined cycle power plant GE Mark V/VI turbine VME control racks for steam/gas fuel valve positioning
• Nuclear plant auxiliary boiler real-time analog modulation control systems
• Military aerospace engine test stand VME instrumentation racks
• Pulp & paper legacy VMIC VME DCS modulating damper control cabinetsThis high-density 32-channel independent DAC analog output board delivers high-speed, crosstalk-free voltage drive for critical process modulating equipment, reduces rack slot consumption by half vs 16-channel alternatives, and integrates self-calibration and fault protection to minimize unplanned turbine control downtime.

Hardware Architecture & Under-the-Hood Logic

This module carries a dedicated I/O control ASIC managing all DAC timing, double-buffer registers and self-test routines; all control setpoint values originate from the host VME single-board CPU over the VME backplane.

1. VME backplane P1 connector pulls standard +5V/±12V power rails to power 32 independent DAC chips, analog output drivers, diagnostic logic and front LED circuit.
2. Each channel features isolated TVS transient suppression and solid-state short-circuit protection to prevent single-channel faults from collapsing the entire board.
3. Double-buffered register architecture allows preloading all 32 channel setpoints before a single synchronous trigger simultaneously updates every analog output for perfectly coordinated valve positioning.
4. Onboard auto-calibration logic cycles through all six voltage ranges for every channel, measuring offset/gain error and storing correction coefficients to volatile RAM on power-up reset or software command.
5. Front panel relay bank disconnects all field analog wiring from the DAC circuits for offline calibration and self-test without disconnecting field terminal cables.
6. Front BNC port provides direct access to precision reference voltage for bench calibration verification without opening cabinet wiring troughs.

Field Service Pitfalls: What Rookies Get Wrong

Swapping Low-Density VMIVME-4130 16CH AO Cards In Place Of VMIVME-4140

New technicians substitute 16-channel AO spares without matching full part number. Half the required valve/damper output channels are missing; VME CPU I/O mapping faults disable critical turbine governor control loops.Field Rule: Only deploy VMIVME-4140 for 32-channel analog output rack slots; store 16-channel VMIVME-4130 spares in separate labeled storage bins for small auxiliary control systems.

Hot-Swapping Module While VME Chassis Power Remains Energized

Junior crews extract the VMIVME-4140 board with rack power active. Hot removal generates backplane voltage transients that corrupt turbine control CPU memory and trigger full unit load rejection trips.Quick Fix: Fully shut down VME chassis main breaker, wait 30 seconds for power rail discharge before inserting or removing the analog output module.

Driving Low-Impedance Loads Exceeding ±10mA Per Channel

Field crews wire multiple parallel valve actuators to one AO channel. Combined load current exceeds 10mA drive limit, causing voltage sag, valve hunting and continuous channel overcurrent fault flags.Field Rule: Max ±10mA resistive load per VMIVME-4140 channel; multi-actuator circuits require external isolated signal amplifiers to split load current.
