Component Snapshot At-a-Glance

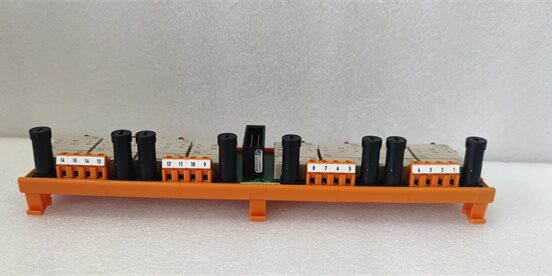

• Model: HONEYWELL FC-TSRO-0824 V1.1, Safety Relay Output FTA (Field Termination Assembly)
• Alt. P/N: FC-TSDO-0824C (solid-state 24V DO FTA, no relay contacts); FC-TRO-0824 (non-SIL standard relay FTA); FC-TDO-1624 (16-channel transistor output FTA)
• Product Series: Honeywell Safety Manager / FSC Fail Safe Control SIL3 safety system matching FTA termination board family
• Hardware Type: Horizontal rack-mount PCB FTA, center male backplane connector mating safety logic controller DO card, front orange screw terminal banks, independent channel status red LEDs, built-in miniature SPDT safety relays
• Key Feature: 8 fully floating non-common SPDT relay output channels, per-channel 5AT slow-blow fuse, 1500V channel isolation, TUV certified SIL3 safety integrity, dry contact high voltage switching capability
• Primary Field Use: Bridge Safety Manager logic digital output signals to field ESD solenoid valves, emergency shutdown annunciator beacons, motor trip interlock relays, and fire/gas alarm loads in refinery, chemical, power plant safety racks.

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary Safety Manager parallel backplane bus, no onboard fieldbus
• Port Count: 8 independent SPDT floating relay output terminal groups, central backplane logic connector
• Scan Cycle: Safety rack fixed 50ms safety logic scan refresh
• Operating Temperature: -20°C ~ +70°C cabinet operational; -40°C ~ +85°C storage
• Isolation Rating: 1500Vrms dielectric isolation between channel-to-channel and channel-to-backplane logic
• Power Draw: Typical 40mA @ 24VDC rack supply; max 4.8W total module load
• Input Power Range: 19.2–36VDC nominal 24VDC safety rack power
• Relay Contact Rating: Max 5A fused resistive load; 250VAC / 250VDC max switching voltage; max 1250VA / 150W switched power
• Minimum Load Current: 1mA @ 5VDC (prevents dry contact oxidation)
• Safety Certification: TUV, UL, CSA, CE; IEC 61508 SIL3 full safety compliance
• Overcurrent Protection: Individual 5AT slow-blow fuse per output channel
• PCB Treatment: Full anti-corrosion conformal coating for corrosive chemical plant MCC cabinets
• Physical Weight: 0.53kg standard single safety rack slot form factor
• Dimensions: 300 × 70 × 60 mm

The Real-World Problem It Solves

Directly wiring high-voltage AC/DC safety loads to safety controller main logic cards destroys internal transistor circuits; this FTA isolates high power field loads from low-voltage safety logic via mechanical relays.Unfused shared-rail relay boards create single-point failure—one shorted load disables all channels; FC-TSRO-0824 independent fuses limit fault to only the affected channel without full module shutdown.Non-floating commoned relay outputs create ground loop current leakage that triggers spurious ESD trips during VFD motor switching transients; fully isolated floating SPDT contacts eliminate ground reference interference.Where you’ll typically find it:

• Oil & gas refinery Safety Manager ESD cabinet racks for shutdown solenoid valve interlocks
• Chemical plant reactor fire/gas safety control cubicles for alarm beacon & trip relay drives
• Coal-fired power plant boiler furnace safety shutdown MCC racksThis SIL3 certified relay termination FTA separates low-power safety logic from high-current field safety loads, provides channel-by-channel fault containment, and eliminates nuisance safety trips caused by industrial electrical noise and ground offset.

Hardware Architecture & Under-the-Hood Logic

This FTA contains no safety processing MCU; it acts as galvanic isolation relay buffer between Safety Manager main rack DO logic card and field safety loads. All safety trip logic resides on the main safety controller card.

1. 24VDC backplane rack power feeds internal EMI filter to strip VFD/MV breaker switching noise before energizing onboard relay coil drive circuits.
2. Each channel uses independent SPDT mechanical safety relay with flyback suppression diodes to absorb inductive kickback from solenoid valve coils.
3. Per-channel slow-blow fuse provides short-circuit protection; blown fuse cuts only its own channel without disrupting other safety interlock paths.
4. Floating contact design eliminates common ground rail; each relay NO/NC terminals have zero electrical reference to rack logic ground to break ground loop voltage offsets.
5. Front panel red LED per channel: lit = relay energized (safety output active), off = de-energized safe state; fast visual troubleshooting without safety workstation software.

Field Service Pitfalls: What Rookies Get Wrong

Swapping FC-TSDO-0824 Solid-State Transistor FTA In Place Of FC-TSRO-0824

New technicians substitute solid-state DO FTA without matching part number. Transistor-only boards cannot switch 250VAC high voltage safety solenoid loads; contact ratings mismatch violates SIL3 safety certification and triggers unplanned ESD failures.Field Rule: Only deploy FC-TSRO-0824 for high-voltage AC/DC safety interlock relay loads; store solid-state TSDO series FTA for low-voltage 24V DC field signals only.

Hot-Swapping FTA While Live Safety Solenoid Field Wiring Remains Terminated

Junior crews pull the FC-TSRO-0824 module while ESD valve wiring stays energized. Open-circuit inductive kickback transients surge backward through the safety backplane, corrupting safety logic registers and triggering unplanned full plant ESD shutdowns.Quick Fix: Lock out all cabinet safety power breakers, de-energize all field solenoid/annunciator wiring at terminal blocks before extracting the FTA board.

Oversizing Load Current Over 5A Per Relay Channel

Rookies wire multiple high-current shutdown solenoids in parallel to one channel. Total load exceeds 5A fuse rating, blowing channel fuse and disabling critical safety interlock path without backup.Field Rule: Max one 5A resistive safety load per FC-TSRO-0824 channel; multi-solenoid circuits require intermediate auxiliary safety relays to split load current.
