Component Snapshot At-a-Glance
- Model: HONEYWELL 05701-A-0361 (Zellweger Analytics System 57 rack single channel gas detection engineering card)
- Alt. P/N: 05701-A-0360 (older firmware non-Modbus variant); 05701-A-0362 (dual-channel gas rack card, incompatible backplane pinout)
- Product Series: Honeywell System 57 modular rack gas safety monitoring system

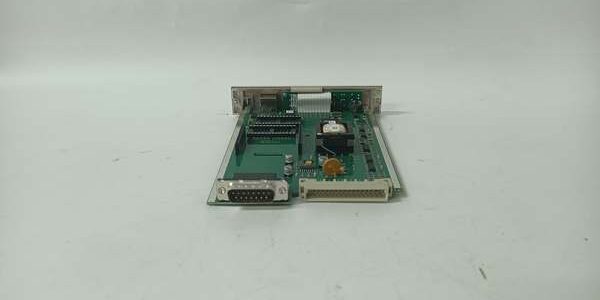

- Hardware Type: Horizontal plug-in rack PCB, front panel LCD display + membrane keypad, 8-pin circular service port, orange heavy-duty terminal block, rear D-Sub + DIN rack backplane edge connector
- Key Feature: Single-channel 4–20mA gas detector input, built-in 24V sensor loop power, 3 independent Form-C alarm relays, isolated Modbus RTU, local concentration readout & calibration keypad
- Primary Field Use: Condition signals from catalytic bead, IR, electrochemical toxic/combustible gas transmitters; manage low/high gas alarms, drive annunciators, and send gas concentration data to plant DCS/PLC in refinery, chemical, and power plant safety racks.
Hard-Numbers: Technical Specifications
- Protocol Support: Modbus RTU over isolated RS485, proprietary System 57 rack backplane bus
- Port Count: 1 x 4–20mA gas detector input terminal bank, 3 x Form-C relay output terminals, 1 x 8-pin circular service jack, rear rack backplane connector
- Baud/Data Rate: Modbus selectable 9600 / 19200 bps; internal gas sample scan cycle 100ms
- Operating Temperature: -20°C to +70°C cabinet operational; -40°C to +85°C storage
- Isolation Rating: 1500Vrms opto-isolation for analog input, Modbus communication and relay circuits
- Power Draw: Max 4.8W, 200mA typical draw at nominal 24VDC rack supply
- Main Input Power: 20–30VDC industrial cabinet control battery, nominal 24VDC
- Sensor Compatibility: 2-wire / 3-wire 4–20mA combustible (0–100% LEL) & toxic gas transmitters
- Relay Contact Rating: 250VAC / 30VDC, 5A resistive per Form-C alarm relay
- Analog Output: Isolated 4–20mA retransmission output for DCS trending
- EMC Compliance: IEC 61000-6-2 industrial surge, VFD noise and cabinet vibration immunity
- PCB Treatment: Conformal coated anti-corrosion PCB for high-humidity chemical plant MCC cabinets
- Physical Weight: 0.5kg single standard System 57 rack slot form factor
The Real-World Problem It Solves
Separate standalone gas detector transmitters without rack cards require individual wall-mounted displays and extra wiring runs that corrode in corrosive chemical plant environments. Multi-channel rack cards waste rack space for single-sensor monitoring points.Unisolated gas signal wiring creates ground loop voltage skew from long field cable runs; EMI noise generates false gas high/low alarms during large motor/VFD startup transients. This card integrates local readout, calibration keypad, alarm relays and DCS communication all in one rack slot.Where you’ll typically find it:
- Oil & gas refinery process safety rack cabinets for LEL, H2S, CO gas detection transmitters
- Chemical plant reactor and storage area gas monitoring System 57 rack systems
- Coal-fired power plant boiler room toxic gas safety control cubiclesThis single-channel rack gas controller eliminates multiple standalone field display units, delivers local on-panel calibration without laptop software, and isolated circuits prevent nuisance safety alarms from industrial electrical noise.
Hardware Architecture & Under-the-Hood Logic
This rack card carries a dedicated gas signal processing MCU with dedicated analog front-end conditioning; all gas concentration conversion, alarm threshold logic, relay drive and Modbus communication runs locally on the module, no external signal processing hardware required.
- 24VDC rack backplane power feeds internal multi-stage LC EMI filter and isolated DC-DC regulator to power gas sensor excitation circuit, LCD display, keypad scanner, relay coils and Modbus transceiver.
- 4–20mA gas detector input passes TVS surge suppression and galvanic isolation barrier to break field ground and rack control ground potential differences.
- Onboard MCU converts raw mA loop current to scaled gas concentration units (%LEL / ppm); user-configurable low/high alarm thresholds stored to non-volatile memory via front panel keypad.
- Three independent Form-C relay banks energize/de-energize based on gas concentration crossing set thresholds; relay flyback suppression protects internal logic from inductive load kickback.
- Isolated RS485 Modbus exports live gas readings, fault codes, alarm status and run hours to central plant DCS; front panel LCD and multi-color LED bank provide instant visual diagnostics without workstation access.
Field Service Pitfalls: What Rookies Get Wrong
Swapping Older Non-Modbus 05701-A-0360 Or Dual-Channel 05701-A-0362 Cards In Place Of 05701-A-0361
New technicians grab alternate System 57 spares without matching full part number. 05701-A-0360 lacks Modbus communication, DCS cannot pull gas trend data; dual-channel 0362 has mismatched backplane pin mapping, rack controller throws constant module mapping faults and loses all gas monitoring visibility.Field Rule: Only deploy 05701-A-0361 for single-channel Modbus gas rack slots; segregate non-Modbus and dual-channel spares in separate clearly labeled storage bins.
Running Unshielded Gas Detector Cable Parallel To VFD Motor Power Harnesses
Wiring crews route cheap unshielded 4–20mA sensor cable alongside variable frequency drive three-phase power wiring. Inductive EMI distorts gas mA signal values, triggering random false high-gas safety alarms during mill/motor startup cycles.Field Rule: All field gas transmitter wiring must use shielded twisted pair routed in dedicated signal-only cable trays; single-point shield ground only at the System 57 rack cabinet terminal block.
Skipping Annual Calibration Via Front Panel Keypad
Field crews skip zero/span calibration using the front membrane buttons; sensor drift over months shifts gas concentration readings, leading operators to misjudge hazardous gas levels and miss critical safety alarms.Field Rule: Perform full zero & span calibration via front panel keypad every 12 months; log calibration dates to plant safety maintenance records for compliance audits.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
