Component Snapshot At-a-Glance

• Full Model: PIB102A
• Manufacturer Part Code: 3BEB0180
• Brand: ALSTOM / Converteam (legacy ALSPA P320 S3/S4 turbine & generator control platform, later GE Grid Solutions)
• Alt P/N: PIB102B (enhanced fault diagnostic version); PIB100G (mixed analog+digital multi-function board, not pure DI)
• Product Series: PIB peripheral interface board family, standard 6U VME rack plug-in module, compatible with BGTR8HE rack power supply

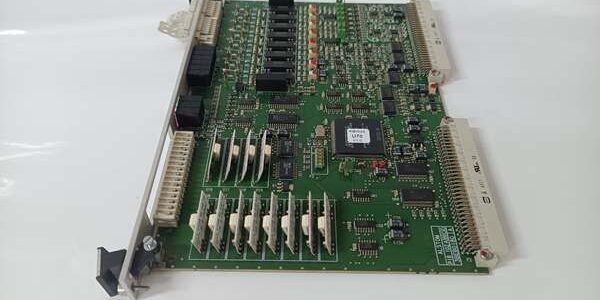

• Hardware Type: 6U VME single PCB rack plug-in digital input front-end board, dual gold-plated rear VME edge connector, front panel terminal block + channel status LED array, full acrylic conformal coated industrial PCB
• Key Feature: 32-channel fully opto-isolated 24VDC digital input dedicated board, independent channel surge suppression, open/short circuit self-diagnosis, deterministic VME backplane data upload, single-function high-density DI expansion to complement multi-purpose PIB100G
• Primary Field Use: Collect all field 24VDC binary status signals: breaker open/close auxiliary contacts, protection relay fault flags, valve position feedback, turbine governor limit switches, generator excitation interlock signals; isolate noisy field contacts and convert to VME rack logic level for main CPU processing

Hard-Numbers: Technical Specifications

• System Compatibility: ALSPA S3 / S4 VME control rack
• Supply Power: 24VDC rack logic power (19.2–30VDC nominal), typical power consumption 4W
• Digital Input Channels: 32 independent opto-isolated DI channels, grouped 8 channels per isolated bank
• Input Signal Level: 24VDC wet contact; logic 1 ≥18VDC, logic 0 ≤6VDC
• Channel Isolation: 2500Vrms opto-isolation between field side and VME logic ground, eliminate ground loop interference
• Built-In Protection: TVS lightning surge suppression per channel, reverse polarity blocking, channel short-circuit current limiting
• Diagnostic Function: Per-channel open-circuit / short-circuit detection, front LED indicates channel active/fault state
• Backplane Bus: VME64 standard, real-time deterministic data refresh rate 10ms
• Communication Interface: Only rear VME backplane bus; no front Ethernet/RS485 port (pure input acquisition board)
• Operating Temperature: -20℃ ~ +60℃ cabinet operational; storage -40℃ ~ +85℃
• EMC Standard: IEC 61000-6-2 heavy industrial immunity (substation switching surge, VFD noise)
• PCB Treatment: Full conformal anti-sulfur / anti-salt fog coating for coastal, refinery power plants
• Physical Dimension: 6U VME standard, 263 × 58 × 28mm; weight 0.43kg
• Mounting: Hot-swappable VME rack slot, anti-vibration locking clip

The Real-World Problem It Solves

Mixed-function PIB100G only integrates limited DI channels (16-channel max); large turbine/generator control racks carry dozens of breaker, valve and interlock binary signals, requiring multiple PIB100G boards and occupying excessive rack slots. PIB102A provides dedicated 32-channel high-density DI to expand input capacity with single slot occupation.Unisolated contact inputs create severe common-mode voltage noise; signal distortion causes CPU to misjudge breaker status, triggering false generator trip or interlock block logic. Independent channel opto-isolation fully decouples field ground and rack control ground.Discrete external opto-isolator terminal blocks add dozens of wiring splices prone to loose contact under plant thermal cycling; all isolation, filtering and surge protection integrated onboard to reduce cabinet wiring workload.PIB102B enhanced diagnostic version costs higher for standard monitoring cubicles; cuts spare part cost for conventional breaker status monitoring schemes without redundant advanced fault reporting.Where you’ll typically find it:

• Steam/gas turbine governor & generator excitation ALSPA S3/S4 control racks
• Power plant main transformer protection cubicle breaker auxiliary signal collection cabinets
• Refinery large MV compressor unit interlock and valve feedback monitoring racks
• Hydro generator stator protection cabinet binary fault flag acquisition panelsThis dedicated 32-channel digital input VME board expands rack binary signal acquisition capacity, integrates full channel isolation and surge protection, reduces cabinet wiring and spare inventory compared to multi-function mixed signal PIB boards.

Hardware Architecture & Under-the-Hood Logic

Three independent circuit zones fully separated by optocoupler isolation barriers, no cross-domain noise crosstalk: field input zone, logic conversion zone, VME backplane communication zone.

1. 24VDC field contact signals enter per-channel RC low-pass filter + TVS surge suppression circuit, filter out substation switching transient noise before isolation stage.
2. Independent optocoupler bank converts field-side 24V contact signal to 5V logic level, fully isolating field ground potential shift from rack CPU logic ground to eliminate ground loop offset.
3. Onboard parallel signal latch chip buffers all 32-channel DI status, periodically uploads complete channel state data to VME backplane via rear gold-plated edge connector on fixed 10ms cycle.
4. Front panel individual LED for each channel: green = contact closed (logic 1), off = contact open (logic 0); abnormal channel flashes red for open/short circuit fault alarm for rapid on-site inspection.
5. Onboard DC-DC isolated power regulator draws stabilized 24VDC rack power, generates isolated 5V logic power for signal latch and VME transceiver circuits, independent channel short-circuit protection avoids full board shutdown from single faulty field wire.
6. Lockable slide-in VME design prevents loose backplane contact caused by long-term temperature cycling; conformal coated PCB prevents trace corrosion in corrosive industrial cabinets.

Field Service Pitfalls: What Rookies Get Wrong

Swapping PIB102B Enhanced Diagnostic Variant For Standard 3BEB0180

New technicians install PIB102B spare without matching part code. Upper-level DCS SCADA logic does not support extended fault diagnostic data registers, triggering constant board communication alarm and channel status data mismatch.Field Rule: 3BEB0180 mandatory for standard breaker status monitoring racks; PIB102B only for unit critical turbine protection racks requiring advanced channel fault diagnosis. Segregate two variants in locked labeled spare storage bins.

Hot-Swap Board Without Isolating All Field 24VDC DI Wiring

Apprentices pull while live field contact wiring connected. Unfiltered 24V switching transients surge back into VME backplane, damage adjacent PIB100G signal conditioning board sampling circuits.Quick Fix: Before removing module, cut all field 24VDC input power supply at cabinet terminal block, confirm all DI channels de-energized before hot swap.

Routing Unshielded Field Contact Cables Parallel To BGTR8HE Power Supply DC Output Wiring

Maintenance crews run raw DI control cables alongside rack power supply wiring. Switching EMI distorts binary signal levels, CPU randomly misreads breaker open/closed status during MV breaker switching events.Field Rule: All 24VDC DI field wiring use shielded twisted pair, routed in dedicated signal cable trays separated from DC power wiring; single-point shield ground only at the PIB rack terminal side.

Deploying Uncoated Surplus Boards In Coastal/Refinery Corrosive Cubicles

Field crews install uncoated used boards without checking PCB conformal coating. Sulfur and salt fog corrode optocoupler and trace pads within 3–6 months, causing intermittent channel signal loss and random interlock misoperation.Field Rule: Only fully conformal coated 3BEB0180 modules permitted in chemical, coastal, offshore power plant cabinets; re-coat bare PCB surplus before rack installation.

Overloading Single DI Channel With External Relay Coil Load

Techs wire large auxiliary relay coils directly to DI input terminals. Channel current exceeds optocoupler rated limit, burns internal input circuit and permanently disables the channel.Field Rule: DI channels are signal input only, cannot drive external loads; all relay coils must be wired to separate DO output boards.
