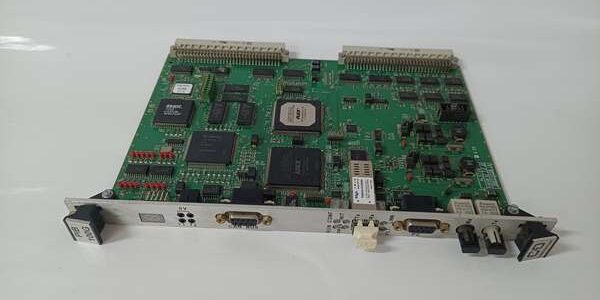

Component Snapshot At-a-Glance

• Full Model: PIB100G
• Part Code: 3BEE0226
• Manufacturer: ALSTOM / Converteam (legacy ALSPA control platform, later GE Grid Solutions)
• Alt P/N: PIB100A / PIB100E (lower channel count variants, incompatible firmware); 3BEE0227 (updated hardware revision)
• Product Series: ALSPA VME rack peripheral interface board family, matched to BGTR series rack power supply and Midos relay control cubicles
• Hardware Type: Standard 6U VME rack plug-in PCB module, front panel multi-port terminal + communication connectors, dual VME backplane gold edge connectors, full conformal coated industrial PCB
• Key Feature: Integrated dual functions: station DC power distribution interface + analog/digital signal conditioning + galvanic isolation + front-end communication gateway; multi-channel CT/PT signal filtering, surge suppression, VME bus data forwarding for turbine governor, generator protection and substation automation logic
• Primary Field Use: Front-end signal conditioning and power distribution hub for ALSPA control racks; convert raw field CT/PT analog signals, breaker status digital inputs, turbine speed pulse signals into isolated standardized logic levels for main CPU boards; distribute stabilized 24VDC rack power to all I/O daughtercards, act as local communication bridge between field devices and rack VME bus.

Hard-Numbers: Technical Specifications

• Power Input: Wide range 18–36VDC station control battery nominal 24VDC
• Onboard Power Regulation: Multi-channel isolated DC-DC converters, 5V/±15V logic supply for rack daughterboards
• Signal Channels:
  • Analog input: 8-channel isolated CT/PT 0–10V / 4–20mA signal conditioning
  • Digital DI/DO: 16-channel opto-isolated 24VDC status/control contact channels
  • Pulse input: Dual speed pickup frequency channels for turbine/generator RPM monitoring
• Communication Interfaces (Front Panel): RS485, Ethernet, fiber optical transceiver port for long-distance field signal isolation
• Backplane Bus: VME64 standard rack backplane interface, deterministic real-time data exchange
• Isolation Grade: 2500Vrms galvanic isolation between field side and rack logic side, eliminates ground loop interference
• Built-In Protections: Input reverse polarity, overvoltage, short-circuit, over-temperature, lightning surge TVS suppression on all field terminals
• Operating Temperature: -20℃ ~ +65℃ cabinet operational; storage -40℃ ~ +85℃
• EMC Compliance: IEC 61000-6-2 industrial heavy immunity (substation switching surge, VFD noise)
• Mounting: 6U VME standard rack hot-swappable plug-in form factor
• PCB Treatment: Full acrylic conformal coating, anti-sulfur, anti-salt fog for coastal/refinery power plants
• Physical Weight: 0.75kg single board module

The Real-World Problem It Solves

Discrete standalone signal isolators and external power distribution terminal blocks occupy multiple rack slots, add hundreds of vibration-prone wiring splices that drift open under plant thermal cycling. integrates power feed, signal filtering, isolation and communication gateway onto one single VME board to reduce cabinet wiring complexity.Unisolated raw CT/PT field signals create severe ground loop offset; differential MFAC and voltage MVTU protection relays generate random nuisance trips caused by common-mode voltage noise. Built-in opto-isolation fully decouples field ground and rack control ground to eliminate this risk.Separate external RS485/Ethernet communication cards require extra backplane slots and separate power feeds; embeds multi-protocol communication transceivers to directly bridge field equipment to the rack VME CPU bus without extra hardware.Low-channel PIB100A/E variants cannot support fully populated generator/turbine racks with multi-feeder CT/PT monitoring; expands analog/digital channels to handle full unit protection signal collection in one board.Where you’ll typically find it:

• Fossil power plant steam/gas turbine governor & generator excitation ALSPA control racks
• Refinery primary MV switchgear bus differential, distance protection cubicles paired with BGTR8HE rack power supply
• Hydroelectric generator stator protection and speed monitoring control cabinets
• Urban distribution substation ring bus feeder automation VME control racksThis single VME plug-in interface board unifies rack power distribution, multi-type field signal conditioning, galvanic noise isolation and multi-protocol communication gateway, cutting spare part inventory and rack wiring workload for critical power generation & transmission control systems.

Hardware Architecture & Under-the-Hood Logic

This unit adopts three-layer independent circuit zoning: power regulation zone, field signal conditioning zone, VME bus digital logic zone, fully isolated via optocoupler and transformer barriers, no cross-domain noise crosstalk.

1. 24VDC station battery input enters multi-stage LC EMI filter front-end, onboard DC-DC converters generate stabilized isolated 5V/±15V logic power to supply all rack I/O daughtercards, with independent channel short-circuit protection for each load branch.
2. Field CT/PT analog signals, breaker digital status contacts, turbine speed pulse signals pass through RC low-pass filter + TVS surge suppression circuit, then opto-isolation stage to strip common-mode ground noise, convert to standardized logic levels for onboard DSP sampling.
3. Onboard dedicated signal processing DSP performs real-time analog filtering, linearization, frequency conversion for speed signals, packages all sampled data into VME bus frames and forwards to rack main CPU board via rear VME edge connector.
4. Front-panel RS485/Ethernet/fiber communication transceivers act as local protocol gateway, exchange data with remote field IEDs, PT monitoring units and SCADA annunciator panels independent of main CPU load.
5. Front panel multi-color LED status indicators: rack power healthy, analog channel fault, digital input loss, communication link down, board overheat for direct on-site troubleshooting without workstation access.
6. Dual-sided gold-plated VME edge connectors with anti-vibration locking clip design, prevent loose backplane contact from long-term plant load thermal cycling; conformal coated PCB prevents corrosion in chemical and coastal substations.

Field Service Pitfalls: What Rookies Get Wrong

Swapping Low-Channel PIB100A/E Variant For Full-Function Board

New technicians install PIB100A/E spare without matching 3BEE0226 part code. Reduced analog/digital channel count leaves multiple CT/PT and breaker status signals unmonitored, generator/turbine protection creates blind fault detection zones.Field Rule: 3BEE0226 mandatory for full unit generator/turbine control racks; PIB100A/E only allowed for small single-feeder compact cubicles. Segregate PIB100 series variants in locked labeled spare storage bins.

Hot-Swap Board Without Isolating Field CT/PT Wiring

Apprentices pull while live CT secondary circuits connected. Open CT terminals generate lethal kilovolt surge, damage upstream MCGG/MFAC protection relay sampling circuits and create electric shock hazard.Quick Fix: Before removing module, short all CT secondary terminals at field terminal block, disconnect PT voltage wiring and cut field 24VDC DI/DO power supply.

Routing Unshielded CT/PT Signal Cables Parallel To Rack Power Output Wiring

Maintenance crews run raw field analog cables alongside BGTR8HE power supply DC output wiring. Switching EMI distorts CT/PT sampled values, differential and voltage supervision relays trigger random nuisance trips during breaker switching.Field Rule: All CT/PT analog wiring must use shielded twisted pair, routed in dedicated signal cable trays separated from power DC wiring; single-point shield ground only at the rack terminal side.

Deploying Uncoated Surplus Boards In Coastal/Refinery Corrosive Cubicles

Field crews install uncoated used boards without checking PCB conformal coating. Sulfur and salt fog corrode PCB trace pads and signal isolation circuits within 3–6 months, causing intermittent signal loss and communication dropout.Field Rule: Only fully conformal coated 3BEE0226 modules permitted in chemical, coastal, offshore power plant cabinets; re-coat bare PCB surplus before rack installation.

Overloading Onboard DC-DC Power Branches With External Auxiliary Loads

Techs connect cabinet lighting, heater, door interlock auxiliary loads directly to regulated logic power terminals. Excess load triggers channel overcurrent lockout, all rack signal sampling and communication functions shut down completely.Field Rule: Onboard regulated power output exclusively reserved for internal rack I/O daughtercards; all non-protection auxiliary loads must connect to separate BGTR rack power supply auxiliary terminals.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
