Component Snapshot At-a-Glance

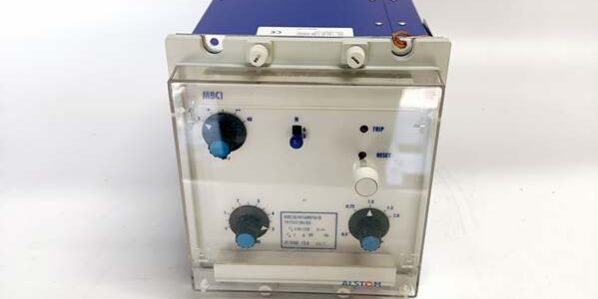

• Model: MBCI01N1AB0761B
• Alt. P/N: MBCI01B1AB0761B (medium-burden backplane power variant, higher rack draw); 3BE series (standalone discrete I/O, no backplane bus bridge)
• Product Series: ALSTOM Symphony Harmony / Symphony Plus DCS backplane communication interface family
• Hardware Type: Rack plug-in blue metal chassis bus bridge module, conformal coated PCB, front diagnostic LED bank, edge backplane connector
• Key Feature: N-series low backplane power draw, 2.5kV opto-isolation between S-Net bus and field I/O daughtercards, proprietary parallel/serial rack communication protocol
• Primary Field Use: Bridge DCS CPU backplane to field discrete I/O daughtercards, isolate control logic from cabinet EMI and ground loop transients.

Hard-Numbers: Technical Specifications

• Protocol Support: ALSTOM proprietary S-Net rack backplane bus, no Modbus/DNP native support; front service debug port
• Port Count: Rear edge backplane bus connector, multi-channel daughtercard expansion header, front test diagnostic port
• Baud/Data Rate: Deterministic rack scan cycle, fixed 1ms base refresh for discrete I/O
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2500Vrms galvanic opto-isolation between bus logic and field I/O circuits
• Power Draw: Low-burden N variant, total rack consumption <10W fully loaded with daughtercards
• Backplane Supply: +5VDC, ±15VDC from system rack chassis power
• Supported Daughtercard Count: Up to 4 discrete I/O sub-boards per MBCI01 carrier
• Contact Channel Rating: 24VDC field contact sensing, 5A relay output switching capacity
• Humidity Tolerance: 5%–95% non-condensing, salt mist resistant conformal PCB coating
• Physical Weight: 0.58kg fully assembled plug-in module

The Real-World Problem It Solves

Direct hardwiring of field I/O to DCS CPU creates massive ground loops and switching EMI noise. Random false DI/DO chatter triggers unplanned motor trips and false fault alarms in refinery MCC and boiler control racks.Stacking multiple standalone I/O cards without a dedicated bus carrier wastes rack slots and multiplies backplane wiring splices that corrode in coastal/offshore corrosive cabinet air.Medium-burden MBCI01B variants pull excessive current from shared rack power supplies; multiple carrier cards loaded simultaneously drop backplane voltage and cause intermittent CPU I/O dropout.Legacy 3BE I/O modules lack integrated galvanic isolation; lightning surges and MV switching transients punch through PCB traces and burn main controller logic boards.Where you’ll typically find it:

• Fossil power plant boiler feedwater, furnace draft Symphony DCS control racks
• Refinery process unit valve position, motor trip discrete signal interface cabinets
• Pulp & paper mill steam turbine auxiliary automation legacy Symphony retrofitsThis single rack plug-in carrier consolidates up to four I/O daughtercards, adds full galvanic isolation, and minimizes shared rack power loading for dense DCS automation cabinets.

Hardware Architecture & Under-the-Hood Logic

This unit uses dedicated bus transceiver ASIC and multi-channel optocoupler isolation matrix, no user programmable firmware, hardwired fixed scan logic for deterministic I/O polling. It mounts directly to standard ALSTOM Symphony 19-inch DIN chassis backplanes.

1. Rack backplane CPU bus signals feed isolated transceiver circuitry; optocoupler barrier blocks ground potential shifts between control room and field equipment.
2. Onboard scan sequencer polls all connected daughtercards in fixed 1ms intervals, buffers raw DI/DO status data for S-Net bus transmission to main CPU.
3. Independent isolated output driver circuits switch 24VDC field relay loads without feeding inductive kickback voltage back to DCS core logic.
4. Low-wattage N-series power regulation circuit limits total rack current draw, preventing shared backplane voltage sag when multiple carrier modules run full load at once.
5. Front panel multi-color LED bank displays rack power status, S-Net bus link fault, and daughtercard communication loss for rapid on-site troubleshooting without workstation access.
6. Rear edge gold-plated backplane connector eliminates loose screw terminal wiring; slide-lock retention clips prevent vibration-induced disconnection during plant load swings.

Field Service Pitfalls: What Rookies Get Wrong

Swapping MBCI01B Medium-Burden Backplane Variant For MBCI01N Low-Burden Unit

New technicians install MBCI01B spare without matching model suffix. Dense racks with multiple carriers overload shared backplane power supply; bus voltage collapses, all connected I/O daughtercards drop offline and DCS loses field motor/valve status visibility.Field Rule: MBCI01N low-burden variant mandatory for fully populated Symphony racks; segregate N and B power variant MBCI01 spares in locked labeled storage bins.

Installing Uncoated Surplus MBCI01 Modules In Coastal/Refinery Corrosive Cabinets

Apprentices deploy uncoated used MBCI01 units without checking PCB conformal coating. Sulfur and salt vapor eats PCB trace pads within 3–6 months, creating intermittent open DI channels during high humidity shifts.Quick Fix: Only use fully conformal coated MBCI01N1AB0761B modules in chemical, coastal, or offshore plant cabinets; strip and re-coat bare PCB surplus before rack installation.

Routing Field I/O Cable Parallel To MV Power & VFD Wiring

Maintenance crews run unshielded 24VDC discrete wiring alongside medium voltage feeder cables. Inductive EMI corrupts S-Net bus scan frames; DCS randomly flips DI states and reports constant carrier offline alarms.Field Rule: Separate all MBCI01 field I/O wiring into dedicated control cable trays; use shielded twisted pair for daughtercard signals, single-point ground shield at the DCS rack only.

Mixing MBCI01 Carrier With Incompatible 3BE I/O Daughtercards

Techs slot legacy 3BE series I/O sub-boards onto expansion headers. Mismatched bus handshake logic creates permanent scan errors, all connected channels lock into fault state and cannot be reset via DCS logic.Field Rule: only supports dedicated Symphony daughtercard I/O sub-boards; do not intermix with standalone 3BE series discrete modules.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
