Component Snapshot At-a-Glance

• Model: MVAJ53H1LB0856A
• Alt. P/N: MVAJ53D1LB0856A (low-burden coil variant, different DC draw); MVAA14 (electrical reset no mechanical flag); MVAJ23 (smaller contact stack, narrower rack footprint)
• Product Series: MVAJ Midos draw-out tripping relay family, shared rack base with MCGG/MVAX/MVTT protection relays

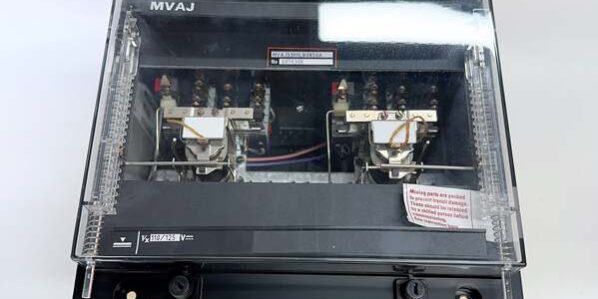

• Hardware Type: Full withdrawable plug-in hinged armature trip relay, yellow aluminum industrial chassis, transparent front cover with visible mechanical trip flag
• Key Feature: H-series high-burden 110/125VDC coil, front mechanical hand-reset latch, multi-stack magnetic blowout arc-resistant changeover contacts
• Primary Field Use: Expand protection relay contact capacity, latch breaker trip signals and lockout fault logic until manual on-site reset.

Hard-Numbers: Technical Specifications

• Protocol Support: Electromechanical only, no digital bus communication; volt-free C/O trip/alarm contact outputs
• Port Count: DC coil supply terminals, multi-pole contact stack terminal sets for trip, local alarm and SCADA remote indication
• Baud/Data Rate: No serial data transmission
• Operating Temperature: -10°C to +55°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2000Vrms dielectric withstand between coil circuit and contact wiring
• Power Draw: H high-burden coil, stable pickup at 65% nominal DC voltage during severe bus sag
• Nominal Coil Voltage: 110/125 VDC station control battery
• Operate Speed: ≤10ms full armature pull-in at rated voltage
• Reset Method: Front panel mechanical hand-reset flag (latched state persists after coil de-energization)
• Contact Continuous Rating: 5A @300VDC resistive load; 40W DC inductive breaking capacity with integrated magnetic blowout plates
• 3s Fault Make/Carry Rating: 30A peak, 7500W DC inductive trip coil loads
• Mechanical Endurance: 10,000 loaded fault operations minimum
• Physical Weight: 0.8kg fully assembled draw-out unit

The Real-World Problem It Solves

Self-reset auxiliary relays drop fault status the moment protection clears a fault. Operators lose visual local fault indication and cannot confirm locked-out breaker trip logic without pulling SCADA history.Electrical-reset MVAA series require wired remote reset circuits; locked-out main transformer feeders demand field personnel visit the cabinet to reset, which MVAA cannot do without extra wiring.Low-burden MVAJ53D coils fail to pick up during multi-feeder simultaneous faults; station DC battery voltage collapses, critical trip lockout logic fails to engage for short-circuit events.Stacking multiple small auxiliary relays wastes rack space and adds dozens of vibration-prone wiring splices that open intermittently during plant load swings.Where you’ll typically find it:

• Fossil power plant generator, main transformer and boiler feeder critical protection lockout panels
• Refinery MV compressor and process pump MCC fault latching trip schemes
• Urban distribution primary substation transformer secondary breaker lockout control cabinetsThis single draw-out high-burden trip relay delivers mechanical visual fault latching and heavy-duty inductive trip coil switching without remote reset wiring for high-risk equipment circuits.

Hardware Architecture & Under-the-Hood Logic

This unit uses a heavy hinged armature electromagnetic coil with mechanical spring latch, no onboard microprocessor or signal sampling ICs. It shares standardized Midos rack mechanical design with all ALSTHOM Midos protection hardware for consistent cabinet layout.

1. Protection relay fault contact closes to energize the H high-burden DC coil; magnetic flux pulls armature closed and engages internal mechanical latch to hold contact state after coil de-energizes.
2. Integrated magnetic blowout metal plates beside silver alloy contact tips extinguish DC inductive arcs from breaker trip coils, preventing permanent contact welding.
3. High-wattage H coil winding maintains reliable pickup under severe DC bus sag during concurrent multi-circuit fault events, eliminating dropout risk common to low-burden variants.
4. Multi-stack changeover contacts split single fault signals across three independent circuits: breaker trip coil, cabinet local alarm lamp, remote SCADA discrete fault input.
5. Front panel transparent window exposes red mechanical trip flag; flag stays latched until manual front pushbutton reset for instant on-site fault identification.
6. Rear Midos rack terminal base pre-fitted with factory CT short-circuit jumpers; full chassis withdrawal possible without disconnecting CT secondary wiring to eliminate lethal open CT kilovolt surge hazards.

Field Service Pitfalls: What Rookies Get Wrong

Swapping MVAJ53D Low-Burden Coil Variant For MVAJ53H High-Burden Unit

New technicians install MVAJ53D spare stock without matching model suffix. During multi-feeder simultaneous short-circuit faults, station DC battery voltage sags heavily; low-burden coil fails to energize, breakers do not lock out and equipment sustains catastrophic winding damage.Field Rule: MVAJ53H high-burden variant mandatory for critical generator, transformer and process feeder protection panels; segregate H and D coil MVAJ53 spares in clearly labeled locked storage bins.

Skipping CT Short Jumper Installation Before Withdrawing Draw-out Relay

Apprentices pull the relay chassis straight out without shorting CT terminals on the rack base. Open CT secondary windings generate lethal kilovolt surge that damages upstream MCGG overcurrent relay sampling boards and creates cabinet electric shock hazard.Quick Fix: Always install factory CT short-circuit jumpers on the Midos base terminal strip before removing any draw-out protection relay unit.

Forgetting Manual Front Flag Reset After Clearing Fault Trip

Maintenance crews only reset DCS logic and ignore the mechanical front flag. Latched flag blocks subsequent protection trip operation, creating hidden single-point failure risk for the next equipment fault event.Field Rule: Manually depress front reset flag after every fault trip and before returning relay online; visually confirm flag returns to normal unlatched position.
