Component Snapshot At-a-Glance

• Model: MVAX31C1DF0754A
• Manufacturer: GEC ALSTHOM (later AREVA Grid, now GE Vernova Grid)
• Alt P/N: MVAX21 (only post-closing supervision, cannot monitor breaker open state); MVAX31S1DC0754A (different coil burden, pinout mismatch); MVAX91 (triple MVAX31 integrated unit, larger rack footprint)
• Product Series: MVAX Midos trip circuit supervision relay family, unified draw-out rack platform compatible with MCGG / MVAJ protection relays

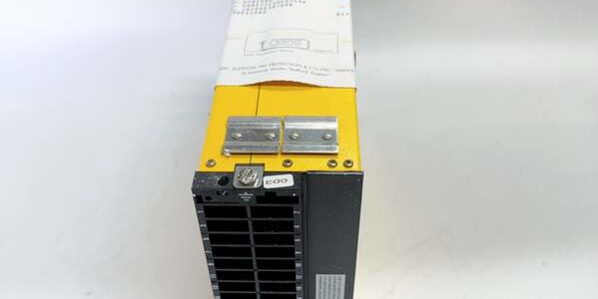

• Hardware Type: Full withdrawable plug-in electromechanical trip circuit monitoring relay, transparent front inspection cover, yellow molded aluminum industrial chassis
• Key Feature: Full continuous trip circuit supervision (breaker open + closed state), RC drop-off delay (350–800ms anti-nuisance alarm), D-series low-burden 110/125VDC coil, Midos rack built-in CT short-circuit safety terminals, multi-pole alarm changeover contacts
• Primary Field Use: Continuously monitor the integrity of medium/high voltage circuit breaker DC trip coils and trip wiring; detect trip supply loss, broken trip wiring, open trip coil, failed trip mechanism, send remote alarm to DCS/SCADA before a fault event renders breakers unable to trip.

Hard-Numbers: Technical Specifications

• Protocol Support: Pure electromechanical monitoring device, no digital communication; dry volt-free changeover alarm contacts only
• Nominal DC Control Coil: 110/125 VDC low-burden D winding (DF suffix defines coil grade & wiring termination)
• Supervision Mode: Full-time continuous monitoring (works whether circuit breaker is open OR closed)
• Anti-Nuisance Delay: Integrated RC drop-off delay 350–800ms, suppress false alarms from transient DC bus voltage dips during short-circuit faults
• Max Trip Loop Resistance: Up to 400Ω for standard 110/125VDC trip supply circuits
• Minimum Trip Circuit Current Threshold: ≥25mA to maintain healthy supervision status
• Operating Voltage Band: Reliable operation at 80% ~ 120% of rated DC auxiliary voltage
• Contact Configuration: Multiple heavy-duty C/O changeover contact sets for local panel alarm + remote SCADA fault indication
• Contact Ratings (Resistive / Inductive DC):
  • Continuous carry: 5A @300VDC
  • 3-second fault make/carry: 30A peak
  • Breaking capacity: 40W inductive DC trip coil loads
• Operating Temperature: -10°C ~ +55°C cabinet operational; -40°C ~ +85°C storage
• Dielectric Isolation: 2000Vrms withstand between trip supervision circuit and alarm output contact wiring
• Mechanical Safety Design: Midos rack rear terminal base factory pre-fitted CT short-circuit jumpers; full chassis withdrawal without dangerous open CT secondary kilovolt surge
• Physical Weight: ~0.43kg compact draw-out unit
• Certifications: IEC 60255 power system protection standard, CE Class B EMC for high EMI substation environments

The Real-World Problem It Solves

Limited-function MVAX21 relays only monitor trip circuits when the breaker is closed; hidden trip coil/wiring faults remain undetected while breakers are racked open for maintenance, creating invisible single-point failure risks. MVAX31 delivers 24/7 continuous supervision regardless of breaker position.Broken trip wiring, burnt trip coils or failed station trip battery supply cannot be detected by standard overcurrent relays; when a major short-circuit fault occurs, breakers fail to trip, leading to catastrophic transformer/generator winding damage and extended plant blackouts.Without built-in RC delay, transient DC bus voltage sag during feeder faults triggers spurious trip circuit fault alarms, flooding SCADA with nuisance alerts and distracting operators from real equipment faults.High-burden coil variants draw excessive DC load during simultaneous multi-feeder faults; station battery voltage collapses and supervision relay logic fails to operate reliably. MVAX31C low-burden winding minimizes DC battery draw.Separate external time-delay auxiliary relays add extra rack slots, wiring splices and annual calibration overhead; MVAX31 integrates anti-nuisance delay circuitry inside one compact draw-out chassis.Where you’ll typically find it:

• Fossil power plant generator, boiler feeder & transformer MV breaker protection panels
• Refinery petrochemical substation MCC medium voltage pump/compressor breaker trip loop monitoring
• Urban distribution substation ring main unit and primary transformer switchgear cabinets
• Offshore FPSO critical process MV breaker safety trip circuit health supervision

This dedicated full-time trip supervision relay eliminates blind spots in breaker trip circuit monitoring, prevents undetected trip path failures that disable fault clearing capability, and avoids nuisance alarms during system transient voltage disturbances.

Hardware Architecture & Under-the-Hood Logic

Three internal electromagnetic monitoring units (A/B/C) work in tandem to continuously sense trip circuit continuity, unique to MVAX31 series.

1. Trip circuit DC supply and trip coil loop pass through the relay’s internal sensing circuit; as long as loop current ≥25mA, the relay remains in healthy normal state.
2. If trip supply fails, wiring opens, trip coil burns out or loop resistance exceeds 400Ω, internal monitoring units de-energize after RC anti-nuisance delay, switching alarm contacts to signal trip circuit fault.
3. D-series low-burden coil winding draws minimal DC current, avoiding station battery voltage collapse during concurrent multi-circuit fault events.
4. Multi-pole silver alloy arc-resistant contact stacks switch local panel alarm lamps and remote SCADA fault indication signals simultaneously.
5. Rear Midos rack terminal base integrates factory CT short-circuit jumpers; relay chassis can be fully withdrawn without disconnecting CT secondary wiring, eliminating lethal open CT surge hazards during maintenance swap-out.
6. Front panel status LED: Healthy Trip Circuit (green), Trip Circuit Fault Alarm (red) for instant visual cabinet diagnostics without workstation access.

Field Service Pitfalls: What Rookies Get Wrong

Substituting MVAX21 Post-Close Only Supervision Relay For MVAX31

New technicians install MVAX21 spare relays to cut inventory cost. MVAX21 cannot monitor trip circuits when breakers are racked open; hidden broken trip wiring stays undetected during maintenance, creating catastrophic failure risk during future fault events.Field Rule: MVAX31 mandatory for all critical generator, transformer and process feeder breakers requiring full-time open/closed state trip supervision; MVAX21 only permitted for non-critical distribution feeders with permanent breaker closed operating mode.

Forgetting CT Shorting Jumpers Before Withdrawing Draw-out Relay

Apprentices pull relay chassis without installing rack CT short links. Open CT secondary generates lethal kilovolt surge, damaging upstream MCGG overcurrent relay sampling hardware and creating cabinet electric shock hazard.Quick Fix: Always fit factory CT short-circuit jumpers to rack terminal block before removing any Midos draw-out protection/supervision relay.

Disabling Internal RC Delay Circuit For Troubleshooting

Maintenance crews bypass the built-in anti-nuisance RC delay to speed fault testing. Transient DC bus voltage dips during short-circuit faults trigger constant false trip circuit fault alarms, overwhelming operators with irrelevant SCADA alerts.Field Rule: Never remove or bypass factory RC drop-off delay circuit; adjust trip loop wiring resistance within 400Ω maximum limit if residual nuisance alarms persist.

Over-Torquing Rear Terminal Wiring Screws

Crews over-tighten terminal lugs past factory torque spec, cracking relay rear PCB terminal tracks. Cabinet vibration induces intermittent trip circuit open faults that only manifest during high plant load transients.Field Rule: Torque rear screw terminals to 0.7 N·m; retorque all MVAX relay terminals during annual substation maintenance outage.

Mismatched Coil Burden Variants (S/DC vs C/DF)

Technicians substitute high-burden MVAX31S1DC units for low-burden MVAX31C1DF0754A. During multi-feeder simultaneous faults, station DC battery voltage sags severely; high-burden coil fails to maintain supervision logic, hiding trip circuit faults from operator alarm systems.Field Rule: Match full part suffix MVAX31C1DF0754A low-burden coil for all dense multi-relay protection panels; segregate C low-burden / S high-burden spares in labeled storage bins.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on market stock, equipment condition (new/refurbished) and order quantity.
