Component Snapshot At-a-Glance

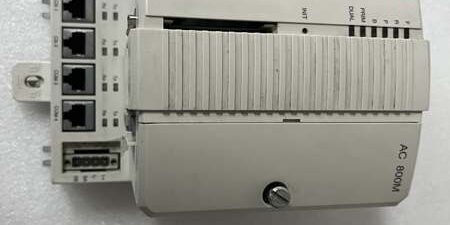

• Model: PM865K01
• Full Part Number: 3BSE031151R1
• Alt. P/N: Replacement upgrade model PM867K01; internal backup battery 4943013-6
• Product Series: ABB AC 800M Controller, System 800xA DCS Platform
• Hardware Type: DIN rail mount high integrity (HI) main processor CPU unit
• Key Feature: SIL3 certified safety controller, full hot standby CPU redundancy, dual redundant Ethernet, MPC862P 96MHz core, 32MB RAM, dedicated safety logic execution
• Primary Field Use: Executes critical process control + safety interlock logic, polls S800/S900 remote I/O, communicates with 800xA HMI, historians and third-party systems for power, chemical, pulp & paper SIL safety loops.



Hard-Numbers: Technical Specifications

• Protocol Support: ModuleBus rack backplane, TCP/IP Ethernet, Modbus TCP/RTU, Profibus DP, OPC, IEC 61131-3 control logic
• Port Count:
  • 2 × RJ45 10Mbps redundant control Ethernet
  • 2 × RJ45 serial COM ports (RS232/485 configurable)
  • ModuleBus edge connector for rack I/O communication
• CPU Core: MPC862P PowerQUICC, 96MHz fixed clock speed
• Memory:
  • 32MB total RAM (22.18MB available for application programs)
  • 4MB onboard Flash for firmware storage
  • Lithium battery backup for RAM retention during power loss
• Redundancy Switchover Time: Max 10ms hot standby failover for paired dual PM865K01 CPUs
• Power Supply: 24VDC (19.2–30VDC industrial standard), max power consumption 11.4W, nominal input current ~1A
• Operating Temperature: -20°C ~ +70°C operational; -40°C ~ +85°C storage
• Humidity: 5%–95% non-condensing, IP20 cabinet-only installation
• Safety Certification: IEC 61508 SIL3 High Integrity safety rating
• Programming Standard: Full IEC 61131-3 (ST, FBD, LD, SFC, IL)
• Max I/O Capacity: Supports multiple S800/S900 I/O clusters via ModuleBus extension
• Dimensions (W×H×D): 119 × 186 × 135mm
• Weight: 1.2kg complete with DIN base mounting unit
• Status LEDs: RUN, FAULT, COM, REDUNDANT, BATTERY health indicators

Important Lifecycle Note

PM865K01 3BSE031151R1 is a legacy non-RoHS2 module, only supplied as maintenance spare parts for pre-2017 installed systems; new safety projects specify PM867K01 as direct performance upgrade replacement.



The Real-World Problem It Solves

Standard non-SIL AC800M CPUs lack safety certification and cannot execute SIL3 emergency shutdown interlock logic. Single CPU layouts create unmitigated single-point failure risks for boiler, reactor and turbine safety loops. Low-memory older PM861/PM851 controllers cannot handle complex safety function blocks and large I/O point counts.Where you’ll typically find it:

• Fossil power plant boiler & turbine safety instrumented SIS racks under System 800xA
• Refinery reactor, distillation unit SIL3 emergency shutdown control systems
• Pulp & paper mill high-integrity pulp cooking and paper machine safety interlock cabinets
• Chemical plant batch process critical safety control loops

This SIL3 redundant high integrity CPU delivers deterministic safety logic execution, dual redundant communication paths, and battery-backed memory to avoid unplanned safety trips during power transients.



Hardware Architecture & Under-the-Hood Logic

Self-contained real-time safety CPU with independent safety execution partition; paired dual PM865K01 runs hot standby redundancy with automatic cross-data synchronization.

1. 24VDC rack power feeds isolated power rails for CPU core, memory, dual Ethernet transceivers and serial communication circuits.
2. MPC862P 96MHz processor runs separate standard control partition and SIL3 safety partition with hardware isolation between logic domains.
3. ModuleBus backplane synchronously polls all S800/S900 I/O modules every fixed scan cycle to read analog/digital safety field signals.
4. Dual Ethernet ports enable redundant plant LAN routing to eliminate single network cable failure cutting off HMI/historian safety data.
5. Internal lithium backup battery preserves RAM program and tag data for months during full rack power outage.
6. Hot standby redundancy logic continuously mirrors all safety logic states between primary and standby CPU; <10ms bumpless switchover on primary fault.
7. Front panel multi-status LEDs provide instant on-site diagnostics for CPU run state, communication loss, redundancy mismatch and low battery warnings.

Field Service Pitfalls: What Rookies Get Wrong

Mismatched firmware versions between redundant CPU pairs

Technicians replace one PM865K01 without flashing identical firmware to the paired standby controller. Redundancy sync failure triggers persistent MAJOR FAULT alarms and disables safety certification.

• Field Rule: Load matching firmware revision to both primary/standby CPUs; verify REDUNDANT steady green LED before returning system to operation.

Expired internal backup lithium battery causing full program loss on power cycle

Maintenance skips battery replacement over 2+ years. Full rack power outage erases RAM safety logic, requiring complete program reload from offline backup media.

• Quick Fix: Replace battery model 4943013-6 every 24 months; perform battery swap while rack remains powered to retain all running logic.

Mixing non-SIL standard PM864/PM861 CPUs in safety rack

Installers deploy non-HI standard controllers alongside PM865K01 in safety cabinet. System 800xA safety validation tool flags certification violation, invalidating site SIL compliance audit records.

• Field Rule: All safety logic execution must run exclusively on high integrity CPU units; separate standard control and safety racks physically.

Poor cabinet ventilation causing thermal throttling and scan cycle overruns

Mounting high-wattage power supply and communication modules directly adjacent to blocks passive airflow. Sustained temperature above 70°C extends control scan cycles, triggering safety logic timeout faults.

• Field Rule: Maintain minimum 25mm vertical clearance top and bottom of CPU slot; clean cabinet intake air filters quarterly to remove plant dust buildup.
