、Component Snapshot At-a-Glance

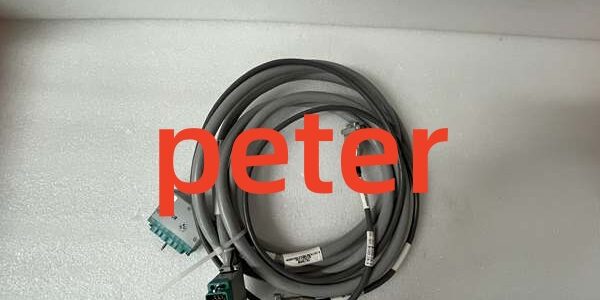

- Model: 4000103-510N
- Alt. P/N: Base standard 4000103-510 indoor cable; suffix N = full conformal coated harsh environment variant
- Product Series: Triconex Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS)
- Hardware Type: Factory pre-terminated rear TA terminal breakout cable assembly
- Key Feature: 5-meter fully shielded multi-pair signal cable, dual green factory-locked TA connectors, coated plug housings/pin terminations for salt fog & chemical vapor corrosion resistance
- Primary Field Use: Interconnects Tricon 8111N rack rear I/O TA terminal blocks to remote field junction boxes; transmits DI/AI safety signals for SIL3 emergency shutdown and fire/gas safety loops.
Hard-Numbers: Technical Specifications
- Protocol Support: Passive analog/digital signal transmission, fully compatible with all Tricon TMR I/O modules (3501TN2, 3721N, digital/analog TA assemblies)
- Port Count: Dual proprietary green multi-pin TA locking connectors at both cable ends, factory pin-matched to Tricon rear I/O slots
- Cable Length: 5 meters (510 = 5m length code)
- Wire Spec: 22AWG multi-stranded tinned copper twisted pair, flame retardant XLPE industrial insulation
- Shield Construction: 100% coverage copper braided overall shield + individual pair shielding for EMI suppression
- Operating Temperature: -40°C to +85°C operational; -50°C to +90°C storage
- Isolation Rating: Cable insulation 1500VAC withstand, galvanic separation between signal pairs
- CMRR Performance: -85dB DC~100Hz noise rejection to block VFD, motor and 480V power cable interference
- Minimum Static Bend Radius: 158.75mm; dynamic flex routing 213mm
- Coating Grade: N variant conformal coating fully encapsulates plug pins, strain relief and connector shell to block salt dust, moisture and corrosive gas ingress
- Overvoltage Withstand: 150VDC / 115VAC continuous surge protection rating
- Certifications: UL, CE, ATEX Zone 2 compatible, ISA-84, IEC 61508 SIL3 system wiring approved
- Weight: ~3.0kg full 5m assembly
- Humidity Rating: 5%–95% non-condensing offshore cabinet environment
The Real-World Problem It Solves
Uncoated base 4000103-510 cable plug assemblies corrode rapidly in FPSO, coastal refinery salt fog environments, causing intermittent channel dropouts and TMR voting mismatch major faults. Field-spliced custom wiring introduces loose joints, ground loops and EMI noise that trigger spurious safety trips and invalidate SIL3 compliance. Separate short jumper cables increase cabinet wiring clutter and maintenance troubleshooting labor.Where you’ll typically find it:
- Refinery reactor, distillation unit ESD safety instrumented rack rear I/O wiring
- Offshore drilling rig & FPSO fire/gas detector remote junction box 5m medium-distance signal runs
- Fossil power plant boiler, turbine SIL3 safety interlock cabinet field wiring
This factory pin-matched, fully shielded coated cable assembly eliminates field splicing errors, suppresses industrial EMI, and resists corrosive plant air to maintain stable safety signal integrity over 5-meter runs.
Hardware Architecture & Under-the-Hood Logic
Passive wired harness with no active electronics; factory calibrated twisted pair shielding architecture to separate analog and digital signal circuits, vibration-resistant locking TA plugs.
- Dual molded green locking TA plugs fully seat to chassis rear I/O card, gold-plated pins eliminate vibration-induced intermittent opens under marine thermal cycling.
- Continuous full-length copper braided shield blocks radiated EMI from adjacent high-voltage power cable trays.
- Individually twisted differential signal pairs eliminate crosstalk between adjacent safety input channels.
- N-series conformal coating fully seals plug shell, pin terminations and cable jacket entry to block salt dust, moisture and corrosive gas ingress.
- Color-coded internal twisted pairs simplify factory pin validation and post-installation continuity testing.
- Integrated heavy-duty strain relief at both cable ends prevents conductor breakage from cabinet thermal expansion and platform vibration.
Field Service Pitfalls: What Rookies Get Wrong
Dual-end shield grounding creates severe low-frequency hum noise
Technicians bond cable braided shield to both rack TA block and remote field junction box ground. Large plant ground potential difference injects 50/60Hz hum noise that flips digital DI states and distorts analog transmitter readings.
- Field Rule: Terminate cable shield only at the rack TA terminal block end; leave field junction box shield floating electrically.
Exceeding minimum bend radius during cabinet routing
Sharp tight bends crack cable jacket and break internal twisted pair shielding. Partial shield loss creates random intermittent channel faults that cannot be replicated during bench testing.
- Quick Fix: Maintain minimum 158.75mm bend radius; use plastic cable management trays to avoid sharp cabinet frame edges pinching the harness.
Mixing standard uncoated 4000103-510 cables inside N-series offshore coated racks
Uncoated plug connectors corrode faster than N variant hardware, creating uneven contact resistance and long-term signal drift that degrades TMR voting performance. Site safety system warranty coverage is voided for mixed wiring hardware.
- Field Rule: All I/O termination cabling deployed inside 8111N harsh environment chassis must use N suffix coated cable assemblies exclusively.
Mismatched cable length mixing 510/110/310 series TA cables
Installers mix different length 4000103 TA cables in the same safety loop. Impedance mismatch amplifies EMI noise and creates inconsistent signal attenuation across TMR input legs.
- Field Rule: Match project specified length code; never mix different length TA termination cables for identical I/O modules.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
