Component Snapshot At-a-Glance

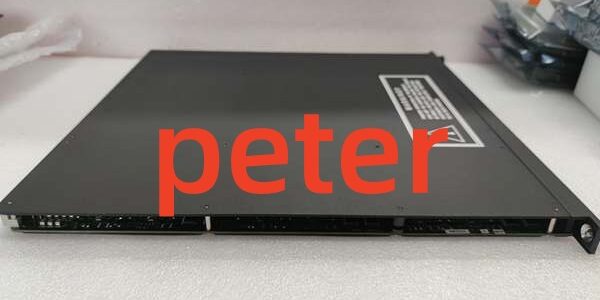

- Model: 3721N
- Alt. P/N: Base model 3721; N = conformal coated industrial variant
- Product Series: Triconex Tricon TMR Safety Instrumented System (SIS)
- Hardware Type: Rack-mounted 32-channel differential analog input module
- Key Feature: Full triple modular redundant signal paths, per-channel fault diagnostics, 150V continuous overvoltage protection
- Primary Field Use: Collects 0–5V / ±5VDC sensor signals for pressure, temperature, flow in ESD, F&G and turbomachinery safety loops.
Hard-Numbers: Technical Specifications
- Protocol Support: Tricon proprietary backplane bus, TriStation 1131 configuration
- Port Count: 32 differential analog input channels, rear TA terminal block interface
- Update Rate: Fixed 10ms full rack scan cycle
- Operating Temperature: -20°C to +70°C operational; -40°C to +85°C storage
- Isolation Rating: 1500VAC field-to-backplane galvanic isolation per channel bank
- Power Draw: 5VDC rack backplane, max 12W per module
- Input Range: 0–5VDC or -5V to +5VDC software selectable
- Resolution: 12-bit / 14-bit programmable ADC resolution
- Accuracy: ≤0.15% full scale (0°C to 60°C)
- CMRR: -85dB DC to 100Hz differential noise rejection
- Overvoltage Protection: 150VDC / 115VAC continuous withstand
- Certification: IEC 61508 SIL 3, ATEX Zone 2, CSA, CE
- Dimensions: 483mm × 266mm × 44mm
- Weight: 1.36kg
The Real-World Problem It Solves
Low-density single-ended analog modules waste rack slots and suffer severe ground loop drift in refinery/offshore environments. Non-TMR single-path I/O creates unmitigated single-point failure risks that break SIL 3 safety compliance.Where you’ll typically find it:
- Refinery ESD emergency shutdown racks for reactor and distillation unit protection
- Offshore FPSO & drilling rig fire and gas (F&G) toxic gas detection systems
- Power plant steam/gas turbine safety monitoring for temperature and vibration transmitters
This TMR differential input card eliminates ground loop errors, meets SIL 3 fault tolerance, and packs 32 measurement points into one rack slot to cut cabinet footprint.
Hardware Architecture & Under-the-Hood Logic
Three fully independent parallel signal processing legs (TMR triple redundancy); no shared analog circuits between voting paths. Hot-swap power hold-up circuit maintains rack bus integrity during live replacement.
- Field differential voltage signals feed three isolated analog front-end conditioning circuits per channel.
- Each leg runs independent 14-bit ADC sampling synchronized to the rack backplane clock.
- Onboard logic performs two-out-of-three hardware voting to reject single-leg drift or circuit faults.
- Per-channel diagnostics flag open wiring, short circuits, and out-of-range sensor readings to TriStation.
- Isolation barriers block field-side surges and EMI from corrupting Tricon controller logic.
- Front panel PASS / FAULT LEDs display module health and per-slot TMR mismatch alarms.
Field Service Pitfalls: What Rookies Get Wrong
Dual-ended shield grounding creates severe 50/60Hz measurement driftTechs bond cable shields to both field transmitter housing and cabinet terminal block. Large ground potential difference injects hum noise that makes analog values swing ±5% constantly.
- Field Rule: Terminate shield only at the TA terminal block side; leave field end shield floating electrically.
Mismatched analog terminal assemblies (TA) causing channel burnoutInstallers mate digital input TA hardware to 3721N analog slot pinouts. Misaligned power and signal pins short field loops and blow internal input protection fuses.
- Quick Fix: Only use 9790-610 analog differential TA blocks; cross-reference TA drawing to module pin mapping before wiring.
Forced hot-swap with uneven module seating bending backplane gold pinsTechnicians apply side load while inserting the heavy 3721N module. Bent backplane edge connectors trigger intermittent TMR mismatch faults that only surface under cabinet vibration.
- Field Rule: Align both top/bottom rack guides fully; push straight and level until front panel latches engage; avoid twisting during insertion.
