Component Snapshot At-a-Glance
- Model: PM510V16
- Alt. P/N: 3BSE008358R1; Exchange PN EXC3BSE008258R1
- Product Series: ABB Advant Master AC450 / AC460 DCS Platform

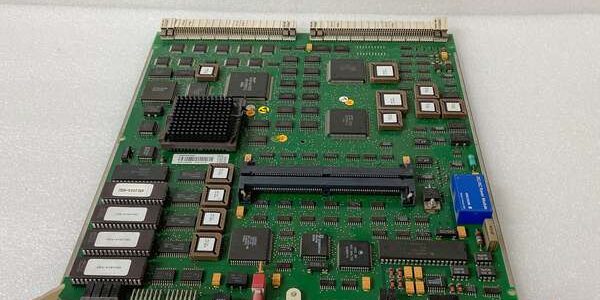

- Hardware Type: Eurocard rack-mounted main CPU processor module
- Key Feature: 16MB ECC RAM configurable down to 8MB, dual 10/100 Ethernet, ModuleBus backplane master
- Primary Field Use: Executes process control logic, coordinates rack I/O, exchanges data with operator stations and field devices for legacy ABB DCS systems.
Hard-Numbers: Technical Specifications
- Protocol Support: ModuleBus rack backplane, TCP/IP Ethernet, RS232/485 serial, Modbus RTU, Advant proprietary control network
- Port Count: 2×RJ45 Ethernet, 1×9-pin D-Sub serial, ModuleBus edge connector
- Data Rate: Ethernet 10/100Mbps auto-negotiate; ModuleBus high-speed rack parallel bus
- Operating Temperature: -20°C to +60°C operational; -40°C to +85°C storage
- Isolation Rating: 1000V galvanic isolation between communication ports and backplane logic
- Power Draw: 24VDC rack supply, maximum 5W
- Core Processor: 32-bit RISC real-time CPU
- Memory: 16MB ECC RAM (switchable to 8MB via SIMM jumpers), onboard flash firmware storage
- Battery Backup: Internal lithium cell for RAM retention during power loss
- Dimensions (L×H×W): 477mm × 261mm × 22.5mm
- Weight: 0.875kg
- Certifications: CE, UL, industrial general industry rated; PM510MV16 = marine conformal coated variant
The Real-World Problem It Solves
Older 8MB PM510V8 CPUs lack memory for complex boiler/turbine control logic and historian data buffering. Separate communication cards add extra rack slots and introduce additional single points of failure on legacy Advant racks.Where you’ll typically find it:
- Pulp & paper mill Advant Master AC460 pulp cooking and paper machine control racks
- Fossil power plant BOP auxiliary equipment legacy DCS cabinets
- Chemical process plant batch control systems built on ABB AC450 platform
This single-slot master CPU consolidates rack I/O management, HMI communication and field protocol conversion without extra auxiliary modules.
Hardware Architecture & Under-the-Hood Logic
Eurocard passive backplane CPU with independent real-time operating system; acts as ModuleBus master for all rack I/O cards, no dependency on external controllers.
- Rack 24VDC feeds isolated power rails for CPU core, memory banks and communication transceivers.
- Dual SIMM memory modules deliver 16MB ECC RAM; jumper settings reduce capacity to 8MB for backward compatibility.
- Onboard real-time RISC executes IEC 61131 control logic with fixed deterministic scan cycles.
- ModuleBus parallel backplane polls all DI/AI/AO/DO I/O cards at millisecond intervals for process values.
- Dual Ethernet ports transmit trending, alarm and setpoint data to operator workstations and historians.
- Front panel status LEDs display RUN, FAULT, COM and battery health for rapid on-site diagnostics.
Field Service Pitfalls: What Rookies Get Wrong
Mismatched SIMM memory modules and jumper misconfigurationTechs swap mixed SIMM sets or leave jumpers misaligned after memory swap. CPU boots with corrupted memory, throws constant memory fault alarms and aborts control logic.
- Field Rule: Use matched 3BSC120004E6 SIMM pairs; set jumpers to match target 8MB/16MB memory capacity before power-up.
Expired backup lithium battery causing total data loss on power cycleMaintenance crews skip battery replacement for 3+ years. Full power outage erases RAM logic and tag configuration, forcing full program reload from backup media.
- Quick Fix: Replace internal lithium battery every 24 months; perform battery swap only while rack remains powered to retain memory.
Poor rack ventilation causing thermal throttling and communication dropsStacking high-wattage power supply and relay modules adjacent to PM510V16 blocks chassis airflow. Internal heat pushes operating temp over 60°C, triggering CPU slowdown and intermittent ModuleBus timeouts.
- Field Rule: Maintain minimum 25mm vertical clearance top and bottom of CPU slot; clean rack intake air filters quarterly to remove plant dust buildup.
