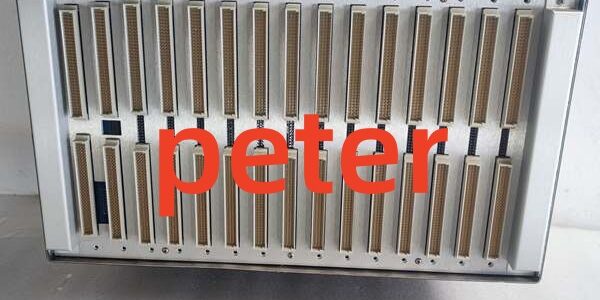

Component Snapshot At-a-Glance

• Model: 3500/05-01-01-00-00-01
• Alt. P/N: No separate spare part number; full chassis assembly
• Product Series: Bently Nevada 3500 Machinery Protection System
• Hardware Type: Full-size 19-inch EIA system rack chassis with integrated backplane
• Key Feature: 14 module slots, rear wiring access, redundant power traces, gold-plated backplane connectors
• Primary Field Use: Physical housing, backplane data bus and 24VDC power distribution for all 3500 monitor, relay and communication modules.

Suffix Code Breakdown for 3500/05-01-01-00-00-01

1. 01 = Full-size 19” 14-slot rack
2. 01 = Rear access wiring (panel/19” rack mount)
3. 00 = Standard mechanical construction
4. 00 = No internal barriers
5. 01 = Standard coating, CE/CSA general industry certification

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary high-speed 3500 backplane digital bus
• Slot Count: 14 total module slots; Slot 1 reserved for 3500/22M TDI, Slots 2+3 for dual power supplies
• Data Rate: Backplane bus synchronous high-speed polling for all installed cards
• Operating Temperature: -20°C to +65°C operational; -40°C to +85°C storage
• Isolation Rating: Backplane power circuits isolated from analog signal traces
• Max Backplane Load: 180W total DC power draw supported
• Chassis Material: Heavy gauge cold-rolled steel chassis
• Dimensions (H×W×D): 266mm × 483mm (19”) × 330mm
• Weight: 4.5kg empty chassis
• Ingress Rating: IP20 (cabinet-mounted only)
• Certifications: CE, CSA, compliant with API 670

The Real-World Problem It Solves

Separate loose backplane bus cables create signal impedance mismatch and intermittent vibration data loss. Small 7-slot mini racks lack capacity for full turbine monitoring setups with redundant power and multiple monitor cards.Where you’ll typically find it:

• Power plant steam/gas turbine machinery protection cabinets
• Offshore and refinery high-speed centrifugal compressor monitoring systems
• Combined cycle generator and large boiler feed pump vibration racks

This integrated chassis delivers unified power distribution and low-noise backplane communication to eliminate loose wiring faults and support full-scale redundant protection configurations.

Hardware Architecture & Under-the-Hood Logic

Passive mechanical chassis with multi-layer gold-plated backplane; no onboard CPU, acts as shared power and communication backbone for all plug-in modules.

1. Leftmost slots accept dual 3500/15 power supplies to feed redundant 24VDC backplane power rails.
2. Slot 1 hosts mandatory 3500/22M TDI which acts as rack bus master for all data polling.
3. Multi-layer backplane separates analog vibration signal traces from digital communication bus to reduce crosstalk EMI.
4. Gold-plated edge connectors prevent oxidation in humid plant air and maintain stable low-impedance module contact.
5. Parallel redundant power traces enable hot-swap of one power supply without dropping rack voltage.
6. Rear I/O card cutouts provide dedicated space for probe wiring, Ethernet and fiber daughter cards.

Field Service Pitfalls: What Rookies Get Wrong

Incorrect slot ordering of power and TDI modulesTechs install monitor cards in Slots 1–3 before power supplies and TDI. Rack fails to initialize; all modules show constant FAULT LED and no backplane communication.

• Field Rule: Slot 1 = 3500/22M TDI; Slots 2 & 3 = dual 3500/15 power supplies; all monitor cards start at Slot 4.

Overloading backplane beyond 180W total load limitPacking high-wattage monitor and relay modules without load calculation pulls DC voltage below 22VDC, triggering random module resets and lost transient waveforms.

• Quick Fix: Sum all module power ratings; keep total draw under 180W; add second redundant power supply for heavy rack loads.

Blocking rear wiring ventilation with dense cable bundlesOver-stuffing rear I/O wiring blocks chassis airflow. Internal heat buildup raises backplane temperature above 65°C and causes permanent signal drift.

• Field Rule: Route cables with 20mm airflow gap behind rack; separate power and probe wiring looms; clean cabinet intake filters quarterly.
