Component Snapshot At-a-Glance

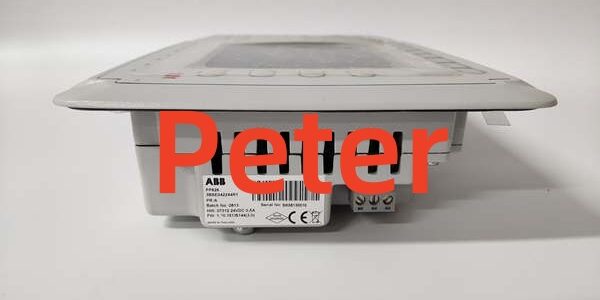

- Model: ABB PP826
- Alt. P/N: 3BSE042244R1
- Product Series: ABB Panel 800, compatible with 800xA/AC800M
- Hardware Type: 5.7″ CSTN color function key panel (non-touch)
- Key Feature: 320×280 pixel color display with dedicated hard keys
- Primary Field Use: Local color process monitoring, alarm ack, and manual control for DCS/PLC systems.
Hard-Numbers: Technical Specifications
- Protocol Support: RS-485 (ABB proprietary), Modbus RTU
- Port Count: 1×RS-485 terminal, 1×24VDC power, 1×config key switch
- Baud Rate: Up to 115.2 kbps
- Operating Temperature: -10°C to +60°C operational; -40°C to +85°C storage
- Isolation Rating: 500V AC basic isolation (comm/power)
- Power Draw: 6W max, 24VDC nominal (18–32VDC range)
- Display: 5.7″ CSTN color, 320×280 pixels, 64K colors
- Panel Rating: IP65 front, IP20 rear
- Dimensions (W×H×D): 202×187×6mm (front bezel)
- Hot Swap: Not supported—power down before removal
The Real-World Problem It Solves
Monochrome panels (like PP820) lack color contrast for critical alarms and trending. Full-size touchscreens overkill for local cabinet use and fail faster in high-vibration areas.
Where you’ll typically find it:
- Power plant turbine/generator local control cabinets
- Refinery distillation unit field-side operation panels
- Chemical plant reactor and pump station local HMI stations
This unit delivers color visibility and hard-key reliability without the cost/ fragility of large touchscreens.
Hardware Architecture & Under-the-Hood Logic
uses a 32-bit MCU to scan keys, drive the CSTN display, and handle RS-485 communication. Isolation blocks transients from field wiring.
- Hard-key matrix registers operator inputs (start/stop/ack) to the MCU.
- MCU polls 800xA/AC800M controller over RS-485 for process data/alarms.
- Display driver updates CSTN screen with color-coded values, trends, and alarm text.
- Operator commands encode to serial frames and transmit back to the controller.
- Isolation circuitry diverts voltage spikes away from internal electronics.
- Watchdog timer resets unit if communication hangs or firmware locks up.
Field Service Pitfalls: What Rookies Get Wrong
RS-485 A/B Swap Causes No CommunicationTechs mix A/B wires during termination. Panel powers on but never links to controller.
- Field Rule: Match A→A, B→B at both ends; label cables before routing.
Inadequate Shield Grounding Triggers Intermittent DropsGrounding shield at both ends creates ground loops. EMI from VFDs causes random disconnects.
- Quick Fix: Ground shield only at controller cabinet; float shield at end.
Overvoltage/Loose Terminals Cause Random RebootsLoose 24VDC terminals or voltage >32VDC lead to frequent resets. Vibration worsens intermittents.
- Field Rule: Maintain 22–26VDC; torque terminals to 0.5–0.6Nm.
CSTN Burn-In from Static ScreensLeaving static alarm screens on 24/7 causes permanent ghosting.
- Quick Fix: Enable screen saver (5min timeout); cycle display pages daily.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
