Component Snapshot At-a-Glance

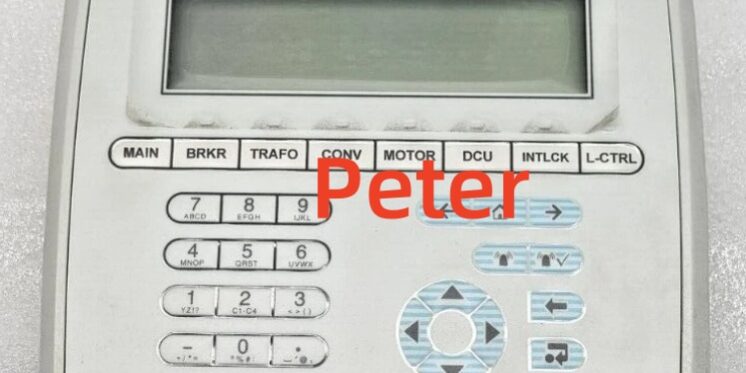

- Model: ABB PP820
- Alt. P/N: 3BSE042243R1
- Product Series: ABB Panel 800, compatible with 800xA
- Hardware Type: LCD text display operator panel with tactile function keys
- Key Feature: Front panel IP65 rating for dust and liquid exposure
- Primary Field Use: Local monitoring, alarm acknowledgment and manual control for process control systems.
Hard-Numbers: Technical Specifications
- Protocol Support: RS-485, ABB proprietary system bus
- Port Count: 1 x RS-485 terminal port, 1 x 24VDC power port
- Baud/Data Rate: Up to 115.2 kbps serial communication
- Operating Temperature: -10°C to +60°C operational, -40°C to +85°C storage
- Isolation Rating: 500V AC basic isolation on communication and power ports
- Power Draw: 4 W maximum, 24 VDC nominal input
- Display Resolution: 260 x 64 pixel FSTN monochrome LCD
- Panel Rating: IP65 front face, IP20 rear side
- Communication Distance: Max 500 meters at standard baud rate
- Hot Swap: Not supported for powered circuit removal
The Real-World Problem It Solves
Large central HMI screens fail to give technicians quick local access during equipment startup or fault conditions. Consumer-grade keyboards and displays break down quickly in dusty, humid control cabinets.
Where you’ll typically find it:
- Power plant boiler and turbine local control cabinets
- Refinery process unit field-side operation panels
- Chemical plant reactor and pump station local HMI stations
This unit delivers dedicated physical keys and sealed construction to maintain reliable local operation without relying on main control room workstations.
Hardware Architecture & Under-the-Hood Logic
This panel uses an onboard 32-bit microcontroller to handle key input, display drive and serial communication. Communication and power circuits include basic isolation to block transient voltage spikes.
- Tactile key matrix registers operator key presses and sends signals to the main controller.
- Controller pulls real-time data and alarm status from the 800xA controller over RS-485.
- Display driver refreshes LCD screen with process values, alarm text and status messages.
- User commands get encoded into serial frames and transmitted back to the main controller.
- Isolated circuitry blocks surge voltage from field wiring to internal electronics.
- Onboard watchdog timer resets the unit if communication hangs or firmware locks up.
Field Service Pitfalls: What Rookies Get Wrong
Reversed RS-485 A/B Wiring Causes Total Communication LossMany technicians swap A and B lines during termination. The panel powers on but never links to the system controller.
- Field Rule: Match A to A and B to B on both ends; label all cable conductors before routing.
Inadequate Shield Grounding Triggers Intermittent Signal DropsGrounding cable shields at both cabinet and panel creates ground loops. EMI from nearby drives causes random disconnections.
- Quick Fix: Ground cable shield only at the main controller cabinet; leave shield floating at the terminal side.
Overvoltage and Loose Power Terminals Create Random RebootsLoose 24VDC terminals or voltage above 26VDC leads to frequent resets and lost operator inputs. Vibration worsens intermittent power faults.
- Field Rule: Maintain supply voltage between 22VDC and 26VDC; torque power terminals to manufacturer specified torque values.
