Component Snapshot At-a-Glance

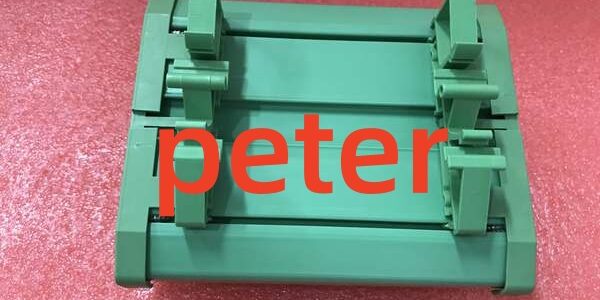

• Model: Triconex 9563-810
• Alt. P/N: 9563810
• Product Series: Tricon V9-V10 SIS Platform
• Hardware Type: 16-channel commoned digital input termination panel
• Key Feature: Per-channel resettable fuses and fault indicator lights
• Primary Field Use: Interfaces 24VDC field contacts to Tricon 3503E and 3505E DI modules in TMR safety systems.

Hard-Numbers: Technical Specifications

• Channel Count: 16 digital input points
• Input Voltage Range: 16VDC to 32VDC, nominal 24VDC
• Typical Input Current: 5 mA per active channel
• Total Power Draw: 1.2W maximum
• Isolation Rating: 1500VAC field-to-chassis and module side
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -55°C to +85°C
• Wire Gauge Range: 12 AWG to 22 AWG for screw terminals
• Protection: Resettable thermal fuses per channel
• Mounting Style: Standard DIN rail
• Certifications: IEC 61508 SIL3, TÜV, CE, UL

The Real-World Problem It Solves

Direct field wiring to DI modules exposes expensive circuit boards to short circuits and overloads. Unprotected terminations lead to premature card failure and extended downtime during trips.Where you’ll typically find it:

• Refinery ESD cabinets for emergency stop buttons and valve position feedback switches
• Offshore F&G systems for manual alarm stations and gas detector contact outputs
• Power plant BMS racks for flame sensors and burner permissive limit switchesThis panel adds localized overcurrent protection and visual fault indication to cut troubleshooting time and shield core I/O modules.

Hardware Architecture & Under-the-Hood Logic

This is a passive panel with no microprocessor. It acts as a wired intermediary between field devices and Tricon TMR digital input modules.

1. Common 24VDC power bus supplies voltage to all 16 input channels.
2. Each field contact signal passes through a dedicated resettable fuse.
3. Fault indicator LED activates when a fuse trips from overcurrent or short circuit.
4. Signals travel across isolation barriers to block transients and ground loop voltage.
5. Ribbon cable routes conditioned contact signals to paired 3503E or 3505E DI modules.
6. Labeled screw terminals organize field wiring for routine inspection and rework.

Field Service Pitfalls: What Rookies Get Wrong

Mixing Commoned and Isolated Panel TypesTechnicians swap 9563-810 with 9563-610 during replacement. Pinout and grounding differ, creating open circuits or false input states.

• Field Rule: Match part number exactly; 9563-810 is commoned power only, do not substitute 9563-610.

Ignoring Tripped Channel FusesUsers reset faults without tracing field shorts. Repeated fuse cycling will damage internal panel traces over time.

• Quick Fix: Test field wiring for short circuits before resetting tripped fuses. Tag problematic circuits for repair.

Pairing with Incompatible I/O ModulesConnecting this panel to DO modules or non-matching DI cards causes pin misalignment and permanent terminal damage.

• Field Rule: Only use 9563-810 alongside Triconex 3503E or 3505E digital input modules.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
