Component Snapshot At-a-Glance
- Model: FBMSVH
- Alt. P/N: No cross OEM alternate part; factory revision suffix variants only
- Product Series: Foxboro I/A Series FBM200 compact baseplate platform
- Hardware Type: Backplane mounted HART/FF H1 hybrid fieldbus gateway module
- Key Feature: Integrated dual isolated FF H1 trunk plus multidrop HART signal processing on single rack slot
- Primary Field Use: Converts Nodebus backplane traffic to HART/FF H1 to pull diagnostics and process values from smart field transmitters and valve positioners.

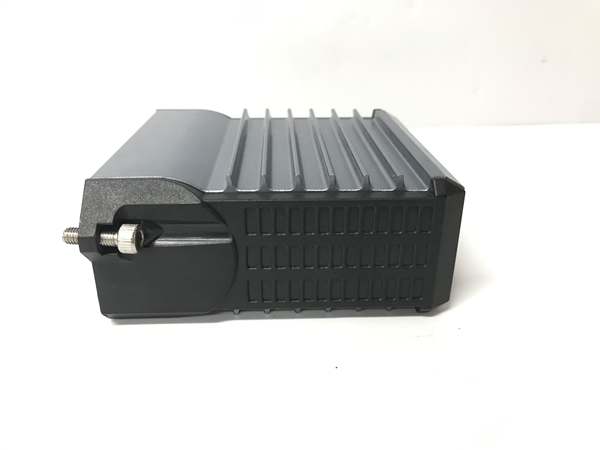

Foxboro FBMSVH
Hard-Numbers: Technical Specifications
- Protocol Support: Foxboro 2Mbps Nodebus, Foundation Fieldbus H1, HART Revision 5/7
- Port Count: 2 x FF H1 field terminals + multi-drop HART terminal bank + rear gold-finger backplane connector
- Baud/Data Rate: Fixed 2Mbps Nodebus backplane; FF H1 31.25kbps; HART 1200bps
- Operating Temperature: 0°C ~ +60°C continuous cabinet ambient rating
- Isolation Rating: 1500VAC galvanic isolation between field bus ports and DCS backplane circuitry
- Power Draw: 7.8W nominal steady load fed via baseplate 24VDC SELV rail
- Hot-Swap Rating: Approved live insert/extract on energized standard FBM compact baseplate
- FF H1 Max Node: 32 fieldbus devices per single H1 channel trunk
- HART Channel Capacity: Up to 15 multidrop HART instruments per HART terminal group
The Real-World Problem It Solves
Separate standalone HART multiplexers and external FF gateways require extra DIN rail space and auxiliary 24V power distribution, introducing dozens of intermediate termination points prone to loose connections and intermittent diagnostic dropouts. External third-party bus converters pick up VFD radiated noise, causing inconsistent smart instrument fault reporting across critical refining control loops.Where you’ll typically find it:
- Refinery distillation column smart pressure/flow transmitter marshalling cabinets
- Coal-fired boiler feedwater control rack linking HART-enabled control valve positioners
- Offshore platform process skid enclosures housing FF-H1 based mass flow transmitters
Single-slot rack consolidation eliminates extra auxiliary wiring while onboard filtering stabilizes smart instrument diagnostic data transmission.
Hardware Architecture & Under-the-Hood Logic
This module uses dual dedicated bus MCU cores separated by isolation transformers; one core manages Nodebus backplane translation, the second handles HART and FF H1 physical layer encoding with no shared field-to-backplane ground path.
- Rear gold-finger header draws regulated 24VDC supply and raw Nodebus command frames from host FBM baseplate backplane.
- Primary onboard MCU collects DCS read/write requests and splits payload into separate HART and FF H1 data queues.
- Secondary transceiver circuits convert digital queue data into physical layer signaling matching respective fieldbus electrical specs.
- Inbound field instrument data passes isolation barrier before repackaging into standard Nodebus frames for backplane transit to FCP controller.
- Front-panel LED bank tracks Nodebus sync, FF trunk active status, HART multidrop load and individual field port fault conditions.

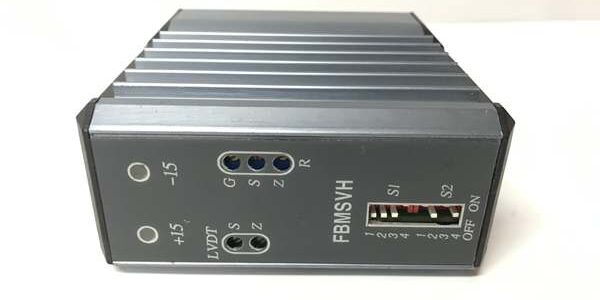

Foxboro FBMSVH
Field Service Pitfalls: What Rookies Get Wrong
Overpopulate FF H1 Trunk Beyond 32 Device Limit
New field tech adds extra FF transmitters onto single H1 bus exceeding rated node count; bus loading drops field voltage below minimum operating threshold triggering periodic full trunk offline.
- Field Rule: Split excess FF instruments onto spare second FBMSVH H1 channel once device count hits 28 per trunk leg.
Apply 24VDC Direct Feed to FF H1 Terminals
Improper field wiring routes unregulated 24V auxiliary power onto FF H1 bus pins; overvoltage burns internal bus transceiver chips and disables entire field channel permanently.
- Quick Fix: Use approved FF fieldbus isolated power conditioner; FF H1 runs on nominal 12~15VDC field bus power only.
Double-End Ground FF/HART Instrument Cable Shield
Crew grounds instrument cable braid at both DCS cabinet and field junction box; induced 60Hz ground loop noise distorts low-speed bus waveforms leading to random lost HART diagnostics.
- Field Rule: Terminate cable shield exclusively at marshalling cabinet ground bar; leave field-side shield insulation sealed and floating.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
