Component Snapshot At-a-Glance
- Model:
- Alt. P/N: 9199-00035; sibling variant -10(9199-00091,10TE width for IMR6500)
- Product Series: Emerson AMS6500 Classic Machinery Health Monitor System, API670 certified protection platform

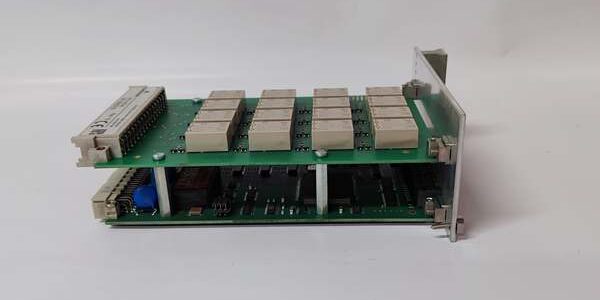

- Hardware Type: 16-channel SPDT mechanical relay output plug-in module,3U/2-slot rack form factor
- Key Feature: Accepts up to 60 discrete alarm/danger/clear input tags, programmable 0–30s per-channel time delay + 30 custom Boolean logic blocks onboard
- Primary Field Use: Converts vibration/temp/displacement monitor fault signals into hard-wired relay trips for turbine/compressor ESD and local alarm annunciation
Hard-Numbers: Technical Specifications
- Protocol Support: Backplane parallel bus for AMS6500 rack communication, Modbus auxiliary interface for remote config readback
- Port Count: 16 independent SPDT mechanical relay output channels;60 internal logic input points sourced from adjacent monitor cards
- Control Operating Voltage: 13–32VDC backplane feed for module internal relay coil drive
- Relay Contact Rating: Max 48VDC,1A resistive per SPDT contact, NO/NC software configurable per channel
- Operating Temperature: 0°C ~ +65°C continuous cabinet ambient; -40°C ~+70°C storage rating
- Isolation Rating: Full opto-isolation between rack logic bus and field relay contact terminals
- Max Power Draw: 6W total full-load module consumption from rack backplane supply
- Physical Size:12TE width(60×128.4×160mm), unit weight ~0.45kg
- Hot-Swap Rating: Live rack extraction/insertion permitted without full rack power down per API670 specs
- Shock/Vibration Rating:98m/s² peak shock(16ms pulse), 0.15mm(10–55Hz)/19.6mm/s²(55–150Hz) vibration compliant to IEC68-2
The Real-World Problem It Solves
Older machinery protection setups needed discrete external relay panels to combine multi-point vibration alarms into single shutdown signals, adding dozens of loose terminal junctions prone to open-circuit trip failures. Non-programmable legacy relays required physical jumper rewiring every time protection logic got revised mid-run.
Where you’ll typically find it:
- Refinery centrifugal compressor API670 protection rack local trip output panels
- Coal power plant steam turbine bearing vibration ESD annunciation cabinet
- Petrochemical gas turbo-expander machinery health monitor control enclosures
It consolidates multi-source protection logic inside one plug-in card and eliminates external interposing relay wiring entirely.
Hardware Architecture & Under-the-Hood Logic
Onboard dedicated MCU manages backplane data collection, user-programmed Boolean logic execution and individual mechanical relay coil drive; each relay path has independent fault status feedback circuit back to rack bus.
- Gold-finger rear edge pulls regulated DC power + digital fault status from neighboring AMS6500 measurement cards over rack parallel backplane bus.
- MCU catalogs all incoming 60 clear/alarm/danger input states against stored 30 user-defined logic equations saved to onboard nonvolatile memory.
- Logic result triggers coil drive voltage to target SPDT mechanical relay after user-set 0–30s programmable delay to filter transient nuisance spikes.
- Each closed relay contact routes hardwired dry contact signal to site ESD solenoids or local alarm beacon wiring.
- Internal channel diagnostics sample coil/contact health continuously and push fault flags back to AMS host over Modbus or rack bus.
Field Service Pitfalls: What Rookies Get Wrong
Mix (12TE) with IMR6500 Rack Designed for -10(10TE)
New tech seats standard into compact IMR6500 chassis slot, dimensional mismatch creates partial backplane pin contact leading to intermittent random relay dropout and spurious unit trips.
- Field Rule: 12TE only for IMR6000 racks; narrow 10TE -10 exclusively paired with IMR6500 rack chassis.
Overloading Relay Contacts Past 48V/1A Rated Limit
Field crew routes 120VAC solenoid loads directly onto module SPDT terminals without intermediate interposing relay, welding relay contacts permanently closed and disabling critical machine shutdown capability.
- Quick Fix: Install external low-power interposing relay for all AC loads exceeding module 48VDC 1A contact rating.
Skip Logic Backup Before Card Swap
Tech pulls live module without uploading stored 30-block logic config to engineering PC, replacement blank card loads factory default empty logic and drops all compressor protection trip points offline.
- Field Rule: Pull Modbus config backup to local laptop before any hot-swap replacement of hardware.
