Component Snapshot At-a-Glance

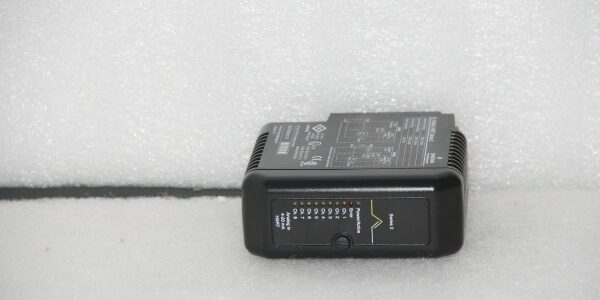

- Model: KJ3201X1-BA1
- Alt. P/N: VE4001S2T2B2, 12P2535X022, 12P2535X032
- Product Series: DeltaV Series 2 Plus M-Series I/O System
- Hardware Type: 8-channel dry contact digital input module
- Key Feature: Onboard internal 24VDC sense supply for passive field dry contacts without external field power
- Primary Field Use: Picks up passive contact status from limit switches, relay contacts and valve position feedback for DeltaV DCS control logic
Hard-Numbers: Technical Specifications
- Protocol Support: DeltaV LocalBus backplane communication
- Port Count: 8 independent isolated dry contact input channels
- Sense Voltage/Current: Internal 24VDC @15mA max per channel for contact polling
- Operating Temperature: -20°C to +60°C cabinet ambient rating
- Isolation Rating: 1500VAC group-to-backplane galvanic isolation via optocoupler
- Power Draw: 3.2W nominal pulled entirely from backplane LocalBus rail
- Hot-Swap Rating: Live rack insertion permitted without rack power shutdown
- Certifications: UL, CSA, Class I Div 2, ATEX II3G
- Weight: 0.26kg per module
The Real-World Problem It Solves
Field passive contact circuits required separate external 24V field power wiring on older DI hardware, adding dozens of extra field cable runs and loose terminal points prone to open faults. Non-isolated legacy DI cards let field short circuits crash entire rack backplane power.
Where you’ll typically find it:
- Refinery furnace shutdown interlock cabinet valve limit feedback racks
- Coal power plant FD/ID fan auxiliary cabinet motor auxiliary contact monitoring
- Chemical plant batch valve manifold local feedback I/O panels
It eliminates external field supply wiring for passive contacts while containing channel faults behind opto-isolation barriers.
Hardware Architecture & Under-the-Hood Logic
This is microprocessor-controlled intelligent DI card with integrated isolated 24V sense generation and optocoupler per input group; no external field power feeds required for dry contact operation.
- Rear gold finger interface draws regulated logic power and LocalBus communication data from paired KJ4001-series terminal base backplane.
- Onboard isolated DC-DC converter generates stable 24VDC sense voltage fed out to each field terminal through base wiring.
- Closing field dry contact completes the sense loop, pulling input low to trigger optocoupler conduction.
- Optocoupler converts analog contact state into digital logic signal read by onboard MCU.
- MCU packages all eight channel status and fault flags then transmits data back to DeltaV controller over LocalBus.
Field Service Pitfalls: What Rookies Get Wrong
Applying External Live AC/DC Power Into Dry Contact Terminals
New crew feeds raw 24V active sourced field power directly to module input terminals instead of passive dry contacts, blowing channel optocouplers and locking permanent FAULT indication.
- Field Rule: Confirm all field devices are passive dry contact only before wiring; switch to KJ3202X1-BA1 for active NPN/PNP powered field inputs.
Mix Series 1 Terminal Base With Series 2 Plus DI Module
Installers slot onto outdated first-gen DeltaV base hardware with mismatched pin mapping, triggering constant bus fault and all channels offline.
- Quick Fix: Only use matching Series 2 Plus KJ4001X1-CB1 terminal base for this specific DI card variant.
Ignoring Cable Insulation Degradation Causing Phantom Closures
Damaged field cabling with partial insulation breakdown creates intermittent leakage current that mimics closed contact state with no actual mechanical switch closure.
- Field Rule: Disconnect field wiring at base terminals then short base pins manually to isolate between faulty field cable or intact module hardware.
