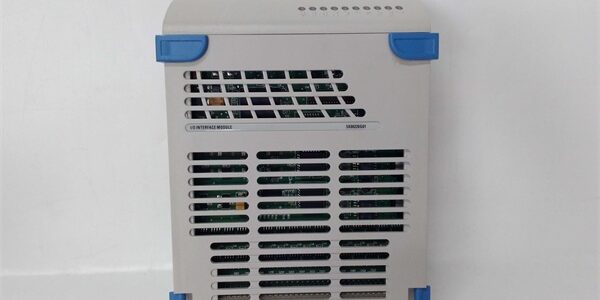

Field Engineer’s Notes (From the Trenches)
The “Gotcha” is TBSH Base Fuse, Load Voltage Rating & SSR vs Relay Version.
Terminal Base (TBSH) Fuse: Many Ovation DO installations use a user-installed ATC/ATO blade fuse (3A or 5A) on the TBSH base’s +V distribution. If alloutputs on a group or the whole module are dead (Point LEDs respond to forces but load doesn’t energize; or Fuse LED on base lit), check this fuse first. The module itself rarely “blows” — it’s the base feeder fuse that protects the field wiring.
Load Voltage — READ THE LABEL: Some 5X00226G01 sub-revs are 24V DC Only (SSR type); some are 120V AC/DC (relay or SSR). Forcing 120V AC into a 24V DC-only module will destroy it instantly. Verify the white sticker: “Max Load: __V __A” before landing field power.
SSR vs Relay Click: Relay versions make an audible “click” on each state change (helpful for bench testing). SSR versions are silent. If you expect a click and hear silence but the LED lights and the load energizes — that’s normal for SSR. If LED lights, no click, load doesn’tenergize on a relay version → check for welded contacts (load may be stuck ON) or open coil (load won’t come ON — listen for anyfaint click; if none, coil may be open → module bad or voltage not landed at base).
Common (COM) Landing: The TBSH base typically has one or two COM terminals. Land your field 0V (DC) or Neutral (AC) there and tighten to spec (7 lb-in / 0.8 Nm). A loose COM is the #1 cause of “LED ON but load OFF” on a newly commissioned drop — the return path is open.
Real-World Applications
- Balance-of-Plant (BOP) Pump Controls: An Ovation Drop with 5X00226G01 modules drives 120V AC coil seal-in relays for 4160V pump starters (Run/Stop/Auto), plus 24V DC stacklights (Running/Fault/Local Mode) on the same module (if AC/DC rated). The per-point LEDs let the operator see which starter command is active during a manual start attempt.
- Chemical Inj. Skid (24V DC Solenoids): 5X00226G01 (24V DC version) in a NEMA 4X drop near the skid drives sixteen 24V DC solenoid valves (0.3A each). Open Wire / Fuse status reports to the Ovation HMI; during FAT the bench-test click confirmed wiring before live chemical was introduced.
High-Frequency Troubleshooting FAQ
Q: Point LED lights when forced ON, but the field device (solenoid/relay) does NOT energize.
A: Missing Field Power at TBSH Base or Loose COM.
- Check the TBSH Terminal Base: Is the field supply voltage (+24V DC or 120V AC) landed on the +V (Load Supply +) terminal? Is it tight?
- Check the COM (Common / 0V / Neutral) terminal on the TBSH base — is the return landed and tight? Measure voltage across +V and COM— should be the supply voltage. If 0V → supply breaker/fuse issue.
- With the point forced ON, measure voltage across the load(between Output terminal and COM). Should be ≈ supply voltage. If 0V across load but +V-to-COM = good supply → Output terminal or internal contact open (rare; swap module if confirmed). If supply voltage present across load but load doesn’t actuate → load itself is faulty (burned-out coil).
- Check the base ATC fuse (if equipped) — is it blown? (Visual or DMM continuity). Blown fuse → no +V to outputs → LEDs may still light (logic side alive) but no field power.
Q: “Fault” LED Red or Ovation shows “Module Not Responding” / “Drop I/O Fault”.
A: Seating or Base Issue.
- Power down the Drop (or use Ovation hot-swap: note the module’s slot #). Loosen thumb-screws, remove module, inspect gold-edge connector for contamination.
- Ensure the TBSH/TBQC Terminal Base is bolted secure and the Drop Bus ribbon is seated in the base rear.
- Re-insert: press firmly until seated, tighten thumb-screws evenly. Power up / allow Drop to re-scan. “OK” LED should blink init → steady Green.
- If Fault persists → try module in a known-good TBSH base in same drop (swap test). Works = original base bad (Drop Bus interface on base failed). Fails in good base = module defective.
Q: Can I replace a legacy 1C31189G01 with 5X00226G01?
A: Yes, in most Ovation Drop retrofits — verify voltage rating & terminal base compatibility.
- The 1C31189G01 was an older 16-pt DO. The 5X00226G01 is the current-generation form-fit-function replacement for use with TBSH/TBQC bases.
- Confirm: (a) your TBSH base is the correct type (1C31125G02 or later — “G02” suffix bases support both old and new modules), (b) the load voltage/current on the 5X00226G01 label matches your field supply (24V DC or 120V AC/DC as applicable), (c) the Drop Controller firmware is reasonably current (post-2000 Ovation revisions support the new ID — very old pre-Y2K drops may need a CBS update; check with Emerson support if unsure).
- Physical seating: align the module keying with the TBSH base — it will only go in one way.
