Product Quick-Glance Brief

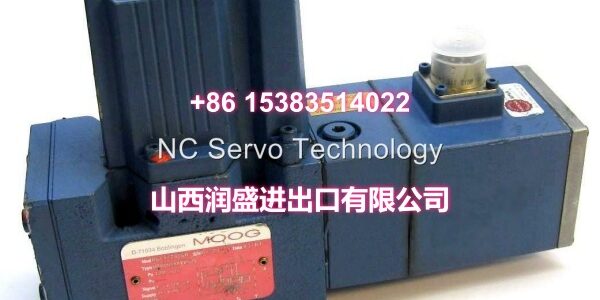

• Model: MOOG D661-4537C
• OEM: MOOG
• Category: 2-Stage ServoJet Pilot Servo Valve
• Core Function: Delivers high-dynamic flow control with integrated electronics and analog interface.
• Key Specs: ISO 4401 Size 05, 350 bar Max Pressure, 24 VDC Supply

Technical Overview & Field Application

Traditional pilot stages bleed energy and generate heat. The MOOG changes the equation. It uses ServoJet® pilot technology, a design that significantly reduces pilot flow losses compared to conventional nozzle-flapper stages. This means less heat in your hydraulic cabinet and more power available for your actuator. It is a 2-stage electro-hydraulic servo valve with integrated electronics, eliminating the need for bulky external amplifier cards and reducing wiring complexity on the machine.

Engineers trust this unit for applications demanding extreme dynamic performance. With a step response as fast as 6.5 ms and a maximum operating pressure of 350 bar, it handles the rigors of steel rolling mills, plastic injection molding, and high-speed test stands. The integrated SMD electronics provide high-resolution control and built-in diagnostics, making loop tuning and troubleshooting faster than ever.

Global deployment requires standardized interfaces. This valve conforms to the ISO 4401-05 (NG10) mounting pattern, ensuring direct interchangeability with legacy systems worldwide. The “4537C” suffix defines specific performance characteristics, including spool type, seal material, and electrical options. Always verify the full suffix when replacing a failed unit, as even minor variations can affect system stability or safety functions.

Essential Specifications

Quality Assurance Protocol

We verify dynamic performance, not just part numbers. Every MOOG undergoes rigorous functional testing to ensure the integrated electronics and ServoJet® pilot stage meet OEM specifications. We test the entire closed-loop system.

• ServoJet® Pilot Verification: We validate the pilot stage’s dynamic response and centering accuracy to ensure optimal main spool control.
• Step Response Testing: We apply a 100% step signal to confirm the valve achieves its target position within the 6.5-18 ms threshold.
• Integrated Amplifier Check: The internal SMD electronics are tested for correct gain, offset, and PWM drive to the torque motor.
• Leakage & Pressure Test: Each valve is cycled at 350 bar to validate seal integrity and internal leakage rates.

Pro Tip: Always verify the control signal type (voltage vs. current) matches your PLC or motion controller output before wiring. A mismatched signal will cause the integrated amplifier to fault or behave erratically.

Engineer’s Installation / Replacement Notes

Field installation of a ServoJet® valve is straightforward, but fluid cleanliness and electrical noise remain critical. Follow these peer-to-peer guidelines to protect your investment.

• Fluid Cleanliness is Non-Negotiable: While ServoJet® pilots are more tolerant than nozzle-flappers, they still demand clean fluid. Target ISO 4406 <15/12 to protect the main spool lands and prevent premature wear.
• Signal Shielding: The integrated amplifier processes low-level signals. Route the control cable away from VFDs and high-current motor leads. Always ground the shield at the controller end to prevent electromagnetic interference.
• T Port Pressure Limits: If your T (tank) port pressure exceeds 210 bar with internal drain, you must use the Y port for external drain. Ignoring this can blow out the internal shaft seals.
• Verify the “4537C” Suffix: The suffix defines critical options. Is it a zero-overlap or positive-overlap spool? Does it have a fail-safe spring? Mismatched suffixes will cause system failure or safety hazards.

Critical Warning: Never apply 24 VDC to the signal input terminals. The integrated amplifier expects a low-power command signal. Reversing power and signal wiring will instantly destroy the internal SMD electronics.
