Product Core Brief
- Model: T8151B
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted TMR Safety System
- Core Function: Provides reliable communication interfaces for the Trusted Controller, minimizing the communication load on the TMR processor.
- Product Type: Trusted Communications Interface (CI) Module
- Key Specs: Dual Ethernet | 4 Serial Ports | Modbus Support | Hot-Swappable
- Condition: New Original (New Surplus)
Product Introduction
The is a highly reliable communications interface module designed specifically for the Trusted TMR (Triple Modular Redundancy) safety system. Acting as a dedicated intelligent module, it provides a suite of communication services to the Trusted Controller, effectively offloading and minimizing the communication processing burden from the main TMR processor.
Engineered for mission-critical industrial environments, the features dual Ethernet ports and four serial ports, supporting a wide range of industrial communication protocols. Its user-configurable architecture allows it to support multiple communication media, ensuring secure and deterministic data exchange across the plant network while maintaining the high availability required for safety-critical applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Trusted Communications Interface (CI) |
| System Compatibility | ICS Triplex Trusted TMR Controller Rack |
| Network Interfaces | Dual Ethernet Ports |
| Serial Interfaces | 4x Serial Ports (Includes Front Panel Diagnostic Port) |
| Protocol Support | Modbus (Slave), Optional Modbus Master (with T812X adapter) |
| Advanced Features | Optional Sequence of Events (SOE) over Modbus |
| Hot Swap | Supported (Module replacement without program downloading) |

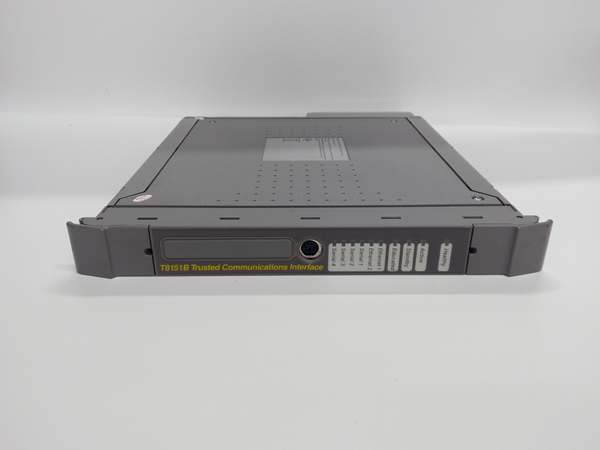

| Status Indication | Front Panel Fault and Status LEDs |
| Redundancy Architecture | High-Performance Communication Link |
| Certifications | Industrial Automation Standards |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.

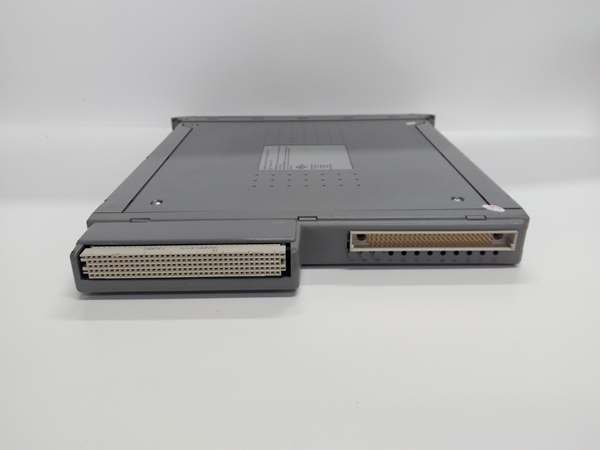

- Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the backplane connector and ensures the front panel serial port and status LEDs are intact.
- Live Functional Test: We mount the unit in a live TMR test rack. We verify the module’s communication handshake over both Ethernet and serial interfaces, confirming the controller recognizes the module without configuration errors.
- Electrical Parameter Test: We perform a 500 V Megger test between the communication terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Diagnostic Injection Test: We simulate network communication faults to confirm the module’s internal diagnostics trigger the correct fault codes and successfully isolate the fault without disrupting the main controller.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on TMR communication systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing TMR CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
- Modbus Master Dependency: ❗ Critical. The natively operates as a Modbus Slave. If your application requires Modbus Master functionality, you must have the companion T812X Trusted Processor Interface Adapter installed. Missing this adapter will result in communication failure.
- Network Cable Integrity: Inspect the dual Ethernet and serial cabling before plugging in the new card. A damaged or improperly terminated cable will cause communication dropouts that mimic module failures.
- Hot-Swap Procedure: While the module supports online hot-swapping, always follow the TMR system’s specific hot-swap procedure. Improper removal can cause a momentary mismatch in the redundant slices, potentially triggering a system fault.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility
- ICS Triplex Rev A → Rev B : Direct Replacement — Verify firmware compatibility with TMR CPU.
- ICS Triplex → T812X Adapter : Companion Hardware — T812X is required to enable optional Modbus Master functionality.
Benchmarks
- Bus Communication Latency: < 5 ms (verified at full network load)
- Fault Isolation Time: < 10 ms (from fault detection to local containment)
Need the wiring diagram for the communication interfaces? I can pull up the termination schematic showing the dual Ethernet and serial port configurations.
