Product Core Brief
- Model: FC-TDIO51
- Brand: Honeywell
- Series: Industrial Automation / DCS
- Core Function: Acquires multi-channel analog signals and converts them to digital data for processing.
- Product Type: Data Collector / I/O Module
- Key Specs: 24 V DC | Module Style | 0.5 KG
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL FC- operates as a specialized data collector for industrial automation and monitoring systems. This unit receives analog signals from field sensors and converts them into digital formats for system analysis.
Unlike basic digital inputs, this module features high-resolution acquisition with real-time monitoring and alarm capabilities. It supports Ethernet, serial, and Modbus protocols for reliable data transmission. Verify with OEM datasheet for exact channel counts.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Type | Multi-Channel Analog |
| Operating Voltage | 24 V DC |
| Communication | Ethernet, Serial, Modbus |
| Structure | Module Style |
| Installation | Control Room |
| Weight | 0.5 KG |
| Processor | Hard PLC |
| Function | Signal Conversion |

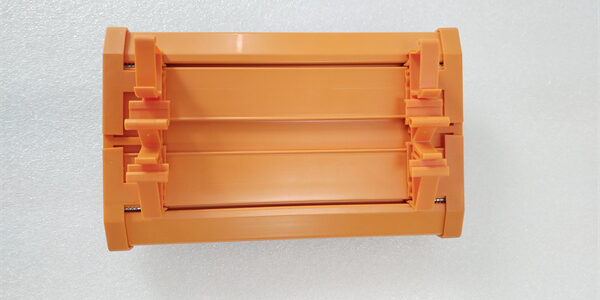

Honeywell FC-TDIO51
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify comms handshake and run continuous load tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Firmware Verification: Read and record firmware version immediately. Photograph DIP switch and jumper settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Firmware Mismatch: New module firmware may conflict with older DCS controllers. Always check version compatibility before racking.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Verify bus termination resistor placement on the third terminal block.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Check shield grounding at the terminal board to prevent noise.
❗ Power Supply Mismatch: Calculate total rack power draw. Maintain 20% headroom on your 24 V DC supply to prevent brownouts.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
Honeywell FC-TDIO51
Compatibility Matrix & Benchmarks
- FC- → FC-TDIO52 : Needs Adaptation — Verify channel mapping differences
- FC- → FC-TDIO01 : Needs Adaptation — Check base unit compatibility
- FC- → FC-TDIO11 : Incompatible — Different signal processing architecture
Benchmarks:
- Scan cycle: 50 ms (simulated load, multi-channel I/O)
- Comms throughput: Modbus RTU/TCP (Protocol dependent)
