Product Core Brief

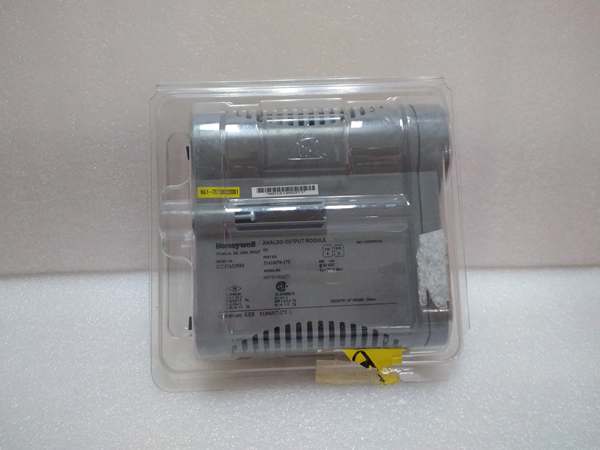

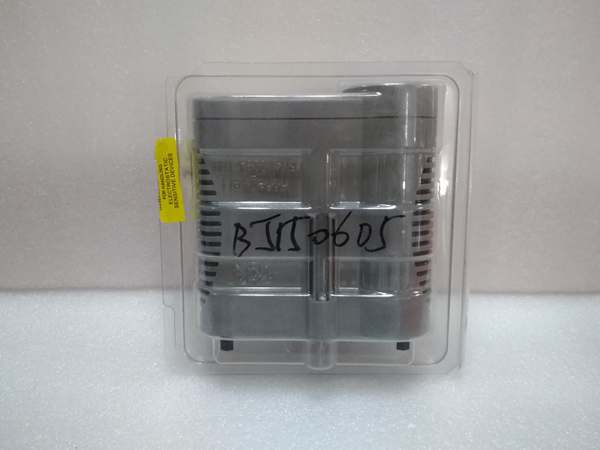

• Model: CC-PAON01 (also known as 51410070-175)
• Brand: Honeywell
• Series: Experion PKS / C300 DCS
• Core Function: Converts digital control signals into precise analog outputs for field actuators.
• Product Type: Analog Output (AO) Module
• Key Specs: Analog Output | C300 Compatible | High-Precision D/A
• Condition: New Original (New Surplus)

Product Introduction

The is a dedicated analog output module designed for the Experion PKS C300 controller. It serves as the critical interface between the digital control logic and final control elements, such as control valves, variable frequency drives, and positioners.

This module delivers high-resolution digital-to-analog conversion with exceptional stability. Engineered for continuous process control, the features robust signal conditioning and anti-interference capabilities to ensure accurate 4-20 mA output even in electrically noisy industrial environments.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number (51410070-175) against Honeywell’s traceability records. A visual inspection checks for bent pins on the C-Bus connector and ensures the DIN rail clip isn’t cracked.
2. Live Functional Test: We mount the unit in a live C300 test rack. We force specific digital values and verify the 4-20 mA output at the terminals using a calibrated Fluke 754 process calibrator.
3. Electrical Parameter Test: We perform a 500 V Megger test between the field output terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
4. Firmware Verification: We read the module’s internal firmware revision via the service port. We photograph the DIP switch settings to ensure they match factory defaults before shipping.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

Replacement Pitfall Guide

Field replacements on DCS systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing CPU. The Experion controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
2. DIP Switch / Jumper Misconfiguration: This module uses hardware addressing. If you pull the old card and forget to transfer the binary address switches to the new one, the CPU will report a missing module.
3. Terminal / Cable Incompatibility: Inspect the shielded twisted-pair cabling before connecting. Analog 4-20 mA signals are highly sensitive to electrical noise; a broken shield or ground loop will cause erratic valve positioning that mimics module failure.
4. Power Supply Mismatch: Verify your external 24 VDC field power supply has at least 20% headroom over the total calculated load. This module draws current for its own internal D/A conversion circuits.
5. ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility

• Honeywell CC- Rev A → CC- Rev B : Direct Replacement — Verify firmware compatibility with CPU.
• Honeywell CC-PAOH01 → CC- : Needs Adaptation — Different backplane architecture; requires logic re-validation.

Benchmarks

• Output Response Time: < 5 ms (from CPU command to terminal state change)
• Signal Integrity: High-precision D/A conversion (verify exact % tolerance with OEM datasheet)
