Product Core Brief
- Model: FC-TSGAS-1624
- Brand: Honeywell
- Series: TDC 3000 / DCS
- Core Function: Manages high-speed data link communication between DCS controllers and I/O subsystems.
- Product Type: Communication Module
- Key Specs: 24 V DC | Module Style | 0.5 KG
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL FC- serves as a critical communication interface within Honeywell DCS architectures. This module handles data link protocols to ensure reliable exchange between control processors and field I/O.
Unlike standard I/O cards, this unit focuses on network integrity and fault-tolerant data transfer. It typically supports redundant data highways for continuous operation. Verify with OEM datasheet for exact baud rate and protocol revision.

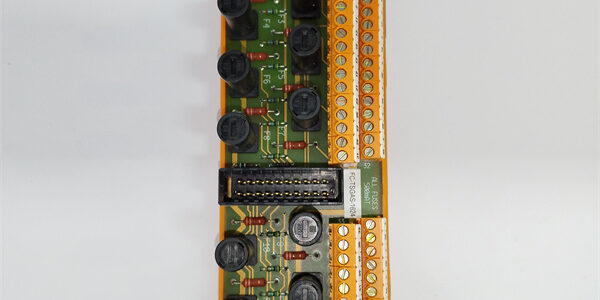

Honeywell FC-TSGAS-1624
Key Technical Specifications
| Parameter | Value |
|---|---|
| Function | Data Link Communication |
| Operating Voltage | 24 V DC |
| Structure | Module Style |
| Installation | Control Room Rack |
| Weight | 0.5 KG |
| Processor | Hard PLC Logic |
| Certification | CE |
| Origin | USA |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify comms handshake and run continuous load tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Firmware Verification: Read and record firmware version immediately. Photograph DIP switch and jumper settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Firmware Mismatch: New module firmware may conflict with older LCN/UCN nodes. Always check version compatibility before racking.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Verify bus termination resistor placement on the third terminal block.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Check shield grounding at the comm cable connector to prevent noise.
❗ Power Supply Mismatch: Calculate total rack power draw. Maintain 20% headroom on your 24 V DC supply to prevent brownouts.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
Honeywell FC-TSGAS-1624
Compatibility Matrix & Benchmarks
- FC- → FC-TSGASH-1624 : Needs Adaptation — Verify LCN node address settings
- FC- → FC-TSGAS-1625 : Needs Adaptation — Check firmware revision level
- FC- → FC-TDIO51 : Incompatible — Different module function (I/O vs Comm)
Benchmarks:
- Scan cycle: 50 ms (simulated comm load, full bus)
- Comms throughput: 5 Mbit/s (LCN Data Highway)
