Product Core Brief

• Model: UFC760BE41 3BHE004573R0041
• Brand: ABB

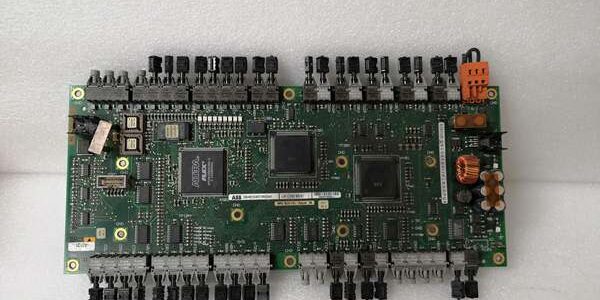

• Series: UFC760 series single-loop generator excitation & synchronizing interface board for UNITROL / Advant OCS power control racks
• Core Function: Samples single set of generator-grid PT signals to run closed-loop PID voltage regulation and synchrocheck interlock logic for single busbar power station layouts
• Product Type: Horizontal rack-slotted single-channel real-time excitation control PCB
• Key Specs: Single galvanically isolated PT measuring loop | ST fiber trunk port | 32-bit DSP processing core
• Note: Full platform end-of-life; factory sealed new assemblies and fully cyclic load-tested surplus available for aging thermal and hydro power plant cabinet maintenance

Key Technical Specifications

• OEM article number: 3BHE004573R0041
• PT secondary measuring input range: 50–130 VAC single-phase, 1500 VAC galvanic isolation between field wiring and rack backplane
• Adjustable paralleling threshold window: Voltage difference 0.1–40%, slip frequency 0.01–6%, phase angle 1–99°
• Breaker close command latency: Fixed 10 ms core response, pulse width configurable 50–990 ms
• Communication interfaces: Single ST multi-mode fiber trunk port, RS485 Modbus RTU, proprietary Masterbus300 rack backplane
• Auxiliary operating supply: 24 VDC ±10% SELV, max 15 W continuous power draw
• Safety compliance: IEC 61508 SIL 2, IEC 60255-127 synchrocheck standard, EU RoHS 2011/65/EU, CE certified
• Local diagnostic indicators: Front RUN power LED, COM communication status light, CH FAULT measuring loop alarm LED
• Enclosure rating: IP20 for interior control cabinet mounting
• Mechanical mounting: Standard horizontal UNITROL rack clip-in slot footprint
• Operating ambient temperature: -20°C to +55°C sealed cabinet; storage -40°C to +85°C
• Humidity tolerance: ≤75% RH non-condensing below 55°C
• PCB protection: Standard industrial conformal coating for mild coastal corrosive cabinet environments
• Net assembly weight: 0.46 kg
• Overall dimensions: 125 mm D × 47 mm W × 178 mm H

Product Introduction

This rack-mounted single-loop DSP board executes independent generator voltage and slip control for single busbar power station designs, without dual redundant measuring channels. It samples generator terminal PT voltage, stator current and field winding temperature signals to output analog trim commands to excitation power stages and turbine speed governors. The single ST fiber port extends Masterbus300 communication to remote I/O clusters, and internal galvanic isolation suppresses ground loop transients induced by nearby variable frequency drives and motor control centers. All commissioning tuning parameters store to on-board Flash memory to retain setpoints through full cabinet power outages.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against ABB UNITROL excitation spare asset database to filter counterfeit assemblies; inspect ST fiber ferrule port, rear backplane gold edge pins and front LED array with a 10x magnifier for bent pins or thermal discoloration; log serial numbers for full generator protection traceability records.
2. Live Testing: Seat the unit on a standard Advant test rack paired with a SYN5201 single-channel synchronizer and two calibrated AC signal simulators for generator/grid PT loops; supply rated 24VDC rack power; run a continuous 24-hour cycle test including slip deviation sweeps, PT wire break fault injection and fiber cable fault trigger validation.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between PT measuring terminals and cabinet chassis ground; measure cabinet PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph front LED status mapping and OEM maximum fiber cable length limits printed on the unit housing for field wiring reference.
5. Final QC & Packaging: Wipe PCB surface with static-dissipative microfiber cloth; cap ST fiber port with insulating plastic dust cover; seal the assembly inside a shielding ESD bag, attach a printed QC tag with full 24-hour single-loop excitation cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Firmware revision mismatch disables single-loop fault suppression algorithms: Older firmware builds contain inaccurate slip detection logic; match the exact firmware version of the original hardware before power-on to avoid constant false synchrocheck fault interlocks. ❗ PT secondary wiring polarity reversal creates permanent 180° phase offset: Swapped voltage measuring leads lock the entire loop out of all paralleling window calculations until polarity correction and full rack power cycle completion. ❗ Exceeding OEM maximum fiber cable length creates scan lag: Multi-mode fiber runs longer than 150 meters push control cycle timing above 250ms, violating grid code fast voltage regulation tolerances. ❗ ESD discharge destroys internal DSP analog sampling ICs: Bare finger contact with PCB measuring traces disables the PT input loop entirely, requiring full unit replacement and multi-day generator outage windows during peak power demand periods. ❗ Hot-swap energized PT secondary circuits generates lethal open-circuit voltage: Removing the unit under live rack power creates high secondary open-circuit voltage spikes that damage adjacent synchronizer and protection relay hardware in the cabinet rack.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power supply breaker; short all PT secondary test switches via dedicated test switch hardware; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of ST fiber trunk cabling and single PT measuring wiring layout.
2. Removal: Unplug the ST fiber cable from the front optical port; disconnect all PT measuring wires channel by channel following captured photos; release four front panel mounting fasteners, pull the old unit straight out of the rack slot without twisting rear wiring harness edge pins.
3. Install: Align the board with rack slot rails and seat fully inward until the latch clicks locked; clean fiber ferrules with OEM alcohol wipes then re-seat ST fiber cable straight into the optical port; re-terminate all PT measuring wiring matching captured polarity sequence to OEM specified torque values.
4. Power-on Test: Power on 24VDC auxiliary supply; confirm steady green RUN LED and active COM traffic indicator; inject calibrated generator/grid PT signals to validate linear voltage/frequency trimming response; simulate fiber trunk cable pull to confirm red FAULT LED activates and logs all excitation fault events to the plant SCADA server.

FAQ

Q: Can this unit operate without paired turbine governor and generator excitation power stage hardware? A: It will sample PT voltage signals and display local measurements on the front LED array, but all automatic voltage and slip trim adjustment logic will be disabled. Matched governor/excitation power stage hardware is required to execute grid-compliant paralleling sequences. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power and PT circuits stay energized? A: It is not supported. Live extraction creates lethal open-circuit PT secondary voltage transients and disrupts the rack’s shared Masterbus300 clock signals, leaving generator operation unmonitored during the replacement window. Full power lockout and PT shorting via test switches are mandatory before disassembly. Q: What warranty coverage applies to stocked units? A: Factory-new original single-loop excitation interface boards carry a 12-month OEM warranty covering PT analog sampling circuits, ST fiber transceivers, trim output drivers and front diagnostic LED arrays. Cyclic load-tested surplus units come with a 6-month functional warranty. Damage from contaminated fiber ferrules, reversed PT wiring or ungrounded ESD handling voids all coverage. Q: What hardware replaces this unit for new power station DCS builds? A: New UNITROL 6800 deployments use UFC760BE143 dual-channel boards with redundant fiber ports and expanded fault waveform recording capacity. This variant is only approved for one-to-one maintenance replacement of pre-2020 installed single-busbar excitation control racks. Q: Will stored synchronization threshold parameters be lost after full cabinet power outage? A: All voltage deviation, slip and phase angle window setpoints save to on-board non-volatile Flash memory, so power loss does not erase site-specific commissioning tuning values. No physical switch address configuration exists on this model, so no manual reassigning is required after hardware swap. Q: What are the most common failure modes for a faulty unit? A: Persistent red FAULT LED with correct PT wiring sequence, failure to output trim adjustment signals to turbine/excitation control hardware, complete loss of fiber trunk communication with undamaged fiber cabling, excessive control scan lag under maximum PT load, blank front status LED array with normal 24VDC auxiliary supply, and incomplete fault waveform recording during generator paralleling transient events.
