Product Core Brief

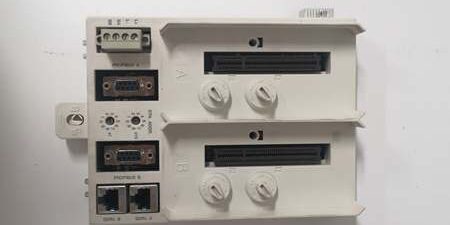

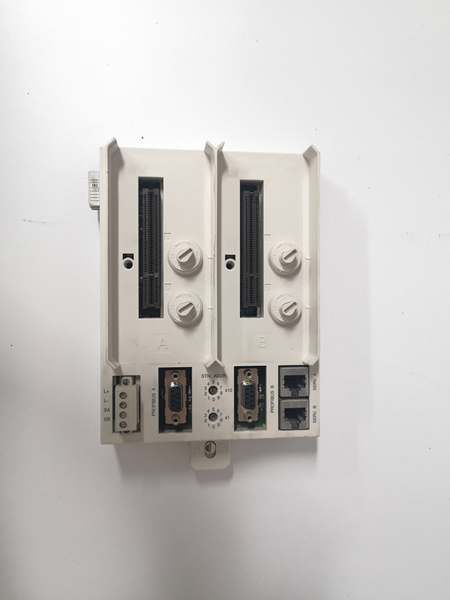

• Model: TU847 3BSE022462R1
• Brand: ABB
• Series: S800 I/O Module Termination Unit (MTU) for AC800M / 800xA DCS
• Core Function: Hosts dual redundant CI840/CI840A communication modules and routes ModuleBus and PROFIBUS signals
• Product Type: DIN rail mounted passive redundant communication base
• Key Specs: Dual rotary 0–99 address switches | 24VDC SELV backplane power | IP20 cabinet rating
• Note: Full platform end-of-life; factory sealed new assemblies and load-tested surplus available for power plant and chemical DCS cabinet retrofits

Key Technical Specifications

• Supported communication hardware: Dual CI840 / CI840A PROFIBUS DP-V1 interface modules
• Bus interfaces: Single electrical ModuleBus segment, dual D-Sub9 PROFIBUS ports
• Address configuration: Two independent rotary mechanical switches, node ID range 0–99
• Auxiliary supply: 24 VDC ±10% SELV, max 8A total rack current draw
• Optical expansion port: D-Sub25 inlet to pair with TB806 and TK801 extension cables
• Mechanical keying: 4 configurable key pieces, 36 unique lock profiles to block incompatible hardware insertion
• Enclosure rating: IP20 for interior cabinet mounting
• Mounting options: Horizontal or vertical EN 50022 DIN rail latching design
• Operating temperature: 0°C to +55°C sealed cabinet; storage -40°C to +70°C
• Humidity tolerance: 5%–95% RH non-condensing below 55°C
• PCB protection: Standard conformal coating for mild corrosive industrial sites
• Net weight: 0.55 kg
• Compliance: EU RoHS 2011/65/EU, IEC 61131-2, CE certified

Product Introduction

This DIN rail base provides dedicated slot mounting for paired communication interfaces, creating a redundant PROFIBUS DP-V1 bus topology to eliminate single communication failure points for critical plant I/O clusters. Passive routing circuits maintain stable ModuleBus signal integrity across extended TK801 cable runs, and dual address switches prevent bus collisions that drop all remote process data within 3 seconds of power activation.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial number against ABB S800 spare asset database to filter counterfeit assemblies; inspect dual PROFIBUS D-Sub9 ports, ModuleBus connector and rotary address switches with a 10x magnifier for pin bending or thermal discoloration; log serial numbers for full plant traceability records.
2. Live Testing: Seat the unit on a DIN rail test bench paired with two CI840A modules and a mixed analog/digital I/O load bank; supply rated 24VDC rack power; run a continuous 24-hour cycle test including duplicate address fault injection, maximum-length TK801 cable throughput validation and automatic redundant bus failover checks.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between PROFIBUS signal terminals and cabinet chassis ground; measure PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph original rotary switch address values and mechanical key layout from the old hardware; record OEM ModuleBus termination TB807 installation reference for field matching.
5. Final QC & Packaging: Wipe plastic housing with static-dissipative microfiber cloth; cap all PROFIBUS and ModuleBus connectors with insulating dust covers; seal the assembly inside a shielding ESD bag, attach a printed QC tag with full 24-hour redundant bus cycle test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Duplicate PROFIBUS node IDs crash the entire cabinet bus: Photograph rotary switch positions on the old hardware before removal; matching address values create continuous bus parity errors and mass I/O data loss. ❗ Mismatched mechanical key profiles block module seating: Retain photos of original key configuration; incorrect key settings prevent CI840 hardware from fully latching, breaking ModuleBus communication handshakes. ❗ Unterminated ModuleBus triggers constant scan retries: The unit ships with a TB807 terminator; omitting this component raises bus impedance and introduces periodic communication timeouts under full I/O load. ❗ ESD discharge destroys internal bus filter transformers: Bare finger contact with PCB signal traces can disable both PROFIBUS ports, requiring full unit replacement and multi-hour plant production downtime. ❗ Hot-swap energized 24VDC supply corrupts differential bus clock signals: Removing the base under live rack power forces both paired communication modules to cold restart, creating an unmonitored plant process blind zone.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power supply; wait 10 minutes for internal logic capacitors to fully discharge; don ESD wrist strap; capture photos of PROFIBUS cabling, ModuleBus wiring and rotary address switch layout, record original mechanical key positions.
2. Removal: Disconnect all PROFIBUS D-Sub9 and ModuleBus signal wires one by one following captured photos; release the DIN rail retention clip, slide the old hardware horizontally off the rail without twisting edge connector pins.
3. Install: Configure mechanical keys on the new base to match photographed profiles; set dual rotary address switches to recorded node ID values; seat the unit firmly on DIN rail rails until the latch clicks locked; re-terminate all bus wiring to OEM specified torque values and install the supplied TB807 terminator.
4. Power-on Test: Restore cabinet 24VDC power; confirm paired CI840A modules show steady green BUS LED; run full ModuleBus scan to validate 12-module cluster throughput; simulate primary PROFIBUS cable pull to confirm automatic secondary port failover without process value gaps.

FAQ

Q: Can this base operate with only one CI840 communication module inserted? A: It will pass ModuleBus signals to local I/O clusters, but redundant PROFIBUS failover logic is disabled. This removes a critical fault tolerance layer and violates plant documentation for safety-critical dual-bus control architectures. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power remains energized? A: It is not supported. The live ModuleBus differential bus carries high-speed clock signals; unplugging the base creates voltage transients that corrupt bus framing data and trigger cold restarts of both communication modules. Full power lockout and capacitor discharge wait time are mandatory. Q: What warranty coverage applies to stocked units? A: Factory-new original redundant MTUs carry a 12-month OEM warranty covering dual PROFIBUS routing circuits, rotary address switching hardware, mechanical key assemblies and ModuleBus termination traces. Load-tested surplus units come with a 6-month functional warranty. Damage from duplicate bus addressing, ungrounded ESD handling or energized hot-swap removal voids all coverage. Q: What hardware replaces this unit for new plant builds? A: New 800xA deployments use TU860 Ethernet MTUs with native OPC UA and fiber bus compatibility. This hardware remains approved only for one-to-one maintenance replacement of legacy S800 PROFIBUS DP-V1 I/O rack layouts. Q: Will stored PROFIBUS address settings be lost after full cabinet power outage? A: Node ID is set via mechanical rotary switches, so power loss does not alter bus addressing. No firmware or custom logic data stores locally on the base, so no program retention functions exist. Q: What are the most common failure modes for a faulty unit? A: Persistent red BUS fault LED with intact PROFIBUS cabling, one-way bus transmission with zero receive data, loss of automatic redundant port failover, channel impedance shift causing consistent scan timeouts, and incomplete ModuleBus signal routing to remote optical I/O clusters via TB806 adapters.
