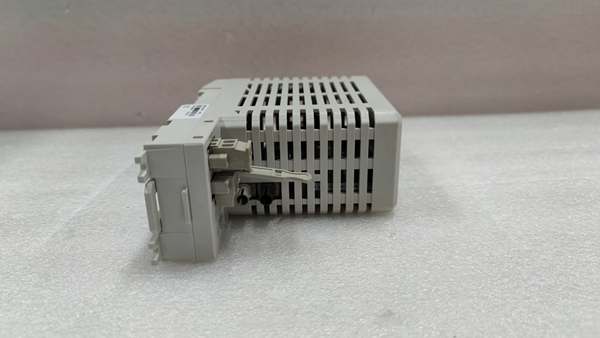

Product Core Brief

• Model: TC514V2 3BSE013281R1
• Brand: ABB
• Series: AF100 fieldbus repeater for Advant Controller 400 / Symphony Plus DCS
• Core Function: Converts electrical AF100 twisted pair bus signals to optical fiber to extend noise-free fieldbus runs
• Product Type: DIN rail mounted AF100 copper-to-fiber bus repeater modem
• Key Specs: 1500VAC galvanic isolation | 2km twisted pair max | 15km multi-mode fiber max
• Note: Full platform end-of-life; factory sealed new units and load-tested surplus available for power and chemical plant legacy cabinet maintenance

Key Technical Specifications

• Supported Bus Protocol: ABB proprietary AF100 differential twisted pair fieldbus
• Electrical Bus Reach: Maximum 2000 meters standard shielded twisted pair
• Optical Bus Reach: Maximum 15000 meters multi-mode fiber optic cable
• Isolation Rating: 1500VAC between copper fieldbus and fiber transceiver circuits
• Auxiliary Supply: 24VDC ±10% SELV, <2W continuous power draw
• Front Diagnostic LEDs: Green POWER, Tx transmit indicator, Rx receive indicator
• Mechanical Mount: 35mm EN 50022 standard DIN rail clip-in housing
• Enclosure Rating: IP20 for interior control cabinet installation
• Operating Temperature: -20°C to +60°C sealed cabinet; storage -40°C to +85°C
• Humidity Limit: 5%–95% RH non-condensing below 55°C
• PCB Coating: Standard industrial conformal coating for mild coastal corrosive environments
• Unit Dimensions: 58mm W × 122mm H × 168mm D
• Net Weight: 0.34kg
• Compliance Standards: IEC 60255, CE certified

Product Introduction

This DIN rail hardware acts as a media converter for fieldbus networks, eliminating EMI interference from motor starters and variable frequency drives that corrupt copper bus signals over long cable runs. Its internal galvanic isolation barrier blocks ground loop voltage transients common across multi-section plant grounding layouts, and real-time Tx/Rx LEDs let technicians verify live bus traffic without diagnostic software.

QA & Testing SOP

1. Incoming Inspection: Cross-reference serial number against ABB OEM spare asset database to filter counterfeit assemblies; inspect copper terminal block, fiber port ferrule and front LED array with a 10x magnifier for scratch damage or thermal discoloration; log serial numbers for full plant traceability records.
2. Live Testing: Mount the unit on a DIN rail test bench paired with an AC460 controller; wire maximum-length twisted pair and fiber load banks; run a continuous 24-hour cycle test including cable fault injection to validate Tx/Rx LED fault triggers and unbroken data scanning.
3. Electrical Testing: Use a Fluke 115 insulation tester to verify ≥10MΩ isolation between copper bus terminals and DIN rail chassis ground; measure PE continuity resistance below 0.5Ω.
4. Firmware/Config Backup: Photograph front LED signal mapping and OEM maximum cable length limits printed on the unit housing for field wiring reference.
5. Final QC & Packaging: Wipe plastic housing with static-dissipative microfiber cloth; cap copper terminals and fiber port with insulating dust covers; seal the unit inside a shielding ESD bag, attach a printed QC tag with full 24-hour bus communication test timestamp, then pack into foam lined transit cartons.

Installation Pitfalls & Guide

❗ Unshielded twisted pair creates constant bus retries: Non-shielded cable runs over 500m near MCC equipment generate persistent communication timeouts; only factory specified shielded twisted pair is approved. ❗ Dirty fiber ferrules block light transmission: Bare finger contact with fiber port optics leaves oil residue that cuts bus throughput by 70% within 90 days of site operation; clean ferrules with OEM alcohol wipes before cabling. ❗ Over-torqued copper terminal screws crack PCB traces: Excessive torque fractures internal signal traces, creating intermittent bus dropout during cabinet temperature cycling. ❗ ESD discharge destroys fiber transceiver ICs: Static contact with PCB communication logic disables both copper and fiber bus ports; replacement requires full fieldbus shutdown lasting multiple hours. ❗ Hot-swap energized bus wiring creates bus parity errors: Removing the unit under live 24VDC power disrupts differential bus clock signals and forces the paired controller to cold restart.

4-step replacement guide

1. Pre-install: Lock out and tag cabinet 24VDC auxiliary power; wait 10 minutes for internal capacitors to fully discharge; don ESD wrist strap; capture photos of twisted pair fieldbus wiring and fiber optic cabling connected to the unit.
2. Removal: Disconnect all copper bus wires and fiber cables one by one; release the DIN rail retention clip, slide the old unit horizontally off the rail without bending fiber ferrules or copper terminal lugs.
3. Install: Clip the new unit firmly onto the original DIN rail position; re-terminate twisted pair bus wiring to OEM torque specs, clean fiber ferrules before plugging into optical ports to match photographed cable routing.
4. Power-on Test: Restore 24VDC auxiliary power; confirm steady green POWER LED and active Tx/Rx traffic indicators; run full bus scan to verify all remote I/O point data uploads to the DCS HMI without packet loss; simulate fiber cable pull to confirm Rx LED extinguishes and triggers plant bus fault alarms.

FAQ

Q: Can this unit operate with only twisted pair copper cabling and no fiber attached? A: It will pass local bus signals to adjacent cabinet hardware, but long-distance remote I/O segments dependent on fiber media will go offline. The optical port is required for extended plant bus layouts exceeding 2km copper cable length. Q: Is hot-swapping supported while cabinet 24VDC auxiliary power remains energized? A: It is not supported. The live differential bus carries high-speed signal frames; unplugging the unit creates voltage transients that corrupt bus data and force the host controller to cold restart, disrupting all plant I/O scanning cycles. Full power lockout and capacitor discharge wait time are mandatory. Q: What warranty coverage applies to stocked units? A: Factory-new original bus repeaters carry a 12-month OEM warranty covering copper signal conversion circuits, fiber transceivers, isolation transformers and front diagnostic LEDs. Load-tested surplus units come with a 6-month functional warranty. Damage from contaminated fiber ferrules, unshielded fieldbus wiring or ungrounded ESD handling voids all coverage. Q: What hardware replaces this unit for new plant DCS builds? A: New ABB 800xA systems use CI867 fiber communication interfaces that integrate media conversion directly on the controller bus, eliminating separate DIN rail repeaters. This hardware remains approved only for one-to-one maintenance replacement of legacy Advant 400 and Symphony Plus bus systems. Q: Will stored bus configuration parameters be lost after full cabinet power outage? A: No on-board non-volatile memory stores custom bus settings; all baud rate and cable length parameters are fixed passive hardware characteristics, so power loss does not alter operational behavior. No manual reconfiguration is required post-replacement beyond matching physical wiring. Q: What are the most common failure modes for a faulty unit? A: Complete loss of Rx fiber signal with undamaged fiber cabling, random bus scan timeouts under full copper load, permanent Tx LED off with active controller bus traffic, degraded isolation allowing cross-talk between separate segments, and zero optical transmission after minor fiber ferrule contamination.
