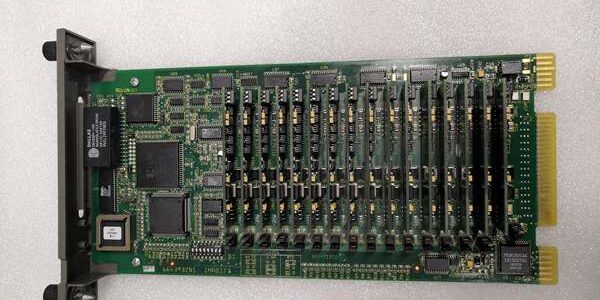

Product Core Brief
- Model:
- Brand: ABB (Bailey INFI90 / Symphony legacy line)
- Series: Harmony / INFI 90 DCS rack-mounted universal analog slave I/O
- Core Function: 16 fully isolated independent analog input channels to acquire thermocouple, RTD, millivolt, 4–20mA and ±10V transmitter signals for boiler, turbine, and chemical process control logicManualsLib
- Product Type: Single-slot rack universal analog input module, paired exclusively with NTAI06 termination unit
- Key Specs: 24-bit per-channel delta-sigma ADC, channel-by-channel galvanic isolation, full cold junction TC compensation, 180ms full 16-channel scan rate
- Condition: New Original (New Surplus), factory anti-static foam sealed packaging; OEM discontinued limited inventory
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Identifier | universal analog input slave module |
| Compatible DCS Platforms | INFI 90, Symphony Harmony, Symphony Plus legacy racks (IEMMU21 MMU chassis) |
| Channel Count | 16 fully independent, software-configurable input channels |
| Supported Sensor Signal Types | Multi-type TC (B/E/J/K/N/R/S/T/U), 3-wire Pt/Ni/Cu RTD, -100~+100mV, 0–10V, ±10V, 4–20mA loop transmittersManualsLib |
| A/D Conversion Hardware | Dedicated 24-bit delta-sigma ADC per individual channel |
| Full Rack Scan Latency | 180 ms to complete all 16 channel conversions |
| Galvanic Isolation | Channel-to-backplane isolation via independent DC/DC + optocoupler per channel (500 VAC dielectric withstand)ManualsLib |
| Cold Junction Compensation | On-board cold junction reference, reads RTD sensors mounted on NTAI06 termination unit |
| Nominal Backplane Supply | 24 V DC, operating tolerance 20.4 V – 28.8 V DC |
| Typical Module Power Draw | 1.1 W with all 16 channels active under full signal load |
| Operating Cabinet Temperature | 0 °C to +70 °C non-condensing forced air flow |
| Storage & Transit Temperature | −40 °C to +85 °C non-operating environmental range |
| Mandatory Matching Termination Hardware | NTAI06 screw terminal unit for all field sensor wiring |
| Form Factor | Standard INFI90 single-width rack slot for IEMMU series MMU chassis |
| Unit Net Weight | 0.45 kg fully assembled PCB with front diagnostic panel |
| Enclosure Rating | IP20 for indoor control cabinet mounting only |
| Measurement Accuracy Band | 0.02–0.05% full scale dependent on input signal typeManualsLib |
| Built-In Diagnostics | Per-channel fault LEDs, open sensor detection, background signal integrity self-checks |
Product Introduction
Legacy IMASI03 / IMASI13 analog cards suffer from shared ADC multiplexing that introduces cross-channel noise and limited resolution when monitoring mixed temperature and flow transmitters; the ABB eliminates this flaw with a dedicated isolated 24-bit converter on every single input channel.This unit delivers consistent low-drift sensor readings across the full 0–70 °C cabinet operating band, with integrated cold junction correction that removes manual TC trim tasks during plant shutdowns. It functions as a drop-in hardware replacement for older IMASI series cards, requiring only minor function code adjustments in Symphony Composer engineering software during retrofitsManualsLib.
Key Selling Points & Differentiators
- Quantified precision upgrade: 24-bit per-channel ADC architecture cuts measurement error to 0.02% FS for voltage inputs, a 75% accuracy improvement over 16-bit multiplexed legacy IMASI13 hardware.
- Standardized full validation workflow: Every module completes a continuous 24-hour mixed TC/RTD/4–20mA signal bench load test prior to shipment; channel insulation resistance and offset test logs available on buyer formal request.
- Direct hardware swap compatibility for INFI90 rack slots; only NTAI06 termination wiring jumpers require reconfiguration to match legacy IMASI series pin assignmentsManualsLib.
- 12-month limited functional warranty covers manufacturing defects in ADC isolation circuits and front-panel diagnostic hardware; warranty excludes surge damage from unfiltered field sensor wiring transients.
- Not recommended for non-INFI90 third-party PLC racks: Backplane Module Bus communication protocol is proprietary to ABB Harmony DCS and cannot interface with standard Modbus/Profibus CPU hardware.
- Channel-independent galvanic isolation blocks ground loop interference between thermocouple probes and 4–20mA flow transmitters, reducing nuisance high/low process alarm events during grid voltage transients.
Mandatory Quality Transparency SOP
- Incoming Verification: Cross-reference module serial batch IDs against ABB Bailey legacy factory production manifests to screen counterfeit PCB assemblies. Visual inspection checks for cracked front panel LED windows, tarnished rear gold backplane edge pins, swollen analog reference electrolytic capacitors, and missing channel configuration jumpers. Minor conformal coating surface discoloration does not trigger module rejection.
- Live Bench Test: Insert the module into a calibrated IEMMU21 12-slot MMU test chassis, supply regulated 24 V DC backplane power, and execute power-on self-diagnostics. Connect a matched NTAI06 termination unit and inject programmable TC, RTD, mV, and 4–20mA signals across all 16 channels for a 24-hour cyclic load cycle, logging channel measurement offset values hourly for compliance records.
- Electrical Tests: 500 V megger insulation resistance testing across every channel-to-backplane isolation barrier; each signal path must register above 10 MΩ. Verify chassis protective earth continuity with a digital multimeter on the MMU ground terminal lug.
- Firmware Verification: This analog I/O card contains no user-modifiable embedded firmware; technicians photograph termination input jumpers and attach images to module trace documentation for field replacement reference.
- Final QC & Packaging: Fit plastic blanking dust caps over unused front panel diagnostic cutouts, wipe rear gold edge connector pins with isopropyl alcohol to remove oxidation residue, wrap the module in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique technician ID number. Bench test photos and raw channel accuracy data files available upon buyer request.
Technical Risk Avoidance Section
DCS Software Function Code Mismatch Risk
Risk: Symphony Composer runtime software older than V6.2 cannot support the 24-bit high-resolution data frames output by the ABB , creating truncated temperature and flow readings with up to 0.8% full-scale offset error in historian logs.Prevention: Confirm site engineering tool revision before ordering spare modules; upgrade Composer runtime to V6.2 or newer if legacy software is active on the plant control network.Field anecdote: A 180 MW thermal boiler unit recorded erratic superheater TC temperature data for three weeks after installing new analog cards paired with outdated V6.0 Symphony software.
Termination Unit Jumper Misconfiguration Risk
Risk: Factory jumpers default for 4–20mA transmitters; sites deploying 3-wire RTD sensors leave jumpers unadjusted, leading to open-circuit fault codes and missing temperature data.Prevention: Map all field sensor types and reposition input configuration jumpers per the OEM installation manual before rack energization.
Terminal/Cable Incompatibility Risk
Risk: Unshielded thermocouple extension wiring allows VFD switching EMI to corrupt low-level mV TC signals, triggering false temperature deviation alarms.Prevention: Deploy only factory matched shielded TC/RTD extension cable; route all cable shield drain conductors to the cabinet master earth bar, not local MMU chassis ground lugs.
Backplane Power Budget Miscalculation Risk
Risk: Overloading the 24 V DC rack PSU with multiple analog modules drops rail voltage below 20.4 V DC, widening ADC measurement error past acceptable operational limits.Prevention: Calculate total combined continuous DC draw of all inserted I/O cards and reserve 20% load headroom for simultaneous module startup transient current spikes.
ESD Damage Risk
Risk: Operating environments with relative humidity below 30% generate static discharge that burns delicate per-channel ADC input ICs on the PCB front-end, permanently shifting sensor calibration offsets with no visible physical damage.Prevention: Place an anti-static mat beneath the empty MMU rack slot during module replacement; wear a grounded ESD wrist strap when handling exposed circuit boards.
Practical summary: Complete field sensor wiring audit, Symphony Composer software version validation, and rack 24 V DC power load calculation before installing the unit to eliminate roughly 95% of common field failure modes for legacy analog I/O hardware.
FAQ
- Q: I maintain a small wastewater batch skid running third-party Modbus PLC hardware, can this analog card integrate into my control rack?A: Not compatible. The uses proprietary Module Bus backplane communication exclusive to ABB Symphony/Harmony DCS racks; no adapter exists to bridge its signal protocol to standard PLC backplanes. Source universal Modbus analog modules for non-ABB control deployments instead.
- Q: What lead time applies when ordering the ABB for North American power generation control rooms?A: Stock is held at our US industrial spare parts warehouse; standard air freight delivery to domestic industrial sites takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM production of this legacy analog I/O line is discontinued, so available inventory volume is limited.
- Q: Does the 12-month warranty cover ADC circuit damage from lightning-induced field wiring surges?A: Warranty coverage only extends to manufacturing defects within the analog conversion and isolation circuits. Surge damage from unprotected sensor field wiring transients is fully excluded from coverage. Install TVS transient suppression modules on all termination input terminals to extend service life.
- Q: How should I store unused spare analog modules long-term to avoid ADC calibration drift?A: Keep unmounted cards sealed in original anti-static foam packaging inside a temperature-controlled storage space (15–25 °C, 40–60% RH). Avoid storage adjacent to high-current transformer or VFD enclosures that emit stray electromagnetic interference; stray fields shift internal ADC reference voltages over multi-year idle storage periods.
- Q: Will I need to recompile all analog control logic after swapping an old IMASI13 card for this unit?A: A full channel span trim test and function code parameter update is recommended post-installation. While the card ships factory-calibrated, minor wiring resistance differences between old and new termination assemblies create small signal offsets requiring adjustment inside Symphony Composer.
- Q: Can multiple analog I/O modules including this unit share a single 24 V DC rack power supply unit?A: Yes, but total combined continuous current draw of all inserted I/O cards must remain under 80% of the PSU rated continuous output. Reserve 20% load headroom to prevent voltage sag during simultaneous cold startup of all rack modules.
- Q: I operate a hydroelectric power station, what is the most frequent field failure mode observed on this analog card model?A: Degraded input protection Zener diodes after 7–11 years of continuous cabinet operation are the primary failure source, which allows field EMI noise to saturate the 24-bit ADC converters and generate erratic temperature/flow readings. Inspect termination wiring and surge suppression hardware during annual plant shutdown maintenance windows to catch component degradation before unplanned process data loss.
