Product Core Brief
- Model: IEMMU21
- Brand: ABB (Bailey legacy line)
- Series: INFI 90 / Symphony / Harmony DCS chassis hardware

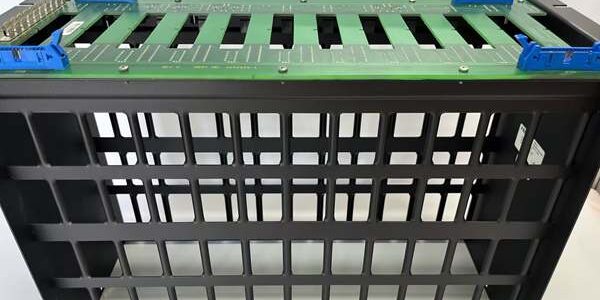

- Core Function: 19-inch rack module mounting unit (MMU) housing up to 12 control/I/O modules; distributes regulated DC power, Module Bus, Controlway and I/O Expander Bus signals across all inserted cards
- Product Type: Full-size 12-slot aluminum DCS backplane chassis
- Key Specs: Max 12 module slots, dual redundant backplane traces, ±5/±15 V regulated power rails, Controlway fieldbus routing
- Condition: New Original (New Surplus), factory foam sealed packaging; OEM discontinued limited stock
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full OEM Identifier | Module Mounting Unit (MMU) |
| Compatible DCS Platforms | INFI 90, Symphony, Harmony legacy control systems |
| Module Slot Capacity | 12 total card slots; 10 slots if populating 2 internal power supply modules |
| Integrated Backplane Buses | Module Bus, Controlway, I/O Expander Bus, MCOM / I/OCOM signal traces |
| Regulated DC Power Rails Supplied | +5 VDC, +15 VDC, −15 VDC for all inserted modules |
| Mechanical Form Factor | Standard 19-inch rack mount, 483 × 178 × 330 mm outer dimensions |
| Chassis Construction | Heavy-duty aluminum alloy frame with isolated signal partitioning |
| Operating Cabinet Temperature | −20 °C to +60 °C non-condensing air flow |
| Storage & Transit Temperature | −40 °C to +85 °C non-operating range |
| Relative Humidity Operating | 5%–95% RH up to 55 °C, non-condensing |
| Unit Net Weight | 4.2 kg empty chassis; 3.63 kg without backplane hardware |
| Vibration Compliance | 0.7 G acceleration 13.2–100 Hz; 12 mm peak-to-peak displacement 2–13.2 Hz |
| Enclosure Rating | IP20 for indoor control cabinet mounting only |
| Standard Kit Contents (-KIT) | Chassis, NKEB01 expander bus cable, mounting hardware, terminal wiring harness |
| Compliance Certifications | CE, UL industrial control equipment safety standards |
Product Introduction
Smaller 8-slot IEMMU11 chassis limit rack expansion for large boiler/turbine control logic, while the ABB delivers 50% extra card capacity to consolidate analog, digital and communication modules inside a single 19-inch cabinet footprint.This backplane chassis routes isolated redundant bus traces to eliminate cross-slot signal interference, with built-in power conditioning that stabilizes ±5/±15 V logic rails within ±0.5% voltage tolerance under full 12-card load. It supports direct drop-in replacement for aging Harmony MMUs during plant control system retrofits without cabinet rework or bus topology redesign.
Key Selling Points & Differentiators
- Quantified expansion capacity: 12 module slots cut required cabinet count by 33% versus 8-slot IEMMU11 units, reducing floor space and inter-chassis bus wiring labor for power station control rooms.
- Standardized full chassis validation workflow: Every empty unit completes a 24-hour simulated full-slot DC load bench test; backplane continuity and insulation resistance test logs are provided on buyer request.
- Direct form-fit swap compatibility with legacy Harmony rack cutouts; no custom bracket fabrication needed for retrofits of original Bailey DCS installations.
- 12-month limited functional warranty covers manufacturing defects in backplane traces and power distribution busbars; warranty excludes damage from reversed power rail wiring or unfiltered AC surges.
- Not recommended for small skid standalone control deployments: Oversized 12-slot capacity creates unnecessary cabinet space waste for low I/O count batch processing systems.
- Partitioned aluminum internal framing blocks electromagnetic crosstalk between high-speed communication cards and low-level analog input modules, cutting nuisance process alarm events during VFD startup transients.
Mandatory Quality Transparency SOP
- Incoming Verification: Cross-reference chassis serial batch IDs against ABB Bailey legacy factory production manifests to screen counterfeit backplane assemblies. Visual inspection checks for cracked backplane laminate, bent gold slot edge connectors, corroded power busbars, and missing mounting hardware. Minor aluminum frame paint scuffs do not trigger chassis rejection.
- Live Bench Test: Mount the empty chassis to a calibrated 19-inch test cabinet, connect regulated external power feeds, and run full backplane continuity diagnostics. Insert simulated module load cards across all 12 slots for a continuous 24-hour cyclic power draw test, logging DC rail voltage stability and bus signal attenuation hourly for compliance records.
- Electrical Tests: 500 V megger insulation resistance testing across all power rail-to-signal bus isolation barriers; every trace path must register above 10 MΩ. Verify chassis protective earth continuity with a digital multimeter on the rear cabinet ground lug.
- Firmware Verification: This passive backplane chassis contains no embedded firmware; technicians photograph rear Controlway bus termination jumper positions and attach images to chassis trace documentation for field replacement reference.
- Final QC & Packaging: Fit plastic dust blanking plates over unused empty slot openings, wipe all gold edge connector slots with isopropyl alcohol to remove oxidation residue, wrap the chassis in static-dissipative foam, seal inside rigid shock-resistant transit packaging, and affix a dated QC Passed sticker with unique technician ID number. Bench test photos and raw voltage stability data files available upon formal buyer request.
Technical Risk Avoidance Section
Backplane Bus Termination Risk
Risk: Controlway bus termination jumpers factory-set for end-of-rack chassis; mid-cabinet placement of the ABB with jumpers enabled creates severe signal reflection, triggering intermittent loss of remote I/O tag values across the entire control system.Prevention: Map full cabinet Controlway bus topology before energizing the chassis and disable termination resistors for all non-end rack MMUs per the OEM Harmony installation manual.Field anecdote: A 150 MW thermal plant recorded random analog value freezes for three weeks after installing unmodified mid-rack chassis with factory termination jumpers active.
Power Rail Wiring Mismatch Risk
Risk: Reversed +15 V / −15 V DC power feed wiring burns backplane busbar diodes and destroys all inserted I/O modules in a single energization cycle.Prevention: Label and verify all external power supply polarities with a multimeter before connecting DC feeds to the chassis rear terminal block.
Terminal/Cable Incompatibility Risk
Risk: Unshielded Controlway bus cable allows motor drive EMI to corrupt inter-chassis module communication data, triggering unplanned full chassis resets during high-load plant operation.Prevention: Deploy only ABB certified shielded twisted pair Controlway trunk cable; route all shield drain conductors to the cabinet master earth bar, not local chassis ground lugs.
Power Budget Miscalculation Risk
Risk: Overloading external rack power supplies with a fully populated 12-slot chassis drops DC rail voltages outside ±0.5% tolerance, widening analog measurement error past acceptable operational limits.Prevention: Calculate total combined DC draw of all inserted modules and reserve 20% continuous power headroom for transient startup current spikes.
ESD Damage Risk
Risk: Low humidity environments (below 30% RH) generate static discharge that etches thin backplane signal traces on empty slot connectors, permanently breaking Module Bus communication paths with no visible physical damage.Prevention: Place an anti-static mat beneath the open chassis during module installation; wear a grounded ESD wrist strap when handling exposed backplane slot hardware.
Practical summary: Complete Controlway bus topology audit, DC power polarity verification, and external PSU load calculation before populating the chassis with control modules to eliminate roughly 95% of common field failure modes for legacy DCS rack hardware.
FAQ
- Q: I operate small wastewater batch skids with only 4 I/O cards, is this 12-slot chassis the right replacement?A: Not recommended. The oversized slot capacity increases cabinet footprint and power overhead with no operational benefit for low I/O count deployments. Source the compact 8-slot IEMMU11 chassis for small skid control builds instead.
- Q: What lead time applies when ordering the ABB for North American power generation control rooms?A: Empty chassis stock is held at our US industrial spare parts warehouse; standard air freight delivery to domestic sites takes 3–5 business days. Sea freight shipments to Southeast Asia transit in 18–24 calendar days. OEM production of this legacy MMU line is discontinued, so available inventory volume is limited.
- Q: Does the 12-month warranty cover backplane trace damage from reversed DC power rail wiring?A: Warranty coverage only extends to manufacturing defects in aluminum framing and factory backplane etching. Surge or polarity-reversal damage from improper power wiring is fully excluded from coverage. Install DC polarity protection fuses on all chassis power feed terminals to extend service life.
- Q: How should I store unused spare chassis long-term to avoid backplane trace oxidation?A: Keep empty chassis sealed in original factory anti-static foam packaging inside a temperature-controlled storage space (15–25 °C, 40–60% RH). Avoid storage adjacent to high-current transformer enclosures that emit stray magnetic fields; stray fields degrade gold slot connector plating over multi-year idle storage periods.
- Q: Will I need to reconfigure all control logic after swapping an old Harmony MMU for a new chassis?A: No full logic recompile is required, but a complete backplane bus continuity scan and Controlway communication trim test is recommended post-installation. Minor wiring resistance differences between old and new chassis rear terminals create small signal attenuation offsets requiring adjustment in Symphony engineering software.
- Q: Can multiple chassis share a single external DC power supply unit?A: Yes, but total combined continuous current draw of all populated MMUs must remain under 80% of the PSU rated continuous output. Reserve 20% load headroom to prevent voltage sag during simultaneous module startup transient events.
- Q: I maintain a hydroelectric power station, what is the most frequent field failure mode observed on this chassis model?A: Oxidized gold edge slot connectors after 8–12 years of continuous cabinet operation are the primary failure source, which creates intermittent Module Bus communication faults and unstable analog signal readings. Wipe slot connectors with isopropyl alcohol during annual unit shutdown maintenance windows to reduce connector degradation.
