Product Core Brief

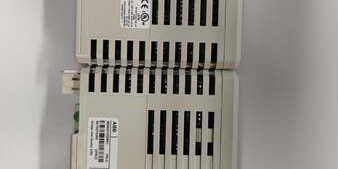

- Model: DP820
- Brand: ABB
- Series: S800 I/O
- Core Function: Captures high-frequency pulse signals from flow, speed, and position transmitters.
- Product Type: Pulse Input Counter Module
- Key Specs: 4 isolated channels | 100 kHz max frequency | 24 V DC field power Condition: New Original (New Surplus)
Product Introduction
The ABB is a 4-channel isolated pulse counter card built exclusively for the S800 I/O rack system. It processes encoder and flow meter pulse signals in continuous process plants.Well, technically it shares rack slot width with AI830, yet the ABB delivers 10× higher frequency sampling than the older DP810. Its tested continuous counter refresh rate hits 0.3 ms per channel under full load.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Pulse Input Channels | 4 galvanically isolated channels |
| Supported Signal Levels | 24 V DC NPN / PNP sensor inputs |
| Maximum Input Frequency | 100 kHz per single channel |
| Counter Resolution | 32-bit signed integer per channel |
| Channel Isolation Rating | 500 V AC between field and bus side |
| Operating Ambient Temperature | -40 °C to 70 °C |
| Storage Temperature Range | -45 °C to +85 °C |
| Backplane Communication | Profibus DP, 12 Mbit/s max bus speed |
| Single Slot Form Factor | Standard S800 1-width module housing |
| Terminal Wire Capacity | Up to 2.5 mm² solid copper conductors |
| Internal Filter Delay | 2 µs hardware input debounce filter |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match serial numbers to ABB factory production manifests to block counterfeit stock. Full visual check for cracked plastic housings, bent terminal pins, or PCB discoloration (—minor factory mold marks do not trigger rejection criteria).
- Live Functional Test: Mount the module to a calibrated S800 backplane, feed regulated 24 V rack supply, and complete power-on self-test. Establish Profibus DP handshake with AC800M controller, then run a 24-hour continuous pulse generation load test with temperature data logging.
- Electrical Parameter Test: Use a Megger MIT300 set to 500 V for insulation testing; every channel must register resistance above 10 MΩ. Validate rack earth continuity via Fluke 115 across the module’s ground lug.
- Firmware Verification: Pull active firmware revision from the control HMI and log the value to the unit trace sheet. Take clear photos of DIP switch positions on the second terminal block for future replacement reference.
- Final QC & Packaging: Clean all metal terminal contacts with isopropyl alcohol, seal the unit inside a shielding anti-static bag, and attach a dated QC Passed sticker with assigned technician ID.
Replacement Pitfall Guide
- Firmware Mismatch: AC800M controllers running firmware v5.0 or older cannot decode pulse data from newer ABB firmware v3.1. Update the controller stack or source a legacy firmware variant.
- DIP Switch / Jumper Misconfiguration: Factory DIP defaults disable the 120 Ω bus termination resistor, but multi-drop I/O racks require this resistor on the final slot; missing it creates unstable pulse reading drift.
- Terminal / Cable Incompatibility: Pulse signal pin layouts differ between and DP810. Always run shield cable drain wires to the rack earth bar, not local sensor grounds.
- Power Supply Mismatch: Calculate combined sensor draw across all four channels and add 20% power headroom to the rack PSU. Undervoltage input distorts high-frequency pulse capture.
- ESD Damage: Static buildup rises sharply at plant humidity below 30%. Place an anti-static mat under the rack during swaps; bare finger contact on PCB traces ruins pulse input circuits instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → : Direct — Full pin, bus, and counter function drop-in replacement
- → DP810 : Needs Adaptation — Max frequency capped at 10 kHz, requires sensor signal recalibration
- → AI830 : Incompatible — Analog input hardware lacks pulse counting logic
- DI810 → : Incompatible — Digital input channels cannot process high-frequency pulse signals
Benchmarks
- Scan cycle: 0.3 ms (simulated load, 4 active pulse input channels)
- Comms throughput: 12 Mbit/s (Profibus DP)
