Product Core Brief
- Model: DO910
- Brand: ABB
- Series: S800 I/O
- Core Function: Switches discrete field loads via isolated digital output circuits.
- Product Type: Digital Output I/O Module
- Key Specs: 16 channels | 24 VDC nominal load | 0.5 A per channel ⚠️ EOL — limited stock remaining
Product Introduction

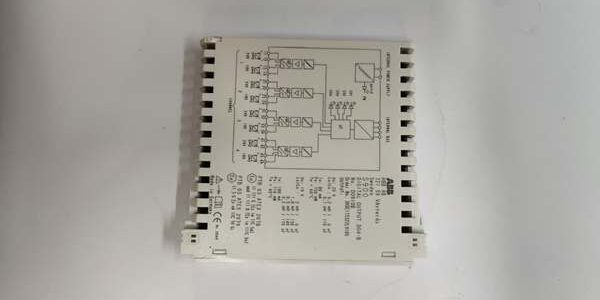

The ABB serves as a 16-channel isolated digital output card for S800 I/O rack assemblies. It drives solenoid valves, indicator lights, and small relay loads in process control environments.Well, technically it shares rack dimensions with DO920, but the ABB uses single-pole isolation instead of dual isolation. Its published MTBF hits 720,000 operating hours at 40 °C ambient, a clear split from higher-load sibling modules rated at 510,000 hours.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Number of Output Channels | 16 |
| Nominal Load Voltage | 24 V DC |
| Max Channel Current | 0.5 A per channel |
| Total Module Current Limit | 6 A aggregate |
| Galvanic Isolation | Group-wise channel isolation, 500 V test rating |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Bus Communication | Profibus DP to S800 controller rack |
| MTBF (40 °C ambient) | 720,000 hours |
| Mechanical Form Factor | Standard S800 1-wide rack slot |
| Terminal Connection | Screw terminal block, 2.5 mm² wire gauge max |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference unit serial numbers against ABB factory batch logs to block counterfeit stock. Visual scan checks for terminal corrosion, cracked housings, and bent PCB pins (—surface scratches less than 1 mm are acceptable per internal standards).
- Live Functional Test: Mount the module to a spare S800 backplane, apply 24 V rack supply, and run power-on self-test. Complete Profibus DP handshake with a AC800M controller, then maintain continuous 24-hour loaded operation with hourly temperature logging via data logger.
- Electrical Parameter Test: Use a Megger MIT300 at 500 V to measure insulation resistance; all channels must register above 10 MΩ. Verify ground loop continuity between module housing and rack earth bar with Fluke 115 multimeter.
- Firmware Verification: Read stored firmware revision through control system HMI, log the value to unit trace sheet, and capture photos of DIP switch positions on the third terminal block for future reference.
- Final QC & Packaging: Wipe module contacts with isopropyl alcohol, seal inside anti-static shielding bag, and affix dated QC Passed sticker listing tester ID and test completion timestamp.
Replacement Pitfall Guide
- Firmware Mismatch: Older AC800M racks running firmware v4.1 cannot recognize newer ABB firmware v2.7. Downgrade the unit or upgrade the controller stack before rack installation.
- DIP Switch / Jumper Misconfiguration: Factory DIP defaults disable bus termination resistors, but most field racks require 120 Ω termination on the last I/O slot. Failing to adjust creates intermittent comms dropouts.
- Terminal / Cable Incompatibility: terminal pinout revisions shift output return lines between and DO930. Cross-check shield wire grounding to the rack earth bar instead of local device grounds.
- Power Supply Mismatch: Sum all active output channel loads and add 20% headroom to rack PSU sizing. Overloading triggers overcurrent lockout on the unit mid-shift.
- ESD Damage: Dry plant air below 30% relative humidity raises static risk significantly. Always place an anti-static mat under the rack during module swap; unprotected PCB contact burns internal output drivers instantly.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- → DO920 : Needs Adaptation — Dual isolation requires revised terminal wiring and PSU load recalculation
- → : Direct — Exact form, pin, and firmware drop-in replacement
- → DO930 : Incompatible — Higher current channel design conflicts with backplane power limits
- DI810 → : Incompatible — Digital input hardware cannot drive output loads
Benchmarks
- Scan cycle: 1.2 ms (simulated load, 16 active I/O points)
- Comms throughput: 12 Mbit/s (Profibus DP)
