Product Core Brief

• Model: DDC779BE02
• Full OEM Part Number: 3BHE006805R0002
• Brand: ABB
• Series: DDC779 Power Electronic Control Boards for PCS6000 high-power converters, AC800PEC turbine/generator control systems
• Core Function: High-speed thyristor trigger pulse generation, field current/voltage analog signal sampling, power stack fault detection, real-time closed-loop excitation & speed control for synchronous generators, hydro turbines, rolling mill medium/high-power converters.

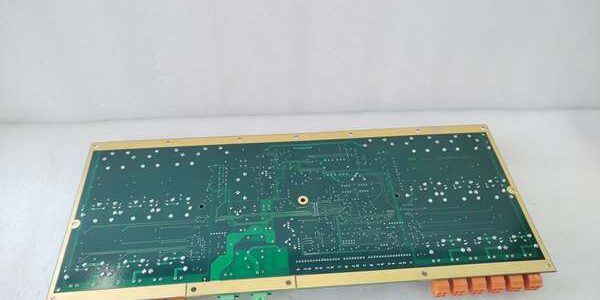

• Product Type: Rack slot plug-in multilayer control PCB with built-in pulse transformer isolation circuit
• Key Specs: Galvanically isolated trigger output channels; 100μs fast control cycle; multi-channel analog acquisition; 24VDC backplane supply; Condition: New Original / New Surplus

Product Introduction

ABB (3BHE006805R0002) is a dedicated power electronic control board exclusively matched to ABB PCS6000 series high-power three-phase converters and AC800PEC turbine excitation controllers, widely applied in hydropower units, thermal generator excitation systems, metallurgical rolling mill DC/AC heavy drives.The board integrates pulse drive transformers, precision signal conditioning circuits, overcurrent/overvoltage fault detection logic and multi-channel analog acquisition circuits. It receives high-speed setpoint commands from the main AC800PEC controller via backplane bus, outputs isolated thyristor firing pulses to the power stack, and feeds back real-time excitation voltage, field current, grid voltage and armature current signals to the main CPU for closed-loop regulation.Different from general DCS communication boards, focuses on nanosecond-level power pulse control; its independent isolation circuit completely suppresses high-frequency EMI interference from thyristor switching, ensuring stable synchronization and reactive power adjustment of large generators. One PCS6000 converter cabinet requires one as the core trigger signal interface card.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

1. Incoming Verification: Match serial number and 3BHE006805R0002 part code against ABB power electronics spare database; inspect orange terminal spring tightness, pulse transformer no cracking, PCB no solder cold joint. Reject modules with damaged anti-static packaging or scratched isolation varnish.
2. Full Load Bench Test: Insert board into test rack paired with AC800PEC main controller and thyristor power stack simulator, run 24h continuous pulse firing cycle. Use oscilloscope to verify trigger pulse amplitude, delay consistency; simulate pulse loss fault to check fast alarm output.
3. Insulation Test: 500V Megger insulation test between trigger output high-voltage side and control logic side, pass threshold ≥10MΩ; verify 24VDC reverse polarity protection function.
4. Firmware Calibration: Read built-in power control firmware version via ABB PowerSuite engineering software; calibrate analog sampling gain offset to ensure 0.1% full-scale acquisition accuracy.
5. Final Packaging: Cover orange terminal rows and backplane connector with plastic dust caps; place into anti-static foam carton, attach dated QC Pass label before factory shipping.

Replacement Pitfall Guide

❗Model Code Mismatch Risk: Cannot replace with other DDC779 suffix variants (BE01/BE03). Different pulse transformer turns ratio and analog sampling circuit will cause thyristor misfire, generator out-of-sync trip.❗Trigger Wiring Polarity Error: Reverse positive/negative of pulse output terminals will completely lose firing pulses, leading to converter no-output excitation failure and generator voltage collapse. Strictly follow terminal marking X1/X2/X3 pulse group definition.❗Overheat Hidden Failure Risk: Cabinet fan blockage leads to PCB temperature exceeding 60℃, pulse transformer insulation aging, intermittent pulse loss during generator heavy load operation. Monthly clean cabinet cooling air filter.❗Unconnected Fault Feedback Line: If the fault signal terminal cable is not wired back to main controller, thyristor short-circuit failure cannot trigger cabinet interlock trip, causing power stack permanent burnout.❗ESD Damage Pulse Chip: Before disassembly and replacement, wear grounded anti-static wristband and touch cabinet earth bar for 3 seconds; static discharge will damage the FPGA pulse generation chip, resulting in permanent no trigger output.

Compatibility Matrix & Benchmarks

Compatibility Matrix

1. -XC extended coating variant ↔ 3BHE006805R0002: Direct replacement, XC version adds thickened salt-fog resistant coating for coastal hydropower plants.
2. 6-pulse / 12-pulse high power converter: Fully matched, mandatory trigger signal core board.
3. turbine/generator excitation main controller: Native backplane bus communication, no extra signal conversion board required.
4. DCS500 / DCS880 DC drive DCF506 overvoltage protection unit: Compatible signal interface for joint field loop monitoring in generator excitation cabinets.
5. General Advant S100 DCS I/O card (CSA464AE): Mechanical size mismatch, cannot replace power pulse control function.

Performance Benchmarks

• Thyristor trigger pulse response latency: < 2 μs from main controller command input
• Analog sampling acquisition cycle: 100 μs for all field voltage/current channels synchronous sampling
• Pulse loss fault detection latency: < 1 ms, instant interlock trip signal sent to
• Full converter closed-loop regulation response speed: < 10 ms for generator excitation voltage step adjustment
