Product Core Brief
- Model: DDC779CE102
- Full OEM Order Code: 3BHE027859R0102
- Brand: ABB
- Series: DDC779 Power Electronic Control Boards for PCS6000 high-power converters, AC800PEC excitation control systems
- Core Function: High-speed isolated thyristor firing pulse generation, multi-channel grid/excitation voltage & field current analog sampling, full power stack fault detection, closed-loop voltage/reactive power regulation for synchronous generator excitation, hydro turbine converters, heavy metallurgical rolling mill drives.

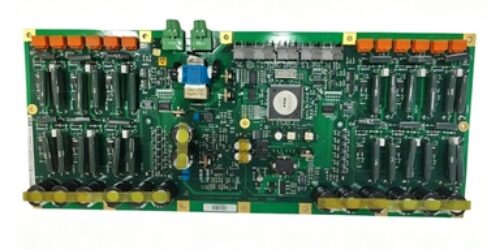

- Product Type: Rack slot plug-in multilayer control PCB with integrated pulse transformers and signal conditioning circuits
- Key Specs: 2500 V pulse transformer isolation; minimum 80 μs fast control cycle; multi-group 6-pulse thyristor trigger outputs; multi-channel isolated analog acquisition; 24 V DC backplane powered; EOL limited original surplus stock
Product Introduction
ABB (3BHE027859R0102) is an upgraded generation trigger control board of DDC779 series, fully compatible with ABB PCS6000 medium/high-power three-phase converters and AC800PEC turbine/generator excitation controllers, widely deployed in thermal power generator excitation cabinets, hydropower unit excitation systems, steel rolling mill high-power AC/DC converters.
Compared with the earlier DDC779BE02 (3BHE006805R0002):
- Optimized FPGA pulse timing logic, shortened closed-loop scan cycle from 100 μs down to 80 μs, faster generator voltage adjustment response;
- Upgraded analog sampling precision, full-scale error reduced to ±0.08%;
- Expanded fault diagnosis logic, adding thyristor leakage current, pulse amplitude abnormal monitoring;
- Enhanced anti-EMI filter circuit, stronger anti-interference capability in high-thyristor-switching noise environments.
The board receives speed, voltage and reactive power setpoints from the upper AC800PEC main controller via backplane bus, outputs galvanically isolated firing pulses to six-pulse thyristor power stacks, synchronously samples grid voltage, armature current, excitation voltage and field current, and feeds real-time feedback to the main CPU for closed-loop excitation regulation. It integrates comprehensive fault detection functions: pulse loss, thyristor open/short circuit, over-temperature, overvoltage, overcurrent, and sends interlock trip signals to the main controller within milliseconds to protect power semiconductors from permanent burnout.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Order Code | 3BHE027859R0102 () |
| Matching Control System | PCS6000 high-power excitation converter, AC800PEC generator/turbine excitation master controller |
| Operating Supply | 24 V DC backplane power (-20% ~ +20%), reverse polarity protected |
| Typical Operating Current | 350 mA under full pulse & analog load |
| Maximum Power Dissipation | 8.2 W |
| Fast Closed-Loop Control Cycle | Minimum 80 μs synchronous sampling & pulse update |
| Trigger Circuit Isolation | Built-in pulse transformer, 2500 V AC 1min isolation between control logic and high-voltage thyristor side |
| Analog Input Channels | Multi-channel isolated AI for grid voltage, field voltage, field current, armature current sampling |
| Trigger Output Groups | Multi-group isolated firing pulses for standard 6-pulse thyristor bridge topology |
| Onboard Fault Diagnostics | Pulse loss, thyristor open/short, over-temperature, overvoltage, overcurrent, wiring break detection |
| PCB Protection Coating | ISA-S71.04 G3 anti-corrosion conformal coating standard configuration |
| Continuous Operating Ambient Temp | 0 ℃ ~ +60 ℃; derate 15% above 50 ℃ full load |
| Storage Temperature Range | -40 ℃ ~ +70 ℃, 5–95% RH non-condensing |
| Installation Method | Standard cabinet rack slot plug-in, IP20 cabinet internal use only |
| Overall Dimensions | W220 mm × H110 mm × D30 mm |
| Net Unit Weight | 0.41 kg |
| Compliance Certifications | CE, UL508, ATEX II 3G Zone 2, DNV marine power plant certification |
Quality Control Process (Engineer’s Perspective)
- Incoming Part Verification: Cross-check serial number and full part code 3BHE027859R0102 against ABB power electronics spare database; inspect terminal spring tightness, pulse transformer insulation integrity, PCB solder joints free of cold soldering and cracking. Reject modules with damaged anti-static packaging or scratched conformal coating.
- 24h Full Load Aging Bench Test: Insert the board into PCS6000 test rack with AC800PEC master controller and thyristor power stack simulator, continuous cyclic pulse firing test. Oscilloscope calibration of trigger pulse amplitude, phase delay consistency; simulate all fault modes to verify fast interlock trip signal output.
- Insulation Withstand Test: 500 V Megger insulation test between high-voltage pulse output side and low-voltage control logic side, pass threshold ≥10 MΩ; verify 24 V DC reverse polarity protection circuit function.
- Firmware Calibration & Recording: Read built-in power control firmware version via ABB PowerSuite engineering software; calibrate analog sampling gain and offset to guarantee ±0.08% full-scale measurement accuracy.
- Final Packaging & Inspection: Install plastic dust caps for terminal rows and backplane edge connector; place module into anti-static foam carton, attach dated QC Pass label before factory shipping.
Replacement Pitfall Guide
❗Model Suffix Mismatch Risk: Cannot directly replace with DDC779BE02 without re-parameterization; pulse timing resolution and fault register definitions differ, will cause generator voltage oscillation and false excitation trip during heavy load switching.❗Trigger Pulse Wiring Polarity Error: Reverse positive/negative terminals of firing pulse output will lead to complete pulse loss, converter zero excitation output and generator terminal voltage collapse; strictly follow X1/X2/X3 pulse group marking definitions on PCB silkscreen.❗Cabinet Cooling Failure Hidden Danger: Blocked cabinet air filter leads to PCB operating temperature exceeding 60 ℃, pulse transformer insulation aging, intermittent pulse dropout under generator full-load operation; clean cooling filter monthly.❗Unconnected Fault Feedback Signal Cable: If fault signal terminals are not wired back to master controller, thyristor short-circuit faults cannot trigger cabinet interlock trip, resulting in irreversible burnout of expensive power thyristor stacks.❗ESD Damage High-Speed FPGA Chip: Wear grounded anti-static wristband and touch cabinet earth bar for 3 seconds before disassembly/replacement; static discharge will permanently damage the pulse generation FPGA, causing complete loss of trigger output function.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- -XC extended temperature variant ↔ 3BHE027859R0102: Direct plug-and-play replacement; XC version adds thickened salt-fog resistant coating for coastal hydropower and offshore power stations.
- 6-pulse / 12-pulse high-power excitation converter: Fully matched core trigger interface board, mandatory configuration for excitation cabinets.
- turbine/generator excitation main controller: Native backplane bus communication, no additional signal conversion boards required.
- DDC779BE02 (3BHE006805R0002): Hardware interchangeable, but PowerSuite parameter re-calibration is mandatory after replacement.
- General Advant S100 DCS analog I/O board CSA464AE: Mechanical rack size mismatch, cannot realize thyristor high-speed pulse control function.
Performance Benchmarks
- Thyristor trigger pulse response latency: < 1.8 μs from master controller setpoint command input
- Multi-channel analog synchronous sampling cycle: 80 μs for all excitation voltage/current measurement channels
- Pulse loss fault detection & interlock latency: < 0.8 ms, instant trip signal sent to
- Generator excitation voltage step adjustment response speed: < 8 ms for full-scale voltage step change
