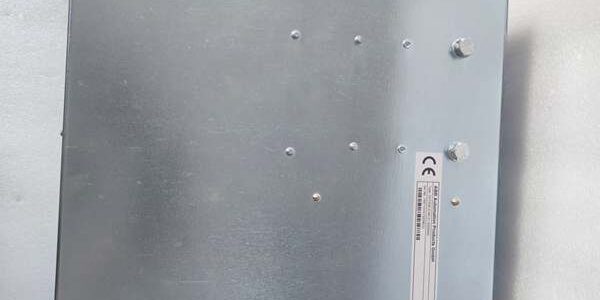

Product Introduction
ABB is a mandatory matching overvoltage protection unit for ABB DCS500B, DCS600, DCS880 DC drive systems equipped with external field supply converters (DCF500 / DCF600 series).When DC motor excitation windings are de-energized, the large inductance will produce dangerous reverse high voltage spikes that can puncture thyristor power modules and control boards. absorbs this surge energy in milliseconds to clamp voltage within safe limits.This model is rated for 140A field current, matching medium-power DC motor excitation loops in metal rolling mills, paper machines, extruders and mining hoists. Compared to smaller -0520-51 (52A), it supports larger field winding inductive loads and heavy transient switching surgesManualsLib.It connects in parallel with motor field terminals F+ / F- via dedicated X11/X12 power terminals, and provides digital fault feedback signals to the main drive controller for HMI alarm reportingManualsLib.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Model Code | |
| Rated Continuous Field Current | 140 A DC |
| Matching Drive Series | DCS500B, DCS600, DCS880 (2-Q / 4-Q thyristor converters) |
| Working Field Voltage Range | 110–500 V DC single-phase / three-phase field supply |
| Surge Absorption Circuit | High-power metal oxide varistor + RC snubber composite circuit |
| Surge Clamping Voltage | < 750 V peak (suppress field reverse kick voltage) |
| Cooling Method | Internal axial forced air fan cooling |
| Mechanical Frame Size | C1 compact frame |
| Overall Dimensions (W×H×D) | 342 × 145 × 135 mm |
| Net Unit Weight | ~8 kgManualsLib |
| Power Terminals | X11 (F+), X12 (F-), M8 bolt terminals |
| Signal Terminals | X4 fault monitoring digital output to drive control card |
| Galvanic Isolation | 1500 V AC 1min between power surge circuit and fault signal logic |
| Operating Ambient Temp | 0 °C ~ +55 °C; derate 15% above 50°C full load |
| Storage Temperature | -40 °C ~ +70 °C, 5–95% RH non-condensing |
| Enclosure Protection | IP00 internal cabinet installation |
| PCB Coating | ISA-S71.04 G3 anti-corrosion conformal coating |
| Certifications | CE, UL508, RoHS compliant |
Quality Control Process (Engineer’s Perspective)
- Incoming Inspection: Match serial numbers against ABB DCS drive spare database; inspect M8 power terminals for thread damage, fan rotation smoothness, no varistor cracking. Reject units with damaged anti-static packaging.
- Surge Load Bench Test: Connect to 140A inductive load simulator, perform 10,000 field switch-on/off cycle aging test for 24h continuous run. Record clamping voltage waveform with oscilloscope to verify surge suppression performance.
- Electrical Isolation Test: 500V Megger insulation test between power surge circuit and fault signal wiring, pass threshold ≥10MΩ; test fan power supply reverse polarity protection.
- Fault Signal Verification: Simulate internal varistor over-temperature failure, confirm X4 digital fault signal output triggers drive controller alarm correctly.
- Final Packaging: Cover X11/X12 power terminals with insulating dust caps; pack with anti-static foam, attach QC pass label before factory carton shipping.
Replacement Pitfall Guide
❗Current Rating Mismatch Risk: Creplace with smaller -0520-51. 52A model cannot absorb surge from 140A field winding loads, will burn varistor and cause drive power module breakdown.❗Wiring Polarity Error: F+ / F- terminal reverse connection will fail surge absorption, high voltage spikes directly damage field supply converter DCF500B. Strictly follow X11=F+, X12=F- marking.❗Fan Failure Hidden Danger: Blocked fan filter or dead cooling fan leads to overheating varistor thermal runaway, triggering drive field supply short-circuit protection during production operation. Clean fan filter quarterly.❗Missing Fault Signal Wiring: If X4 fault feedback cable is not connected to the main drive control board, overvoltage unit failure cannot be alerted on HMI, leading to unplanned downtime.❗ESD Damage Control Board: Before opening the unit cabinet for inspection, wear grounded anti-static wristband and touch cabinet earth bar for 3s; static discharge will damage internal temperature monitoring PCB.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 140-51-XC: Direct replacement, XC version adds enhanced salt-fog conformal coating for coastal power & metallurgy plants.
- -05(52A) ↔ : Non-interchangeable, insufficient surge absorption capacity for 140A field circuits.
- DCS880-S01 (2-quadrant) / DCS880-S02 (4-quadrant) DC converter: Fully compatible, mandatory matching protection uniteero.
- DCF500B / DCF600 external field supply converters: Direct parallel connection to field winding F+ / F- terminals.
- DCS500 legacy DC drives without : Cannot omit this unit, field surge will repeatedly damage thyristor power stacks.
Performance Benchmarks
- Surge energy absorption capacity: Max 1200J single field switching transient
- Surge clamping response latency: < 8μs from voltage spike occurrence
- Over-temperature fault signal delay: < 100ms when internal varistor exceeds 120°C
- Continuous full-load operating noise: ≤72dB fan running at rated 140A field current
