Product Core Brief

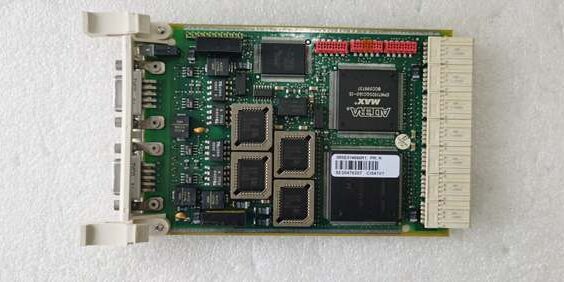

• Model: CI541V1, OEM Article Code 3BSE014666R1
• Brand: ABB
• Series: Advant OCS / MasterPiece / AC450 Legacy DCS Controllers
• Core Function: Plug-in Profibus DP master submodule for CEX communication expansion bus; offloads full Profibus protocol stack to connect S800 remote I/O, drives and third-party DP field devices.
• Product Type: Controller expansion Profibus DP communication submodule
• Key Specs: DP-V0/DP-V1 master mode | Max 12 Mbit/s baud rate | CEX bus interface | Single group galvanic isolationNote: Obsolete EOL OEM spare, limited new surplus & refurbished stock available; requires CI541 carrier board for rack mounting, no standalone DIN rail installation.

Key Technical Specifications

• Supply power: Derived from CI541 carrier CEX bus, typical power dissipation 6.5 W
• Profibus protocol compliance: DP-V0 cyclic real-time exchange, DP-V1 acyclic parameter/device diagnostic access
• Supported baud rates: 9.6 kbit/s ~ 12 Mbit/s auto-detect or fixed software configuration
• Fieldbus connector: M12 10-pin circular connector for Profibus DP trunk cable
• Max slave node capacity: Up to 124 Profibus DP slaves per submodule
• Bus topology: Linear standard; dual redundant bus wiring supported via dual CI541V1 pairing
• Galvanic isolation: 1500 VAC dielectric separation between CEX controller side and Profibus field wiring
• Onboard diagnostics: Dual status LEDs for bus RUN, FAULT, slave timeout and short-circuit detection
• PCB coating: ISA-S71.04 G3 conformal coating for mild corrosive control room atmospheres
• Mechanical form: Compact plug-in submodule, inserts vertically into CI541 carrier slot; non hot-swap rated
• Operating ambient: 0 °C to +60 °C continuous duty; linear communication latency drift above 55 °C
• Storage range: -40 °C to +70 °C, non-condensing 5–95 % relative humidity
• Physical dimensions: 20 mm W × 170 mm H × 101 mm D
• Net weight: 0.16 kg

Product Introduction

This dedicated fieldbus accelerator submodule is built exclusively for Advant AC450 and MasterPiece legacy DCS controllers via the CEX expansion bus. It relieves the main CPU of heavy Profibus stack processing load to avoid slowing critical closed-loop control logic cycles.Galvanic isolation blocks ground-loop noise from remote field cabinets and variable frequency drives, eliminating cyclic data corruption and intermittent slave dropouts on long DP trunk runs. DP-V1 support enables direct HART device diagnostic retrieval via compatible S800 I/O modules without separate multiplexer hardware.

QA & Testing SOP

1. Incoming Inspection: Cross-reference serial numbers and 3BSE part code against ABB Advant legacy spare databases. Inspect M12 connector pin integrity, conformal coating for delamination, dual LED functionality and intact factory anti-static packaging to filter counterfeit stock.
2. Live Testing: Insert the submodule into a CI541 carrier mounted in AC450 test rack paired with MasterPiece engineering simulator. Run continuous 24-hour cyclic DP communication testing with mixed S800 I/O and drive slave nodes while logging stable CEX bus supply via Fluke 115 multimeter. Simulate bus short-circuits, trunk cable disconnection and slave timeout to validate fault LED flag timing.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between CEX controller logic and Profibus field circuit; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no random slave communication loss.
4. Firmware/Config Backup: Record factory default Profibus baud rate and slave address mapping preset values via MasterPiece software. Capture high-resolution photos of M12 pinout and carrier insertion orientation for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust cap over M12 Profibus connector. Place the submodule inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide

❗Firmware Rev Mismatch Risk: AC450 controller firmware older than v4.6.3 lacks CEX bus register mapping for DP-V1 acyclic diagnostic logic. Post-replacement, the DCS will fail to read smart device HART data and throw intermittent PROFIBUS COMM LOSS alarms. Remediation: Flash matching firmware revision to the Advant CPU before inserting the submodule into the carrier.❗Non Hot-Swap Hardware Warning: The submodule and CI541 carrier share active CEX backplane power. Inserting/removing while rack power remains live generates voltage transients that damage CPU CEX interface circuits and crash the entire DCS scan table. Full rack lockout/tagout of auxiliary power is mandatory for replacement.❗M12 Connector Contamination Risk: Dust, oil or moisture inside the circular M12 connector creates intermittent bus resistance, triggering random slave offline faults. Use compressed dry air to blow out debris before cabling; fit dust caps to unused trunk ports at all times.❗Carrier Slot Compatibility Risk: The CI541V1 only fits original CI541 carrier boards; physical keying prevents insertion into incompatible CI540 / CI542 carrier variants, which use different CEX bus pin assignments.❗ESD Dangers: Ungrounded handling exposes Profibus transceiver and CEX bus logic traces to static discharge from dry control room air. Field records show unprotected handling burns fieldbus communication circuits; full process unit downtime labor cost exceeds $2,080. Remediation: Place anti-static mat under the Advant rack, wear grounded wrist strap, touch bare rack chassis ground for 3 seconds before handling the submodule.

4-step replacement guide

1. Pre-install: Execute full rack lockout/tagout of 24VDC auxiliary power. Photograph M12 Profibus trunk wiring layout and slave address mapping table from the old submodule; record active DP baud rate configuration in MasterPiece.
2. Removal: Unlatch carrier slot retention clip, slide the old submodule vertically out of the carrier, disconnect M12 Profibus trunk cable and store the unit in static-safe sleeve.
3. Install: Align mechanical key tabs of the new unit with the carrier slot, fully insert the submodule and lock the retention clip; reconnect M12 Profibus trunk cable to matching pin positions.
4. Power-on Test: Restore rack 24VDC auxiliary power first; verify front bus RUN LED illuminates steady green, scan all DP slave nodes to confirm full cyclic data exchange before enabling automatic closed-loop DCS control.

FAQ

Q: Can this Profibus submodule be hot-swapped while the Advant AC450 rack remains powered?A: No. The CEX expansion bus stays energized with rack auxiliary power active. Live extraction creates destructive voltage transients that corrupt controller memory and permanently damage carrier/CPU communication hardware. Complete rack power isolation is required for replacement.Q: Does this legacy submodule carry original OEM factory warranty when purchased as new surplus?A: ABB original factory warranty expired at official product end-of-life. All surplus and refurbished inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.Q: Can CI810 serve as a direct functional replacement for the submodule?A: Profibus DP master function match only, mechanical and system platform incompatible. CI810 is a S800 rack integrated communication module for modern AC800M 800xA DCS; it cannot plug into Advant CEX bus carriers and requires full system architecture rework.Q: What minimum AC450 CPU firmware version enables full DP-V1 acyclic diagnostic support?A: Advant controller firmware v4.6.3 or newer. Older firmware only supports DP-V0 cyclic data exchange, with no access to smart transmitter/valve positioner diagnostic parameters over Profibus.Q: Will Profibus baud rate and slave address mapping settings persist after submodule replacement?A: All bus configuration data resides in the CPU non-volatile memory, not stored on the submodule itself. No reconfiguration of baud rate or slave lists is required post-swap, only a full bus scan verification.Q: Is the submodule compatible with modern AC800M / System 800xA controllers?A: No. It uses the proprietary Advant CEX expansion bus unique to legacy /MasterPiece hardware, with zero electrical and mechanical compatibility with AC800M CEX/CI8xx communication rack architecture.Q: Can Profibus PA field devices be connected directly to this module’s M12 port?A: No. CI541V1 only implements Profibus DP electrical physical layer. PA instrumentation requires an external DP/PA segment coupler installed on the DP trunk line before connecting PA field devices.
