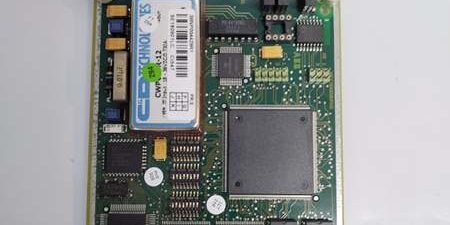

Product Core Brief

• Model: CI547, OEM Article Code 3BNP004429R1
• Brand: ABB Advant Master Legacy DCS
• Series: MasterBus 300 Backbus for PM150 Central Controller
• Core Function: Independent slave processor communication submodule offloading MasterBus300 backbone data exchange from PM150 main CPU; handles cyclic peer-to-peer rack communication to reduce main scan cycle load.
• Product Type: Rack slide-in backbus slave communication submodule
• Key Specs: Dedicated slave processing core | MasterBus300 dual-channel differential bus | Isolated backplane interfaceNote: Fully obsolete EOL OEM spare, limited new surplus & refurbished stock available; only compatible with Advant Master PM150 controller racks, no standalone DIN rail mounting.

Key Technical Specifications

• Power supply: Derived from Advant master rack backplane, typical power dissipation 5 W
• Backbus protocol: MasterBus 300 differential serial backbone, fixed baud rate optimized for inter-rack DCS data exchange
• Onboard hardware: Independent slave CPU + 2K byte process image memory for buffered cyclic data
• Bus interface: 9-pin D-SUB front connector for MasterBus300 trunk cable daisy-chain topology
• Max inter-rack distance: 12 meters with shielded twisted pair ribbon bus cable
• Galvanic isolation: 1500 VAC dielectric separation between field backbone bus and controller backplane logic
• Diagnostics: Multi-color front status LEDs for PWR, BUS RUN, SLAVE COMM, HARDWARE FAULT
• PCB coating: ISA-S71.04 G3 grade conformal coating for mild corrosive power plant control room atmospheres
• Mechanical form: Standard Advant Master full-size slide-in rack card, non hot-swap rated
• Operating ambient: 0 °C to +60 °C continuous duty; linear communication latency drift above 55 °C
• Storage range: -40 °C to +85 °C, non-condensing 5–95 % relative humidity
• Physical dimensions: 20 mm W × 170 mm H × 101 mm D
• Net weight: 0.16 kg
• Certifications: CE, UL industrial control compliance

Product Introduction

This dedicated backbus offload submodule is built exclusively for legacy Advant Master PM150 DCS racks running MasterBus300 inter-rack communication. It relieves the central PM150 CPU of heavy backbone data buffering and cyclic exchange workload to prevent slowdown of safety-critical closed-loop control scan cycles.Galvanic isolation blocks ground-loop noise from remote I/O cabinets and large variable frequency drive loads, eliminating intermittent inter-rack data dropouts on long MasterBus trunk runs. The independent slave processor maintains buffered process image data during brief backplane voltage fluctuations to avoid full rack scan table corruption.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Cross-reference serial numbers and 3BNP part code against ABB Advant Master legacy spare databases. Inspect D-SUB connector pin integrity, conformal coating delamination, full LED bank functionality and intact factory anti-static packaging to filter counterfeit stock.
2. Live Testing: Seat the module in an Advant Master test rack paired with CPU simulator. Run continuous 24-hour cyclic MasterBus300 communication testing across multi-rack simulated topology while logging stable rack backplane supply via Fluke 115 multimeter. Simulate trunk cable disconnection, bus short-circuit and backplane undervoltage to validate fault LED flag timing and buffered data retention behavior.
3. Electrical Testing: Use a 500V Megger to measure insulation resistance between MasterBus field backbone circuit and rack controller logic; pass threshold set at ≥10 MΩ. Inject 50Hz differential ground-loop noise to confirm no random inter-rack communication loss or process value freezing.
4. Firmware/Config Backup: Record factory default MasterBus baud rate and rack node addressing preset values via Advant Master engineering software. Capture high-resolution photos of D-SUB pinout and rack insertion orientation for field commissioning reference.
5. Final QC & Packaging: Fit plastic dust cap over front D-SUB MasterBus connector. Place the submodule inside foam-lined anti-static shielding bag, affix a dated QC pass label before sealing in original factory carton.

Installation Pitfalls & Guide (Engineer to Engineer)

❗Firmware Rev Mismatch Risk: controller firmware older than v3.8.2 lacks backplane register mapping for independent slave buffering logic. Post-replacement, the DCS will show slowed control scan cycles and intermittent MASTERBUS COMM LOSS alarms. Remediation: Flash matching firmware revision to the CPU before rack insertion.❗Non Hot-Swap Hardware Warning: The module shares energized MasterBus backplane and rack supply bus. Inserting/removing while rack auxiliary power remains live generates destructive voltage transients that damage the CPU’s backbus interface and crash all rack control logic. Full rack lockout/tagout of 24VDC auxiliary power is mandatory for replacement.❗D-SUB Connector Contamination Risk: Dust, oil or moisture inside the 9-pin D-SUB connector creates variable bus loop resistance, triggering random inter-rack slave offline faults. Use compressed dry air to blow out debris before cabling; fit dust caps to unused trunk ports at all times.❗Backbone Topology Restriction Risk: MasterBus300 requires end termination resistor only on the final rack in the daisy chain. Adding duplicate terminators or omitting termination creates bus signal reflection and persistent communication jitter.❗ESD Dangers: Ungrounded handling exposes MasterBus differential transceiver and slave CPU logic traces to static discharge from dry control room air. Field records show unprotected handling burns backbone communication circuits; full boiler/turbine unit downtime labor cost exceeds $2,120. Remediation: Place anti-static mat under the Advant rack, wear grounded wrist strap, touch bare rack chassis ground for 3 seconds before handling the submodule.

4-step replacement guide

1. Pre-install: Execute full rack lockout/tagout of 24VDC auxiliary power. Photograph D-SUB MasterBus trunk wiring layout and rack node address mapping table from the old unit; record active bus topology termination layout in Advant Master engineering software.
2. Removal: Unlatch rack slide retention clip, slide the old submodule vertically out of the rack slot, disconnect D-SUB MasterBus trunk cable and store the unit in static-safe sleeve.
3. Install: Align mechanical key tabs of the new unit with the rack slot, fully insert the submodule and lock the retention clip; reconnect D-SUB MasterBus trunk cable to matching pin positions and verify correct end-of-line termination resistor placement.
4. Power-on Test: Restore rack 24VDC auxiliary power first; verify front BUS RUN LED illuminates steady green, scan all remote rack slave nodes to confirm full cyclic process data exchange before enabling automatic closed-loop DCS control.

FAQ (Frequently Asked Questions)

Q: Can this backbus submodule be hot-swapped while the Advant Master rack remains powered?A: No. The MasterBus300 backbone and rack backplane stay energized with auxiliary power active. Live extraction creates destructive voltage transients that corrupt controller process image memory and permanently damage backbus interface hardware. Complete rack power isolation is required for replacement.Q: Does this legacy submodule carry original OEM factory warranty when purchased as new surplus?A: ABB original factory warranty expired decades ago at official product end-of-life. All surplus and refurbished inventory passes full in-house bench QA testing and carries a 12-month internal stock replacement warranty, limited to manufacturing defects detected during validation testing.Q: Can CI541V1 serve as a functional replacement for the unit?A: No functional compatibility. CI541V1 is a Profibus DP master submodule for CEX expansion bus on AC450 DCS; is dedicated MasterBus300 backbone slave hardware for Advant Master racks, with zero shared bus protocol or mechanical compatibility.Q: What minimum CPU firmware version enables full buffered slave processing support?A: Advant Master controller firmware v3.8.2 or newer. Older firmware does not offload backbone data to the slave core, retaining full bus processing load on the main CPU and causing slow control scan cycles under heavy I/O traffic.Q: Will MasterBus rack node address and topology settings persist after submodule replacement?A: All backbone bus configuration data resides in the CPU non-volatile memory, no parameters stored locally on the itself. No reconfiguration of node addresses or termination is required post-swap, only a full bus scan verification.Q: Is the submodule compatible with modern AC800M / System 800xA DCS racks?A: No. It uses proprietary MasterBus300 backbus unique to legacy Advant Master hardware, with zero electrical and mechanical compatibility with S800 Profibus distributed I/O rack architecture used for 800xA platforms.Q: Can Profibus DP or DeviceNet field devices be connected directly to this module’s D-SUB port?A: No. exclusively implements MasterBus300 inter-rack backbone protocol; it cannot interface with standard industrial fieldbus physical layers like Profibus DP, DeviceNet or Modbus. Field device communication requires separate CI54x series fieldbus submodules.
